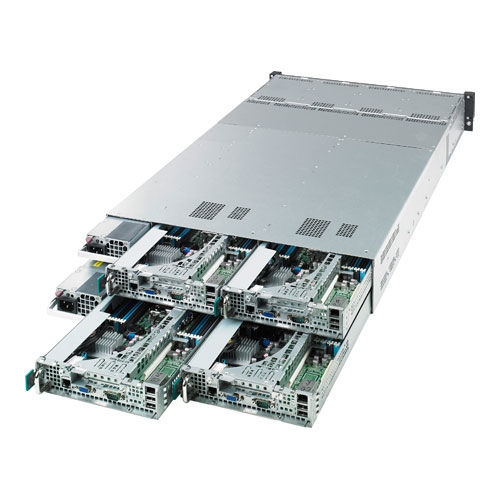

ASUS RS726Q-E7/RS12 server barebone Intel® C602 LGA 2011 (Socket R) Rack (2U)
Brand: ASUS · SKU: RS726Q-E7/RS12 · MPN: RS726Q-E7/RS12 · Category: Servers
ASUS RS726Q-E7/RS12, Intel® C602, LGA 2011 (Socket R), Intel, Intel® Xeon®, E5-2600, DDR3-SDRAM
Specifications
| Depth | 750 mm |
|---|---|
| Width | 444 mm |
| Height | 87 mm |
| Safety | CE, EN55022 |
| Weight | 25 kg |
| RAID levels | 0, 1, 5, 10 |
| Chassis type | Rack (2U) |
| Ethernet LAN | Yes |
| Power supply | 1620 W |
| Graphics card | AST2300 |
| LAN controller | Intel® 82574L |
| AC input voltage | 100 - 240 V |
| Bundled software | ASWM 2.0 |
| Processor family | Intel |
| Processor socket | LGA 2011 (Socket R) |
| Hot-swap HDD bays | Yes |
| Intel Xeon series | E5-2600 |
| AC input frequency | 50 - 60 Hz |
| Motherboard chipset | Intel® C602 |
| Graphics card family | Aspeed |
| Maximum RDIMM memory | 512 GB |
| Maximum UDIMM memory | 128 GB |
| Number of DIMM slots | 16 |
| PCI Express x4 slots | 1 |
| Warranty | 3-Year Warranty |
| Weight | 25 kg |
| Dimensions | 444 mm x 750 mm x 87 mm |
Product Description
Extreme High Density Computing Capability The RS726Q-E7/RS12 supports 96 cores in a 2U chassis and 16 DIMM slots for up to 512GB R-DIMM memory per node, delivering outstanding performance and extreme computing density. Massive Storage Capacity Three hot-swappable 3.5” hard drives per node in SATA 3Gb/s provide large amounts of high speed storage for all professional applications. High Power Efficiency Built with 1+1 redundant 1620W 80+ Platinum power supplies, the RS726Q-E7/RS12 offers enhanced efficiency for HPC applications. The PSU hot-swap design allows the server to keep working even if one power supply requires maintenance. Extreme Interconnection Speed for HPC Applications Onboard InfiniBand™ FDR (56Gb/s) makes the RS726Q-E7/RS12 highly available for HPC applications with high bandwidth and low latency. Modular Design for Independent Maintenance The RS726Q-E7/RS12 utilizes several considerate designs for easy maintenance: hot-swappable hard drives, fans and power supplies, plus hot-pluggable nodes for effortless online service and replacement. Each node has its own front panel for the convenience of separate operation and caretaking. Comprehensive RAID Optional ASUS RAID PIKE upgrade kits are supported. With SAS/SATA 6G PIKE card, users can upgrade the server from SATA to SAS storage by simply re-connecting the cable from the onboard SATA to the PIKE riser SAS port, affording greater flexibility. Complete Server Remote Management By default web GUI ASMB6-iKVM module, users can have full control of the server with out-of-band server-based management (IPMI 2.0 standard) and 24x7 real-time remote monitoring. ASWM Enterprise software provides one-to-multiple centralized management, including BIOS flashing, remote control, power control and asset management, all through a user-friendly interface.
Key Features
ASUS RS726Q-E7/RS12. Motherboard chipset: Intel® C602, Processor socket: LGA 2011 (Socket R), Processor family: Intel. Supported memory types: DDR3-SDRAM, Supported DIMM module capacities: 16GB, 1GB, 2GB, 32GB, 4GB, 8GB, Maximum internal memory: 512 GB. Storage drive sizes supported: 3.5", Supported storage drive interfaces: Serial Attached SCSI (SAS), Serial ATA II, Serial ATA III, RAID levels: 0, 1, 5, 10. Maximum graphics card memory: 16 MB. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, LAN controller: Intel® 82574L
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS RS726Q-E7/RS12 server barebone Intel® C602 LGA 2011 (Socket R) Rack (2U) (RS726Q-E7/RS12) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS RS726Q-E7/RS12 server barebone Intel® C602 LGA 2011 (Socket R) Rack (2U) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS RS726Q-E7/RS12 server barebone Intel® C602 LGA 2011 (Socket R) Rack (2U) compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the RS726Q-E7/RS12.
