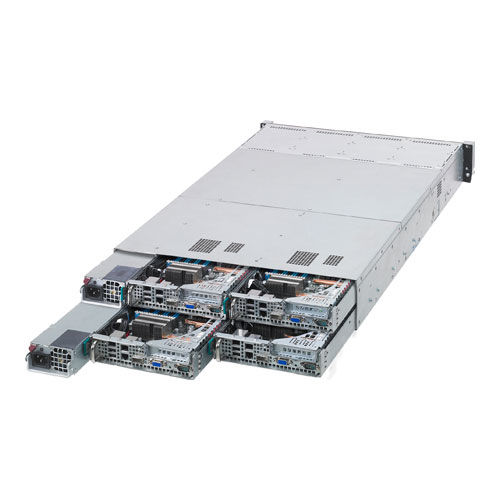

ASUS RS724QA-E6/RS12 server barebone AMD SR5670 Socket G34 Rack (2U)
Brand: ASUS · SKU: RS724QA-E6/RS12 · MPN: RS724QA-E6/RS12 · Category: Servers
ASUS RS724QA-E6/RS12, AMD SR5670, Socket G34, AMD, AMD Opteron, 6100, 6200, DDR3-SDRAM
Specifications
| ECC | Yes |
|---|---|
| Depth | 750 mm |
| Width | 444 mm |
| Height | 87 mm |
| Weight | 30 kg |
| PCI slots | 1 |
| RAID levels | 0, 1, 5 |
| Chassis type | Rack (2U) |
| Ethernet LAN | Yes |
| Power supply | 1620 W |
| Graphics card | AST2050 |
| LAN controller | Intel® 82574L |
| AC input voltage | 100 - 240 V |
| Processor family | AMD |
| Processor socket | Socket G34 |
| Hot-swap HDD bays | Yes |
| AC input frequency | 50 - 60 Hz |
| AMD Opteron series | 6100, 6200 |
| Motherboard chipset | AMD SR5670 |
| Graphics card family | Aspeed |
| Maximum RDIMM memory | 256 GB |
| Maximum UDIMM memory | 64 GB |
| Number of DIMM slots | 16 |
| Serial ports quantity | 1 |
| Warranty | 3-Year Warranty |
| Weight | 30 kg |
| Dimensions | 444 mm x 750 mm x 87 mm |
Product Description
Extreme Computing Density The ASUS RS724QA-E6/RS12 supports 96 cores in the 2U chassis and 16 DIMM slots up to 256GB memory capacity per node, delivering outstanding performance and extreme computing density. The server has four nodes in the 2U space, with 96 computing cores and 64 DIMM slots in total. It is also ready for the next generation 16/12/8 core AMD CPU. Intelligent Power Management Built with 1600W 80Plus (Gold Level) redundant power supply, the RS724QA-E6/RS12 enables 88% power efficiency for AC-DC conversion and allows auto-switch between 1+1 and 2+0 power supply mode, providing dual 1600W power supply in 1+1 mode to the maximum for enterprise applications, or one 3200W power supply in 2+0 mode to the maximum for HPC. In addition, the load balancing function allows two power supplies to undertake the work loading. High Speed Interconnection for HPC Applications Built with onboard Infiniband QDR (40Gb/s) with QFSP port, the RS724QA-E6/RS12 is highly available for HPC applications with high transfer rate and low latency. Easy Maintenance with Considerate Mechanism The RS724QA-E6/RS12 provides several considerate designs for easy maintenance: hot swappable HDD, fans and power supply, even hot pluggable node for convenient online service and replacement; and there is individual front panel for each node for separate operations. SAS 2.0 (6G) Storage Technology Supported (Optional) The RS724QA-E6/RS12 supports optional ASUS PIKE upgrade kit, with only a PIKE riser card and a PIKE card, the server is upgraded from SATA storage to SAS storage. It’s so easy and cost-effective! Real-Time Server Remote Management Optional Web GUI ASMB4-iKVM upgrade kit enables full control to server with function keys and remote server screen. Meanwhile, ASWM software provides easy deployment and management with user-friendly interface and delivers centralized management, asset management, notification mechanism and integrated BMC BIOS update. ASWM Enterprise Supported In order to provide easy deployment and management for customers, the RS724QA-E6/RS12 is bundled with ASUS exclusive ASWM enterprise management software. Now you can have an effective tool with user-friendly interface to control the servers remotely.
Key Features
ASUS RS724QA-E6/RS12. Motherboard chipset: AMD SR5670, Processor socket: Socket G34, Processor family: AMD. Supported memory types: DDR3-SDRAM, Supported DIMM module capacities: 16GB, 1GB, 2GB, 4GB, 8GB, Maximum internal memory: 256 GB. Storage drive sizes supported: 3.5", Supported storage drive interfaces: Serial ATA II, RAID levels: 0, 1, 5. Maximum graphics card memory: 8 MB. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, LAN controller: Intel® 82574L
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS RS724QA-E6/RS12 server barebone AMD SR5670 Socket G34 Rack (2U) (RS724QA-E6/RS12) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS RS724QA-E6/RS12 server barebone AMD SR5670 Socket G34 Rack (2U) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS RS724QA-E6/RS12 server barebone AMD SR5670 Socket G34 Rack (2U) compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the RS724QA-E6/RS12.
