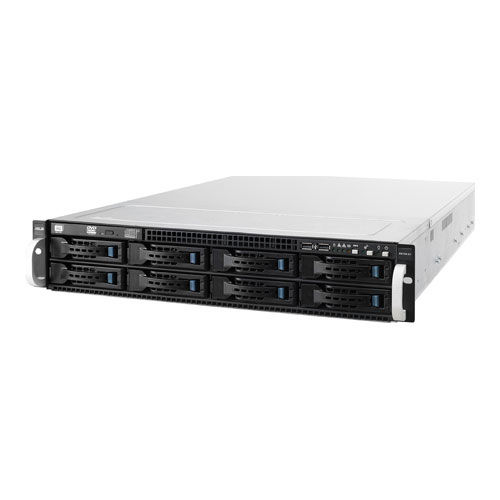

ASUS RS720-X7/RS8 server barebone Intel® C602 LGA 2011 (Socket R) Rack (2U)
Brand: ASUS · SKU: RS720-X7/RS8 · MPN: RS720-X7/RS8 · Category: Servers
ASUS RS720-X7/RS8, Intel® C602, LGA 2011 (Socket R), Intel, Intel® Xeon®, E5-2600, DDR3-SDRAM
Specifications
| Depth | 615 mm |
|---|---|
| Width | 444 mm |
| Height | 87 mm |
| Safety | CE, EN55022 |
| Weight | 22 kg |
| RAID levels | 0, 1, 5, 10 |
| Chassis type | Rack (2U) |
| Ethernet LAN | Yes |
| Power supply | 770 W |
| Graphics card | AST2300 |
| LAN controller | Intel® 82574L |
| Processor family | Intel |
| Processor socket | LGA 2011 (Socket R) |
| Hot-swap HDD bays | Yes |
| Intel Xeon series | E5-2600 |
| Motherboard chipset | Intel® C602 |
| PS/2 ports quantity | 2 |
| Graphics card family | Aspeed |
| Maximum RDIMM memory | 384 GB |
| Maximum UDIMM memory | 96 GB |
| Number of DIMM slots | 12 |
| Serial ports quantity | 2 |
| Supported memory types | DDR3-SDRAM |
| USB 2.0 ports quantity | 5 |
| Warranty | 3-Year Warranty |
| Weight | 22 kg |
| Dimensions | 444 mm x 615 mm x 87 mm |
Product Description
Mass storage capacity in a 2U chassis The RS720-X7/RS8 features eight SAS/SATA 2.5”/3.5” hard drive bays and supports up to 24TB storage capacity in 2U. Its hot-swap design provides 24/7 non-stop service, high availability, and easy upgrades. Up to 92% power efficiency Equipped with 1+1 redundant 770W 80 PLUS Gold power supplies, the RS720-X7/RS8 saves users money on energy costs while maintaining strict environmental protection standards. The two power supplies also utilize a hot-swap design that allows work to continue even if one of them requires maintenance or replacement. Extensive expandability The expansion slot design includes up to one PCI Express 3.0 x16 slot and six PCI Express 3.0 x8 slots, meeting future expansion demands with ease. Quad LAN support Four LAN ports offer higher networking bandwidth with load-balancing and fault-tolerance functions. The RS720-X7/RS8 supports ASUS-made and most other available 10Gb/s LAN cards for the fastest networking currently possible. Intelligent thermal design The front-parallel placement of the CPU and memory guides smooth airflow throughout the chassis, while smart fan control technology adjusts fan speeds automatically based on system load. Flexible RAID The RS720-X7/RS8 supports optional ASUS RAID PIKE upgrade kits. With these, users can integrate server capabilities with greater data security and quickly upgrade storage from SATA to SAS. Built-in remote server management The web and graphical interface-based ASMB6-iKVM module lets users fully control the server with out-of-band management using the IPMI 2.0 standard for real time remote monitoring. Additionally, ASWM Enterprise provides one-to-multiple centralized management, including BIOS flashing, remote control, power control, and asset management, all via a user-friendly interface.
Key Features
ASUS RS720-X7/RS8. Motherboard chipset: Intel® C602, Processor socket: LGA 2011 (Socket R), Processor family: Intel. Supported memory types: DDR3-SDRAM, Maximum internal memory: 384 GB, Maximum RDIMM memory: 384 GB. Storage drive sizes supported: 3.5", Supported storage drive interfaces: Serial Attached SCSI (SAS), Serial ATA II, Serial ATA III, RAID levels: 0, 1, 5, 10. Maximum graphics card memory: 16 MB. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, LAN controller: Intel® 82574L
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS RS720-X7/RS8 server barebone Intel® C602 LGA 2011 (Socket R) Rack (2U) (RS720-X7/RS8) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS RS720-X7/RS8 server barebone Intel® C602 LGA 2011 (Socket R) Rack (2U) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS RS720-X7/RS8 server barebone Intel® C602 LGA 2011 (Socket R) Rack (2U) compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the RS720-X7/RS8.
