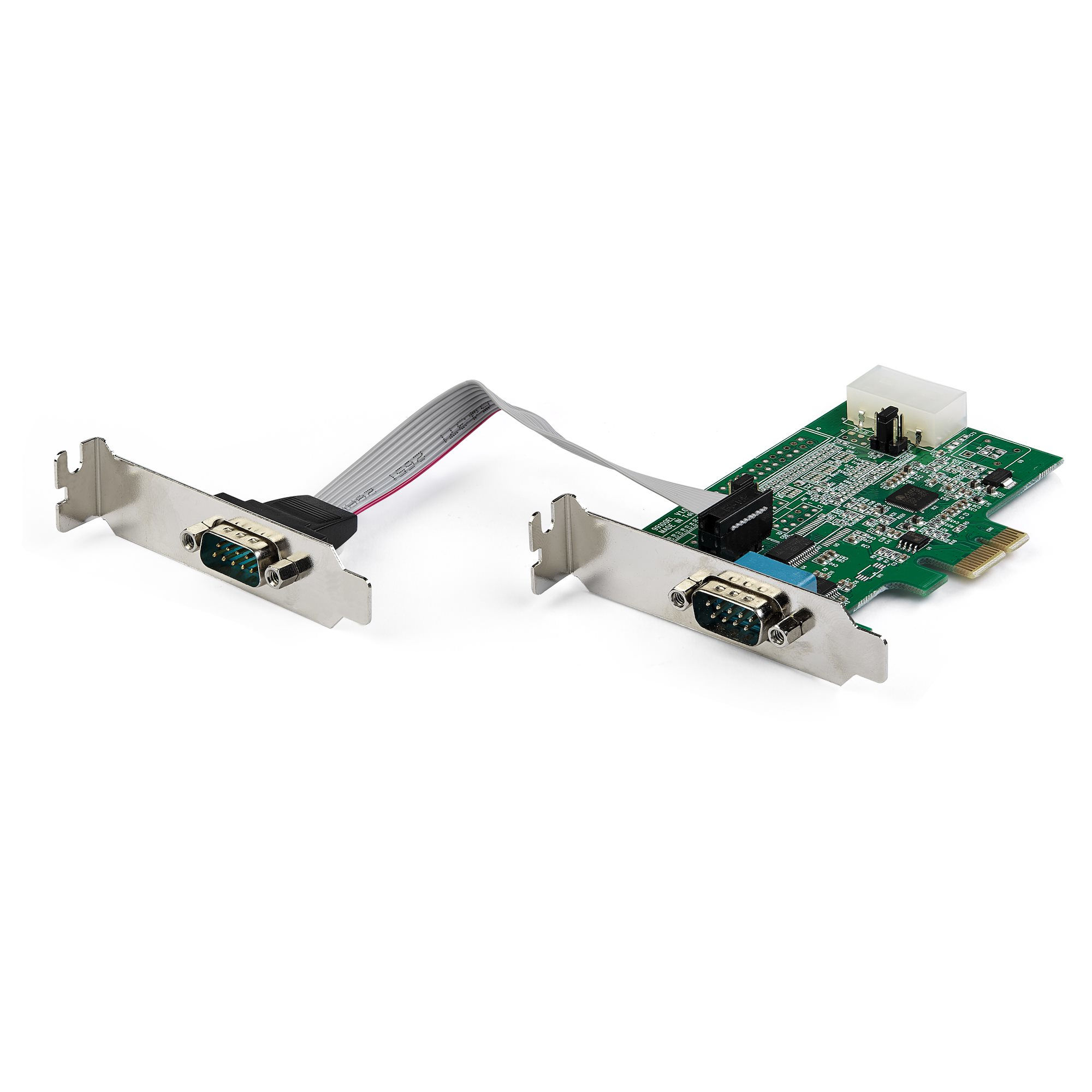

StarTech.com 2-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows & Linux
Brand: StarTech.com · SKU: STA-PEX2S953LP · MPN: 2-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows & Linux · Category: Components
StarTech.com 2-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows & Linux, Mini PCI Express, Serial, PCIe 1.1, RS-232, 222366 h, CE, FCC
Specifications
| Depth | 98 mm |
|---|---|
| Width | 67 mm |
| Height | 18 mm |
| Manual | Yes |
| Weight | 55.6 g |
| Chipset | Asix AX99100 |
| Internal | Yes |
| Quantity | 1 |
| Baud rate | 921.6 Kbit/s |
| Data bits | 5, 6, 7, 8, 9 |
| Stop bits | 1, 1.5, 2 |
| Parity bit | Even, Mark, No, Odd, Space |
| Certification | CE, FCC |
| Package depth | 172 mm |
| Package width | 142 mm |
| Host interface | Mini PCI Express |
| Package height | 32 mm |
| Package weight | 146.4 g |
| Output interface | Serial |
| Flow Control type | No, RTS/CTS, XON/XOFF |
| Serial interface type | RS-232 |
| Serial ports quantity | 2 |
| Compliance certificates | RoHS |
| Expansion card standard | PCIe 1.1 |
| Warranty | 3-Year Warranty |
| Weight | 55.6 g |
| Dimensions | 67 mm x 98 mm x 18 mm |
Product Description
PCI Express to Serial Adapter | 921.4Kbps | Windows® and Linux® Compatible This RS232 Serial Adapter Card lets you add two RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.4Kbps. Maximum Compatibility With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor. Experience Optimal Technology This PCIe to serial adapter supports the following features: • Compatible with industry standard 16950 UART • Supports max baud rate of up-to 921.4Kbps • Provides 5/12V power output on Pin 9 when external power is connected • 256-byte depth FIFO per transmitter and receiver • Supports 9, 8, 7, 6, 5 data bits • Asix AX99100 chipset • PCI Express 1.1 compliant PEX2S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support. The StarTech.com Advantage
Key Features
StarTech.com 2-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows & Linux. Host interface: Mini PCI Express, Output interface: Serial, Expansion card standard: PCIe 1.1. Mean time between failures (MTBF): 222366 h, Certification: CE, FCC. Chipset: Asix AX99100, Baud rate: 921.6 Kbit/s, FIFO (First In, First Out): 256 B. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows.... Width: 67 mm, Depth: 98 mm, Height: 18 mm
Technical Deployment Advisory
Target Personnel
Field Engineers
Infrastructure Fit
Server Fleet Uniformity
"As a genuine StarTech.com component, the STA-PEX2S953LP ensures 100% compatibility for Server Fleet Uniformity. It is an essential part for Field Engineers tasked with hardware lifecycle maintenance."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com 2-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows & Linux (STA-PEX2S953LP) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com 2-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows & Linux includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com 2-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows & Linux compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the STA-PEX2S953LP.
