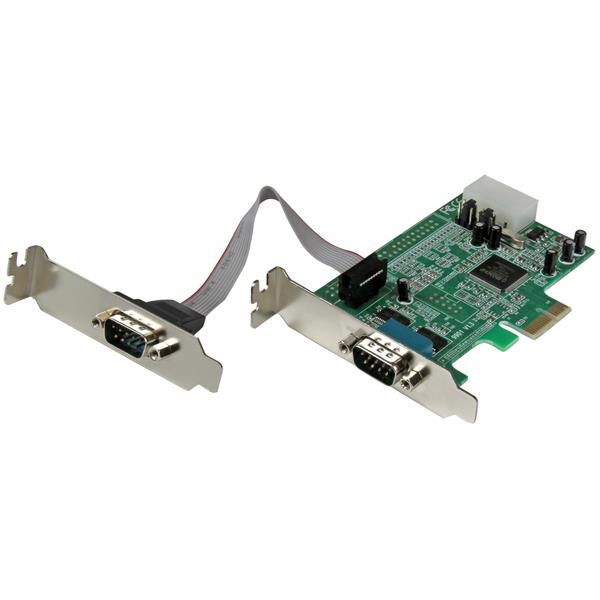

StarTech.com 2-Port Low Profile Native RS232 PCI Express Serial Adapter Card, 16550 UART, PCIe to Dual Serial DB9, Windows & Linux, TAA - Replaced by PEX2S953LP
Brand: StarTech.com · SKU: PEX2S553LP · MPN: PEX2S553LP · Category: Components
StarTech.com 2-Port Low Profile Native RS232 PCI Express Serial Adapter Card, 16550 UART, PCIe to Dual Serial DB9, Windows & Linux, TAA - Replaced by PEX2S953LP, PCIe, Serial, PCIe 1.1, RS-232, Green, ASIX - MCS9922CV-AA
Specifications
| Depth | 105 mm |
|---|---|
| Width | 80 mm |
| Height | 20 mm |
| Manual | Yes |
| Weight | 63.5 g |
| Chipset | ASIX - MCS9922CV-AA |
| Internal | Yes |
| Baud rate | 460.8 Kbit/s |
| Package depth | 173 mm |
| Package width | 143 mm |
| Host interface | PCIe |
| Package height | 32 mm |
| Package weight | 180 g |
| Product colour | Green |
| Cables included | Serial |
| Drivers included | Yes |
| Output interface | Serial |
| Flow Control type | DTR/DSR, RTS/CTS, XON/XOFF |
| Serial interface type | RS-232 |
| Serial ports quantity | 2 |
| Compliance certificates | CE, RoHS |
| Expansion card standard | PCIe 1.1 |
| Master (outer) case width | 363 mm |
| Storage temperature (T-T) | -20 - 100 °C |
| Warranty | 3-Year Warranty |
| Weight | 63.5 g |
| Dimensions | 80 mm x 105 mm x 20 mm |
Product Description
Add 2 high-speed RS-232 serial ports to your low profile/small form factor computer with a PCI Express expansion slot The PEX2S553LP low profile/half-height PCI Express Serial Card turns a PCI Express slot into two RS232 (DB9) serial connections. The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards. The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows®; and Linux Kernel 2.6.11 to 4.11.x, and ships with a low profile/half-height bracket installed but includes an optional full profile bracket that lets you add 2 serial ports to virtually any computer (regardless of the case form factor). This product is a replacement for our PEX2S552LP card. Backed by a StarTech.com 2-year warranty and free lifetime technical support. The StarTech.com Advantage
Key Features
StarTech.com 2-Port Low Profile Native RS232 PCI Express Serial Adapter Card, 16550 UART, PCIe to Dual Serial DB9, Windows & Linux, TAA - Replaced by PEX2S953LP. Host interface: PCIe, Output interface: Serial, Expansion card standard: PCIe 1.1. Product colour: Green. Chipset: ASIX - MCS9922CV-AA, Baud rate: 460.8 Kbit/s, FIFO (First In, First Out): 128 B. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard,..., Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows.... Width: 80 mm, Depth: 105 mm, Height: 20 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this StarTech.com 2-Port Low Profile Native RS232 PCI Express Serial Adapter Card, 16550 UART, PCIe to Dual Serial DB9, Windows & Linux, TAA - Replaced by PEX2S953LP (PEX2S553LP) is 100% genuine StarTech.com hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This StarTech.com 2-Port Low Profile Native RS232 PCI Express Serial Adapter Card, 16550 UART, PCIe to Dual Serial DB9, Windows & Linux, TAA - Replaced by PEX2S953LP includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the StarTech.com 2-Port Low Profile Native RS232 PCI Express Serial Adapter Card, 16550 UART, PCIe to Dual Serial DB9, Windows & Linux, TAA - Replaced by PEX2S953LP compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the PEX2S553LP.
