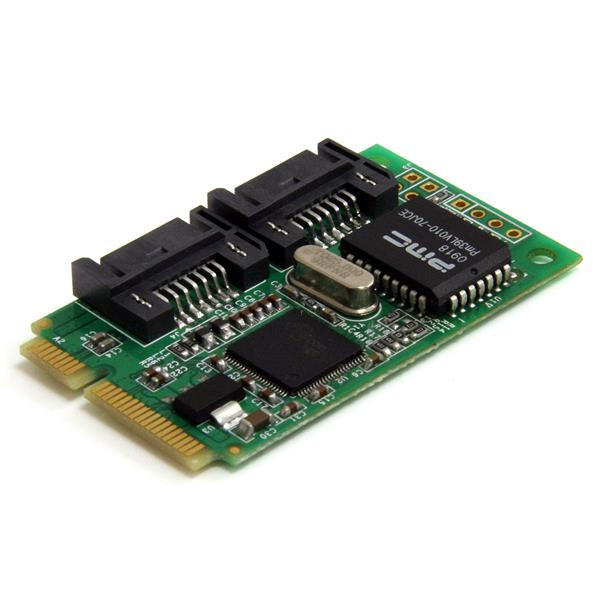

StarTech.com 2 Port Mini PCI Express Internal SATA II Controller Card
Brand: StarTech.com · SKU: MPEXSATA22I · MPN: MPEXSATA22I · Category: Components
StarTech.com 2 Port Mini PCI Express Internal SATA II Controller Card, Mini PCI Express, SATA, CE, Silicon Image - SiI3132, 3 Gbit/s, 48 bit. StarTech.com 2 Port Mini PCI Express Internal SATA II Controller Card (part number MPEXSATA22I) is an enterprise components product available from Server Tech Central. Key specifications include depth 50 mm, width 30 mm, height 4 mm, manual Yes, weight 7.8 g, chipset Silicon Image - SiI3132, hot-swap Yes, internal Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 50 mm |
|---|---|
| Width | 30 mm |
| Height | 4 mm |
| Manual | Yes |
| Weight | 7.8 g |
| Chipset | Silicon Image - SiI3132 |
| Hot-swap | Yes |
| Internal | Yes |
| RAID levels | 0, 1, BIG, JBOD |
| Certification | CE |
| Package depth | 210 mm |
| Package width | 145 mm |
| Plug and Play | Yes |
| SATA revision | 2.0 |
| Host interface | Mini PCI Express |
| Package height | 40 mm |
| Package weight | 131 g |
| Cables included | SATA |
| Port multiplier | No |
| Drivers included | Yes |
| Output interface | SATA |
| Compliance certificates | RoHS |
| Data transfer rate (max) | 3 Gbit/s |
| Storage temperature (T-T) | -65 - 150 °C |
| Warranty | 3-Year Warranty |
| Weight | 7.8 g |
| Dimensions | 30 mm x 50 mm x 4 mm |
Product Description
The MPEXSATA22I 2-Port Mini PCIe to SATA Controller Card lets you add 2 SATA 3Gbps connectors to a small form factor or embedded system, through a Mini PCI Express (Mini Card) expansion slot. Perfect for upgrading the capabilities of a system that would typically have a very limited number of internal ports, the Mini PCIe to SATA controller card is compatible with all types of Serial ATA devices, including hard drives (HDDs), Solid State Drives (SSD), and optical drives (CD/DVD/BD). A versatile solution for internal storage applications, this PCI Express to SATA controller card features built-in RAID support (JBOD, BIG, RAID 0, RAID 1), and is backed by a StarTech.com 2-year warranty and free lifetime technical support. The StarTech.com Advantage - Maximizes space-efficiency by adding two independent SATA ports through Mini PCI Express, an ideal solution for embedded systems and very small form factor systems - 48-bit LBA support for large capacity hard drives and built-in RAID for either performance or redundancy - Backed by a StarTech.com 2-year warranty and free lifetime technical support
Key Features
StarTech.com 2 Port Mini PCI Express Internal SATA II Controller Card. Host interface: Mini PCI Express, Output interface: SATA. Certification: CE. Chipset: Silicon Image - SiI3132, Data transfer rate (max): 3 Gbit/s, Logical block addressing (LBA) support: 48 bit. Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64,..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7.... Width: 30 mm, Depth: 50 mm, Height: 4 mm
