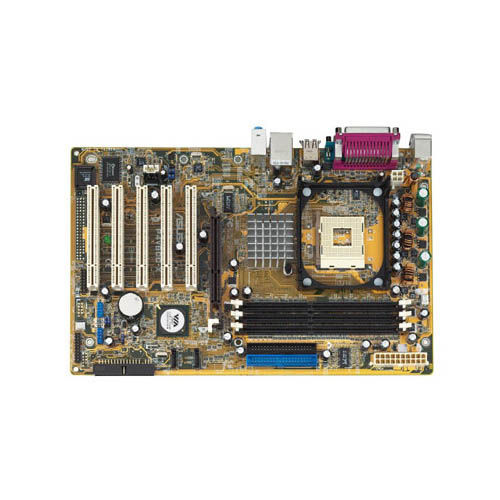

ASUS P4V800-X motherboard Socket 478 ATX
Brand: ASUS · SKU: P4V800-X · MPN: P4V800-X · Category: Components
ASUS P4V800-X, Intel, Socket 478, Intel® Celeron®, Intel® Pentium® 4, 400,533,800 MHz, DDR-SDRAM, 3 GB. ASUS P4V800-X motherboard Socket 478 ATX (part number P4V800-X) is an enterprise components product available from Server Tech Central. Key specifications include depth 193 mm, width 305 mm, bios type AMI, pci slots 5, raid levels 0, 1, cooling type Passive, ethernet lan Yes, flash memory 4 MB. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 193 mm |
|---|---|
| Width | 305 mm |
| BIOS type | AMI |
| PCI slots | 5 |
| RAID levels | 0, 1 |
| Cooling type | Passive |
| Ethernet LAN | Yes |
| Flash memory | 4 MB |
| Component for | PC |
| Microphone in | Yes |
| CD/AUX audio in | Yes |
| S/PDIF out port | Yes |
| Processor socket | Socket 478 |
| Headphone outputs | 1 |
| Memory slots type | DIMM |
| Power source type | ATX |
| ECC сompatibility | Non-ECC |
| USB 2.0 connectors | 2 |
| GAME/MIDI connector | Yes |
| PS/2 ports quantity | 2 |
| Audio output channels | 5.1 channels |
| Serial ports quantity | 1 |
| Number of memory slots | 3 |
| Processor manufacturer | Intel |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 193 mm |
Product Description
VIA PT800 chipset Leveraging the VIA PT800 chipset to support 3.2GHz+ P4 CPUs on 800MHz FSB, DDR400 memory, Intel Hyper-Threading Technology and a full-range of advanced features, the P4V800-X really delivers a high-value solution. DDR400 DDR400 (PC3200), the latest and fastest DDR memory standard, supports bandwidth up to 3.2GB/s to provide enhanced system performance. RAID function The VIA VT8237 south bridge enables users to build Maximum 2 SATA hard disk as an RAID0, 1 array. And the graphical user interface provides an easy way to configure and manage disk drives or disk arrays connected. AGP8X AGP8X (AGP 3.0) is the next generation VGA interface specification that enables enhanced graphics performance with high bandwidth up to 2.12GB/s. Serial ATA ports Serial ATA is the next generation ATA specification that provides scalable performance for today and tomorrow. With up to 150MB/s data transfer rate, Serial ATA is faster than current Parallel ATA, while providing 100% software compatibility. SoundMAX Digital Audio System The ADI AD1980 AC'97 audio CODEC is on-board to provide 6-channel audio playback for 5.1 surround sound and over 90Db dynamic range. CrashFree BIOS 2 Whenever BIOS gets corrupted, ASUS CrashFree BIOS 2 allows users to reboot the computer and perform an smart auto-recovery procedure through the motherboard support CD. Integrated 10/100 LAN The on-board LAN controller is a highly integrated Fast Ethernet controller. It is enhanced with an ACPI management function to provide efficient power management for advanced operating systems. 8 USB 2.0 ports supports USB 2.0 is the latest connectivity standard for next generation components and peripherals. Backwards compatible with current USB 1.1 peripherals, USB 2.0 delivers transfer speeds up to 40 times faster at 480Mb/s, for easy connectivity and ultra-fast data transfers.
Key Features
ASUS P4V800-X. Processor manufacturer: Intel, Processor socket: Socket 478, Compatible processor series: Intel® Celeron®, Intel® Pentium® 4. Supported memory types: DDR-SDRAM, Maximum internal memory: 3 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA, RAID levels: 0, 1. Ethernet interface type: Fast Ethernet. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: VIA
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS P4V800-X motherboard Socket 478 ATX (P4V800-X) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS P4V800-X motherboard Socket 478 ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS P4V800-X motherboard Socket 478 ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the P4V800-X.
