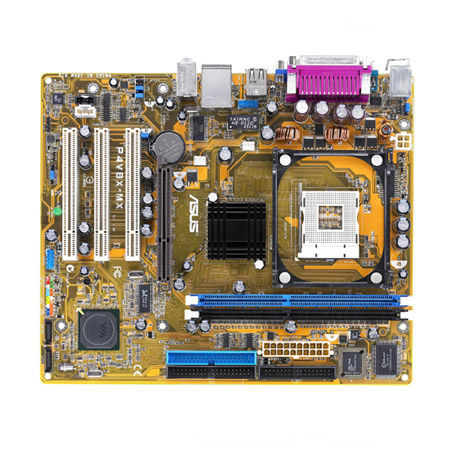

ASUS P4V8X-MX PE4 Socket478 FSB800 mATX VIA P4M800 micro ATX
Brand: ASUS · SKU: 90-M8L1E0-G0EAYZ · MPN: 90-M8L1E0-G0EAYZ · Category: Components
ASUS P4V8X-MX PE4 Socket478 FSB800 mATX, Intel, Socket 478, 2 GB, 10/100 Mbps LAN + VIA 6103 PHY, micro ATX, VIA P4M800. ASUS P4V8X-MX PE4 Socket478 FSB800 mATX VIA P4M800 micro ATX (part number 90-M8L1E0-G0EAYZ) is an enterprise components product available from Server Tech Central. Key specifications include depth 196 mm, width 245 mm, audio chip C-Media CMI9761A, cd/aux audio in Yes, expansion slots 1 x AGP8X (1.5V only) 3 x PCI, bios memory size 32 Mbit, bundled software ASUS PC Probe anti-virus (OEM ver) ASUS LiveUpdate Utility, processor socket Socket 478. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 196 mm |
|---|---|
| Width | 245 mm |
| Audio chip | C-Media CMI9761A |
| CD/AUX audio in | Yes |
| Expansion slots | 1 x AGP8X (1.5V only) 3 x PCI |
| BIOS memory size | 32 Mbit |
| Bundled software | ASUS PC Probe anti-virus (OEM ver) ASUS LiveUpdate Utility |
| Processor socket | Socket 478 |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| USB 2.0 connectors | 2 |
| Graphics controller | UniChrome Pro 3D / 2D Graphics & Video |
| Motherboard chipset | VIA P4M800 |
| Networking features | 10/100 Mbps LAN + VIA 6103 PHY |
| PS/2 ports quantity | 2 |
| RAID controller type | VIA 8237R PLUS |
| S/PDIF out connector | Yes |
| Serial ports quantity | 1 |
| Manageability features | WfM 2.0,DMI 2.0,WOL by PME,WOR by PME |
| Number of memory slots | 2 |
| Processor manufacturer | Intel |
| USB 2.0 ports quantity | 4 |
| Maximum internal memory | 2 GB |
| Warranty | 3-Year Warranty |
| Dimensions | 245 mm x 196 mm |
Product Description
The best value P4 solution for SATA support Empowered by integrated graphics and Intel® Hyper-Threading Technology, P4V8X-MX provides multiple and mainstream choices including 2xSATA, 3xPCI, 8xUSB, and RAID function based on the VIA P4M800 and 8237R PLUS chipset and unique ASUS features such as C.P.R., CrashFree BIOS2, EZ Flash, MyLogo2 and also offers 10/100Mbps LAN, SATA RAID surpport. Intel Hyper-Threading Technology support Leveraging the VIA P4M800 chipset to support P4 CPU on 800MHz FSB, Intel Hyper-Threading Technology,and a full-range of advanced features. Integrated Graphics The VIA P4M800 delivers powerful integrated 2D and 3D graphics performance for functionality and value. Serial ATA Serial ATA is the next generation ATA specification that provides scalable performance for today and tomorrow. With up to 150MB/s data transfer rate, Serial ATA is faster than current Parallel ATA, while providing software compatibility with the legacy Parallel ATA. RAID function The VIA VT8237R Plus south bridge enables users to build Maximum 2 SATA hard disk as an RAID0, 1 array. And the graphical user interface provides an easy way to configure and manage disk drives or disk arrays connected. Integrated 10/100 LAN The on-board LAN controller is a highly integrated Fast Ethernet controller. It is enhanced with an ACPI management function to provide efficient power management for advanced operating systems. C.P.R.(CPU Parameter Recall) When the system hangs due to overclocking failure, there is no need to open the case to clear CMOS data. Just simply restart the system, the BIOS would show the previous setting and then users can amend the CPU setting again. CrashFree BIOS2 The CrashFree BIOS 2 feature now includes the BIOS auto-recovery function in a support CD. Users can reboot their system through the support CD when a bootable disk is not available, and go through the simple BIOS auto-recovery process. ASUS motherboards now enable users to enjoy this protection feature without the need to pay for an optional ROM. ASUS EZ Flash With ASUS EZ Flash, you can update BIOS before entering operating system. No more DOS-based flash utility and bootable diskette required. ASUS MyLogo2 You can convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen.
Key Features
ASUS P4V8X-MX PE4 Socket478 FSB800 mATX. Processor manufacturer: Intel, Processor socket: Socket 478. Maximum internal memory: 2 GB. Networking features: 10/100 Mbps LAN + VIA 6103 PHY. Motherboard form factor: micro ATX, Motherboard chipset: VIA P4M800, Audio chip: C-Media CMI9761A. BIOS memory size: 32 Mbit
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS P4V8X-MX PE4 Socket478 FSB800 mATX VIA P4M800 micro ATX (90-M8L1E0-G0EAYZ) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS P4V8X-MX PE4 Socket478 FSB800 mATX VIA P4M800 micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS P4V8X-MX PE4 Socket478 FSB800 mATX VIA P4M800 micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90-M8L1E0-G0EAYZ.
