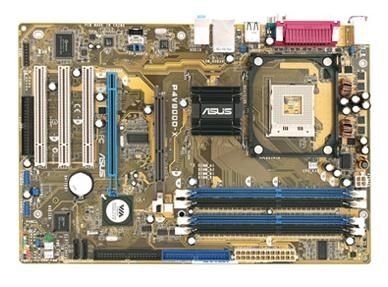

ASUS P4V800D-X Socket 478 ATX
Brand: ASUS · SKU: 90-M8LE80-G0EAYKZ · MPN: 90-M8LE80-G0EAYKZ · Category: Components
ASUS P4V800D-X, Intel, Socket 478, 4 GB, 0, 1, ATX, 5.1 channels. ASUS P4V800D-X Socket 478 ATX (part number 90-M8LE80-G0EAYKZ) is an enterprise components product available from Server Tech Central. Key specifications include depth 208 mm, width 305 mm, raid levels 0, 1, microphone in Yes, cd/aux audio in Yes, expansion slots - 1 x AGP 8X - 1 x PCI Express x16 (x4 mode only) - 3 x PCI, s/pdif out port Yes, bios memory size 32 Mbit. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 208 mm |
|---|---|
| Width | 305 mm |
| RAID levels | 0, 1 |
| Microphone in | Yes |
| CD/AUX audio in | Yes |
| Expansion slots | - 1 x AGP 8X - 1 x PCI Express x16 (x4 mode only) - 3 x PCI |
| S/PDIF out port | Yes |
| BIOS memory size | 32 Mbit |
| Bundled software | - Drivers - ASUS PC Probe - Anti-Virus Software (OEM Version) |
| Processor socket | Socket 478 |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| USB 2.0 connectors | 2 |
| PS/2 ports quantity | 2 |
| Audio output channels | 5.1 channels |
| Serial ports quantity | 1 |
| Manageability features | WfM 2.0,DMI 2.0,WOL by PME,WOR by PME |
| Number of memory slots | 4 |
| Processor manufacturer | Intel |
| USB 2.0 ports quantity | 4 |
| Maximum internal memory | 4 GB |
| Motherboard form factor | ATX |
| Parallel ports quantity | 1 |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 208 mm |
Product Description
Only VGA solution for AGP8X and PCI-E The ASUS P4V800D-X, supporting VIA PT880 Ultra/8237R+ chipsets, is comparable to the Intel 915PE/ICH7R-based boards. It is a great solution for high-end peripheral connection and robust processing power. The performance of the ASUS P4V800D-X, with 800MHz FSB and dual-channel DDR 400, rivals those of Intel 915-based solutions. The exclusive circuitry design further allows the next-generation Prescott CPU to run smoothly on a VIA platform.The ASUS P4V800D delivers the lastest technology and reliable performance at an incredible pice. Intel FSB800 and Hyper-Threading Technology Leveraging the VIA PT880 Ultra chipset to support 3.4 GH+ Intel P4 and next generation Prescott CPU on 800 MHz FSB, Intel Hyper-Threading technology, Dual channel 400 memory, the P4V800D-X delivers a full-value, high-performance solution for today's most demanding tasks. Dual-Channel DDR400 Dual-channel DDR technology doubles the bandwidth of your system memory and hence boost the system performance to out perform any memory existing solutions in the market. System bottlenecks are eliminated with balanced architecture and peak bandwidths up to 6.4GB/s. AGP8X AGP8X (AGP 3.0) is the next generation VGA interface specification that enables enhanced graphics performance with high bandwidth up to 2.12GB/s. RAID 0,1,JBOD The VIA 8237R+ south bridge enables users to build Maximum 2 SATA hard disk as an RAID 0, 1 array, and the graphical user interface of utility provides an easy way to configure and manage disk drives or disk arrays connected. PCI-Express PCI Express is the latest I/O interconnect technology that will replace the existing PCI. With a bus bandwidth 4 times higher than that of AGP 8X interface, PCI Express x16 bus performs much better than AGP 8X in applications such as 3D gaming. PCI Express x1 also outperforms PCI interface with its exceptional high bandwidth up to 500MB/s. The high speed PCI Express interface creates new usages on desktop PCs e.g., Gigabit LAN, 1394b, and high-speed RAID systems. Serial ATA ports Serial ATA is the next generation ATA specification that provides scalable performance for today and tomorrow. With up to 150MB/s data transfer rate, Serial ATA is faster than current Parallel ATA, while providing 100% software compatibility. S/PDIF-out on Back I/O Port The P4V800D's S/PDIF out function turns your computer into a high-end entertainment system with digital connectivity to powerful speaker systems. 6 Channel Audio & SoundMAX Digital Audio System The SoundMAX Digital Audio System is the industry's highest performance and most reliable audio solution for business perfessionals, audiophiles, musicians, and gamers. SoundMAX Digital Audio System can output 5.1 channel surround sound and features state-of-the-art DLS2 MIDI synthesizer with Yamaha DLSbyXG sound set, 5.1 Virtual TheaterTM and supports and major game audio technologies including Microsoft DirectXTM 8.0, Microsoft DirectSound 3D, A3D, MacroFX, ZoomFX, MultiDrive 5.1, A3D and Extreme AX. Integrated 10/100 LAN The on-board LAN controller is a highly integrated Fast Ethernet controller. It is enhanced with an ACPI management function to provide efficient power management for advanced operating systems. 8 USB 2.0 ports supports USB 2.0 is the latest connectivity standard for next generation components and peripherals. Backwards compatible with current USB 1.1 peripherals, USB 2.0 delivers transfer speeds up to 40 times faster at 480Mb/s, for easy connectivity and ultra-fast data transfers. ASIS Q-Fan Technology ASUS Q-Fan technology intelligently adjusts fan speeds according to system loading to ensure quiet, cool and efficient operation C.P.R.(CPU Parameter Recall) When the system hangs due to overclocking failure, there is no need to open the case to clear CMOS data. Just simply restart the system, the BIOS would show the previous setting and then users can amend the CPU setting again. ASUS EZ Flash With ASUS EZ Flash, you can update BIOS before entering operating system. No more DOS-based flash utility and bootable diskette required. CrashFree BIOS 2 Whenever BIOS gets corrupted, ASUS CrashFree BIOS 2 allows users to reboot the computer and perform an smart auto-recovery procedure through the motherboard support CD. Trend Micro™ PC-cillin 2002 anti-virus software Bonus! Free bundleTrend Micro™ PC-cillin 2002 anti-virus software (OEM version)
Key Features
ASUS P4V800D-X. Processor manufacturer: Intel, Processor socket: Socket 478. Maximum internal memory: 4 GB. RAID levels: 0, 1. Motherboard form factor: ATX, Audio output channels: 5.1 channels, Power source type: ATX. BIOS memory size: 32 Mbit
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS P4V800D-X Socket 478 ATX (90-M8LE80-G0EAYKZ) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS P4V800D-X Socket 478 ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS P4V800D-X Socket 478 ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90-M8LE80-G0EAYKZ.
