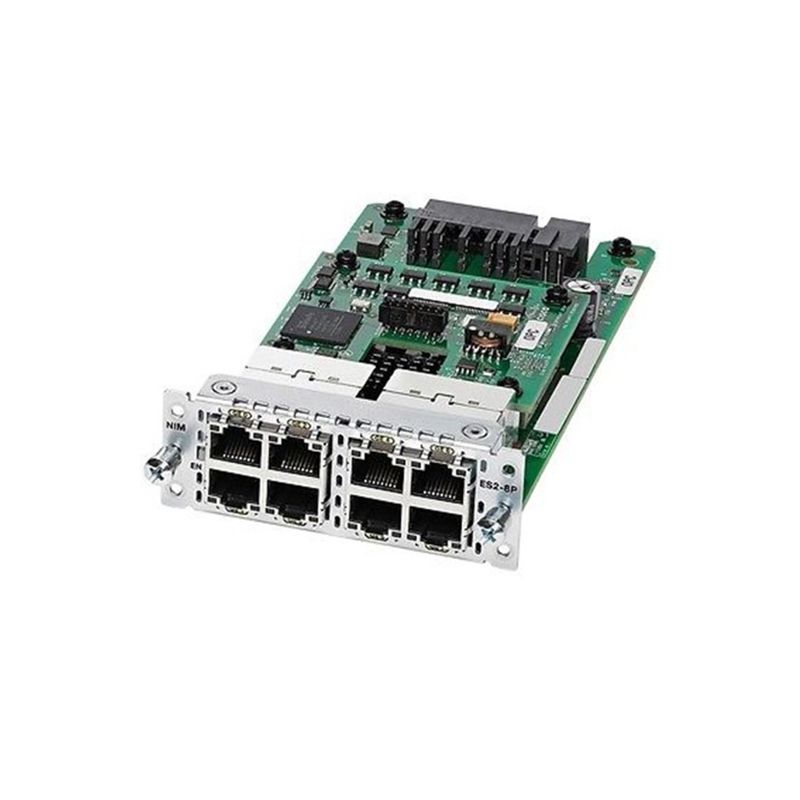

NIM-ES2-8-P, Cisco 4000 Series Router Switch Module, 8xGE PoE, Gigabit, NIM
Brand: Cisco · SKU: NIM-ES2-8-P · MPN: NIM-ES2-8-P · Category: Networking
8-port PoE/PoE+ Layer 2 Gigabit Ethernet LAN Switch NIM
Specifications
| Model | NIM-ES2-8-P |
|---|---|
| Description | 8-port PoE/PoE+ Layer 2 Gigabit Ethernet LAN Switch NIM |
| Form Factor | Single-wide NIM form factor |
| Manageability | SNMP and Telnet support for in-band management, CLI console for out-of-band, embedded RMON agent (history, statistics, alarms, events), SPAN port for mirroring, TFTP support for software upgrades, per-port LEDs for link and PoE status, crash file support, and show-interface capability. |
| IEEE Protocols | Gigabit Ethernet: IEEE 802.3, 10BASE-T, IEEE 802.3u, 100BASE-TX, 1000BASE-TX; IEEE 802.1d Spanning Tree; IEEE 802.1p CoS; IEEE 802.1q VLAN; IEEE 802.1X Security; IEEE 802.3x Full Duplex; IEEE 802.3af PoE |
| LED Indicators | Link status LED per port; PoE status LED per port |
| MIBs Supported | RFC 1213, IF MIB, RFC 2037 ENTITY MIB, CISCO-CDP-MIB, CISCO-IMAGE-MIB, CISCO-FLASH-MIB, OLD-CISCO-CHASSIS-MIB, CISCO-VTP-MIB, CISCO-HSRP-MIB, OLD-CISCO-TS-MIB, CISCO-ENTITY-ASSET-MIB, CISCO-ENTITY-FRU-CONTROL-MIB, BRIDGE MIB (RFC 1493), CISCO-VLAN-MEMBERSHIP-MIB, CISCO-VLAN-IFINDEX-RELATIONSHIP-MIB, RMON1-MIB, PIM-MIB, CISCO-STP-EXTENSIONS-MIB, OSPF MIB (RFC 1253), IPMROUTE-MIB, CISCO-MEMORY-POOL-MIB, ETHER-LIKE-MIB (RFC 1643), CISCO-ENTITY-FRU-CONTROL-MIB.my, CISCO-RTTMON-MIB, CISCO-PROCESS-MIB, CISCO-COPS-CLIENT-MIB |
| RFC Compliance | RFC 2284 PPP Extensible Authentication Protocol (EAP) |
| DC Power Support | DC input on Cisco 4351, 4431, 4451; PoE option not available with DC input |
| Software Support | Cisco IOS-XE Release 3.15 or above, IP Base License of Universal image required on Cisco 4000 Series |
| Operating Altitude | Up to 4,570 m (15,000 ft) |
| Operating Humidity | 10% to 90%, noncondensing |
| Compliance & Safety | Meets router regulatory, safety, and EMC standards when installed in Cisco 4000 Series routers |
| Internal Power Supply | Optional PoE system power supply for Cisco 4000 Series routers |
| Operating Temperature | 0掳C to 40掳C (32掳F to 104掳F) |
| Connectors and Cabling | 10BASE-T: RJ-45, Cat 3/4/5 UTP; 100BASE-TX: RJ-45, Cat 5 UTP; 1000BASE-TX: RJ-45, Cat 5e/6 UTP |
| Dimensions (H x W x D) | 0.8 x 6.2 x 4.8in (2.1 x 18.8 x 12.2cm) |
| Redundant Power Supply | Supported on Cisco 4431 and 4451 routers only |
| Non-Operating Temperature | 20掳C to 65掳C (-4掳F to 149掳F) |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this NIM-ES2-8-P, Cisco 4000 Series Router Switch Module, 8xGE PoE, Gigabit, NIM (NIM-ES2-8-P) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This NIM-ES2-8-P, Cisco 4000 Series Router Switch Module, 8xGE PoE, Gigabit, NIM includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the NIM-ES2-8-P, Cisco 4000 Series Router Switch Module, 8xGE PoE, Gigabit, NIM compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the NIM-ES2-8-P.
