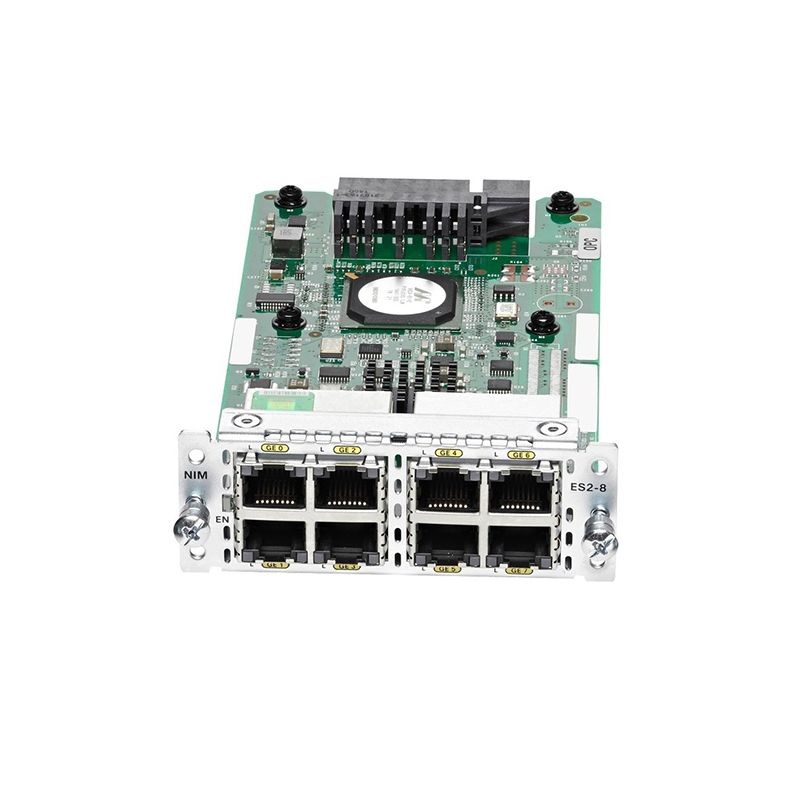

NIM-ES2-8, Cisco NIM-ES2 Series, 8-Port GE Switch Module/4000 ISR Module/Hot Swap
Brand: Cisco · SKU: NIM-ES2-8 · MPN: NIM-ES2-8 · Category: Networking
Cisco 4000 Series Integrated Services Router 8-Port Gigabit Ethernet Switch Module NIM
Specifications
| Model | NIM-ES2-8 |
|---|---|
| Description | 8-Port Layer 2 Gigabit Ethernet Switch Module NIM |
| Form Factor | Single-wide NIM form factor |
| Manageability | SNMP and Telnet interface, CLI console for out-of-band management, RMON software agent for 4 groups (history, statistics, alarms, events), SPAN port mirroring, TFTP upgrade, two LEDs per port, crash information support, show-interface capability |
| RFC Standards | RFC 2284 (PPP EAP) |
| IEEE Protocols | IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3x (Full Duplex), IEEE 802.3af (PoE), IEEE 802.1d (Spanning Tree), IEEE 802.1p (CoS), IEEE 802.1q (VLAN), IEEE 802.1X (Security) |
| LED Indicators | Link status LED (per port); PoE status LED (per port system) |
| MIBs Supported | RFC 1213, IF MIB, RFC 2037 ENTITY MIB, CISCO-CDP-MIB, CISCO-IMAGE-MIB, CISCO-FLASH-MIB, OLD-CISCO-CHASSIS-MIB, CISCO-VTP-MIB, CISCO-HSRP-MIB, OLD-CISCO-TS-MIB, CISCO-ENTITY-ASSET-MIB, CISCO-ENTITY-FRU-CONTROL-MIB, BRIDGE MIB (RFC 1493), CISCO-VLAN-MEMBERSHIP-MIB, CISCO-VLAN-IFINDEX-RELATIONSHIP-MIB, RMON1-MIB, PIM-MIB, CISCO-STP-EXTENSIONS-MIB, OSPF MIB (RFC 1253), IPMROUTE-MIB, CISCO-MEMORY-POOL-MIB, ETHER-LIKE-MIB (RFC 1643), CISCO-ENTITY-FRU-CONTROL-MIB.my, CISCO-RTTMON-MIB, CISCO-PROCESS-MIB, CISCO-COPS-CLIENT-MIB |
| DC Power Support | Available on Cisco 4351, 4431, 4451 routers; PoE not available with DC power input |
| Software Support | Cisco IOS-XE Software Release 3.15 or later; IP Base License of Universal image |
| Operating Altitude | Up to 4570 m (15,000 ft) |
| Operating Humidity | 10% to 90%, noncondensing |
| Internal Power Supply | Optional PoE power supply available for all Cisco 4000 Series routers |
| Operating Temperature | 0掳C to 40掳C (32掳F to 104掳F) |
| Connectors and Cabling | 10BASE-T: RJ-45, Category 3/4/5 UTP; 100BASE-TX: RJ-45, Category 5 UTP; 1000BASE-TX: RJ-45, Category 5e/6 UTP |
| Dimensions (H x W x D) | 0.8 x 6.2 x 4.8in (2.1 x 18.8 x 12.2cm) |
| Nonoperating Temperature | 20掳C to 65掳C (-4掳F to 149掳F) |
| Internal Redundant Power Supply | Supported only on Cisco 4431 and 4451 routers |
| Regulatory Compliance, Safety, and EMC | Meets compliance, safety, and EMC standards of the host Cisco 4000 Series router. Refer to router datasheet for details. |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this NIM-ES2-8, Cisco NIM-ES2 Series, 8-Port GE Switch Module/4000 ISR Module/Hot Swap (NIM-ES2-8) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This NIM-ES2-8, Cisco NIM-ES2 Series, 8-Port GE Switch Module/4000 ISR Module/Hot Swap includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the NIM-ES2-8, Cisco NIM-ES2 Series, 8-Port GE Switch Module/4000 ISR Module/Hot Swap compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the NIM-ES2-8.
