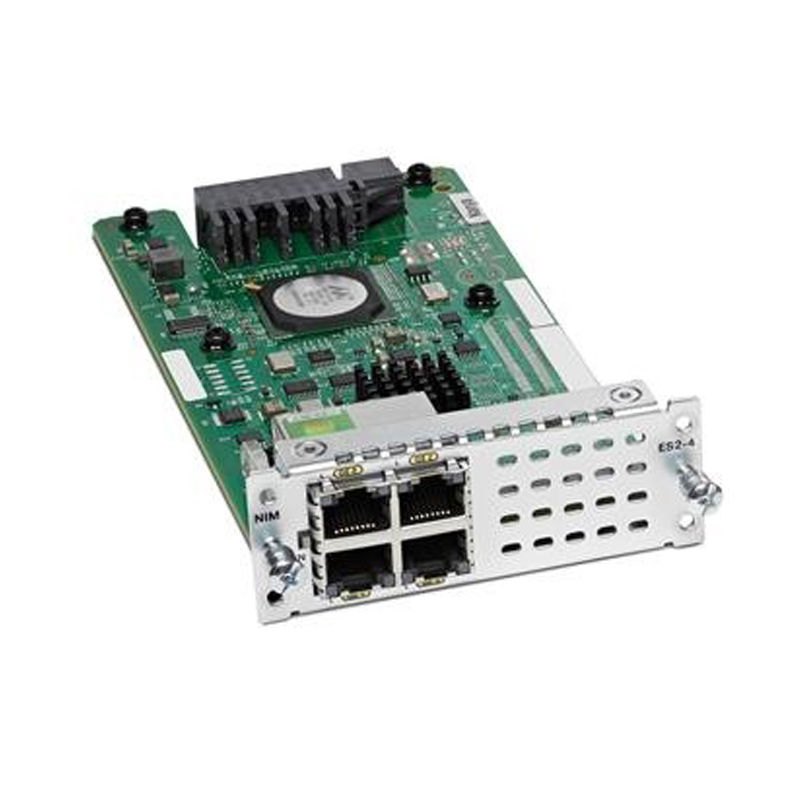

NIM-ES2-4=, Cisco 4000 Series Integrated Services Router, 4-Port GE, Layer 2, NIM Module
Brand: Cisco · SKU: NIM-ES2-4= · MPN: NIM-ES2-4= · Category: Networking
Request for Quote
In Stock • 10 units
4-port Layer 2 Gigabit Ethernet LAN Switch NIM
Specifications
| RFC | RFC 2284, PPP Extensible Authentication Protocol (EAP) |
|---|---|
| MIBs | · RFC 1213 · IF MIB · RFC 2037 ENTITY MIB · CISCO-CDP-MIB · CISCO-IMAGE-MIB · CISCO-FLASH-MIB · OLD-CISCO-CHASSIS-MIB · CISCO-VTP-MIB · CISCO-HSRP-MIB · OLD-CISCO-TS-MIB · CISCO-ENTITY-ASSET-MIB · CISCO-ENTITY-FRU-CONTROL-MIB · BRIDGE MIB (RFC 1493) · CISCO-VLAN-MEMBERSHIP-MIB · CISCO-VLAN-IFINDEX-RELATIONSHIP-MIB · RMON1-MIB · PIM-MIB · CISCO-STP-EXTENSIONS-MIB · OSPF MIB (RFC 1253) · IPMROUTE-MIB · CISCO-MEMORY-POOL-MIB · ETHER-LIKE-MIB (RFC 1643) · CISCO-ENTITY-FRU-CONTROL-MIB.my · CISCO-RTTMON-MIB · CISCO-PROCESS-MIB · CISCO-COPS-CLIENT-MIB |
| Model | NIM-ES2-4= |
| Weight | 79 kg |
| Form factor | Single-wide NIM form factor |
| Manageability | · SNMP and Telnet interface support delivers comprehensive in-band management, and a CLI management console provides detailed out-of-band management. · An embedded RMON software agent supports four RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis. · A SPAN port can mirror traffic from one or many ports to another port for monitoring all eight RMON groups with an RMON probe or network analyzer. · Trivial File Transfer Protocol (TFTP) reduces the cost of administering software upgrades by downloading from a centralized location. · Two LEDs per port provide convenient visual indication of the port link and PoE status. · Crash information support enables a switch to generate a crash file for improved troubleshooting. · Show-interface capabilities provide information about the configuration capabilities of any interface. |
| IEEE protocols | · Gigabit Ethernet: IEEE 802.3 and 10BASE-T · Gigabit Ethernet: IEEE 802.3u, 100BASE-TX, and 1000BASE-TX · IEEE 802.1d Spanning Tree Protocol · IEEE 802.1p CoS for Traffic Prioritization · IEEE 802.1q VLAN · IEEE 802.1X Security · IEEE 802.3x Full Duplex · IEEE 802.3af Power over Gigabit Ethernet Standard |
| LED indicators | · Link status LED: One LED per port for indicating link status · PoE LED: One LED per port system for PoE status indication |
| DC power support | · DC system power input available on the Cisco 4351, 4431, and 4451 routers · PoE option not available with DC system power input |
| Software support | Minimum Cisco IOS-XE Software Release 3.15 for Cisco 4000 Series routers: IP Base License of the Universal image |
| Operating altitude | 15,000 ft (4,570m) |
| Operating humidity | 10 to 90 percent, noncondensing |
| Internal power supply | Optional PoE system power supply available for all Cisco 4000 Series routers |
| Operating temperature | 32° to 104°F (0° to 40°C) |
| Connectors and cabling | · 10BASE-T ports: RJ-45 connectors, two-pair Category 3, 4, or 5 unshielded twisted pair (UTP) cabling · 100BASE-TX ports: RJ-45 connectors; two-pair Category 5 UTP cabling · 1000BASE-TX ports: RJ-45 connectors; two-pair Category 5e and Category 6 UTP cabling |
| Dimensions (H x W x D) | 0.8 x 3.1 x 4.8in. (2.1 x 7.9 x 12.2cm) |
| Nonoperating temperature | 4° to 149°F (-20° to 65°C) |
| Internal redundant power supply | For the Cisco 4431 and 4451 routers only |
| Regulatory compliance, safety, and EMC | When installed in a Cisco 4000 Series router, the Cisco Gigabit Ethernet LAN Switch NIM meets the standards (regulatory compliance, safety, and EMC) of the router itself. Refer to the data sheets for the Cisco 4000 Series routers for more details. |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this NIM-ES2-4=, Cisco 4000 Series Integrated Services Router, 4-Port GE, Layer 2, NIM Module (NIM-ES2-4=) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This NIM-ES2-4=, Cisco 4000 Series Integrated Services Router, 4-Port GE, Layer 2, NIM Module includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the NIM-ES2-4=, Cisco 4000 Series Integrated Services Router, 4-Port GE, Layer 2, NIM Module compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the NIM-ES2-4=.
