Matrox MURA-MPX44HF graphics card 2 GB
Brand: Matrox · SKU: MURA-MPX44HF · MPN: MURA-MPX44HF · Category: Components
Matrox MURA-MPX44HF, 2 GB, 2560 x 1600 pixels, PCI Express x16 2.0
Specifications
| PhysX | No |
|---|---|
| Height | 111.9 mm |
| Length | 241.3 mm |
| Weight | 298 g |
| Cooling type | Passive |
| Certification | FCC A, CE A, ACMA A, VCCI A, KCC, ICES - 003 A, CSA, REACH |
| Interface type | PCI Express x16 2.0 |
| Product colour | Black, Green |
| Number of slots | 1 |
| Data transfer rate | 64 Gbit/s |
| Maximum resolution | 2560 x 1600 pixels |
| TV tuner integrated | No |
| Compliance certificates | RoHS |
| Graphics processor family | Matrox |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Discrete graphics card memory | 2 GB |
| Operating relative humidity (H-H) | 20 - 80% |
| Server operating systems supported | Windows Server 2008 R2 |
| Windows operating systems supported | Windows 7 Professional x64 |
| Warranty | 3-Year Warranty |
| Weight | 298 g |
Product Description

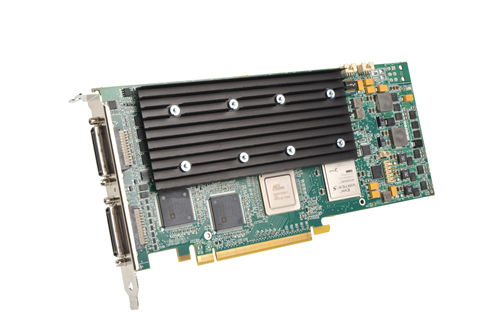

The Matrox Mura MPX-4/4 video wall controller board makes no compromises as it redefines the future of collaborative video walls and wall matrix management. The unique single-slot board design supports four HD inputs and four HD outputs on the same PCI Express x16 Gen2 board—leveraging 64 Gbit/sec duplex data transfer for the flawless display of video input captures without sacrificing frame rate, color or resolution. In addition, the Mura MPX-4/4 output/input board features highly flexible, universal input channel support for both digital and analog video signals (DVI, RGB/VGA, Component, S-Video, & Composite), and captures and displays each signal at full true color (24-bit) image quality. The Mura MPX-4/4 video wall controller card can be combined with other Matrox Mura MPX Series boards to create tailored video wall solutions with support for additional digital and analog video, as well as SDI video, inputs. - Single-slot board design with integrated support of 4 output and 4 input channels on the same board - Combine multiple Matrox Mura MPX Series boards to drive desired channel requirements—all from a single system - PCI Express x16 Gen2 host bus connection leverages 64 Gbit/s full duplex data transfer - Maximum output resolution of 2048x1152 (SL-DVI) & 2048x1536 (RGB/VGA) per display - Maximum input resolution of 2560x1600 (SL-DVI)1, 1920x1200 (RGB/VGA), 1920x1080i (Component), and NTSC/PAL/SECAM (S-Video, Composite) per input - HDCP compliant board captures protected video content from digital cable, satellite set-top boxes, video streamers and Blu-ray™ players and outputs the content to HDCP-enabled displays - Designed for control rooms, operation centers and other mission critical environments as well as digital signage, and presentation systems that require stable, reliable video wall technology - Supports Bezel Management as well as Edge Overlap for multi-projector platforms in both landscape and portrait modes - Multi-functional board design facilitates video switching, signal conversion, scaling and de-interlacing from a single board, eliminating the need for separate solutions - Hardware Framelock: Synchronization of multiple outputs provides tear-free display of captured video sources across multiple displays - Backwards compatible with Matrox VPX and Matrox PPX Series display wall applications - Network API provides an easy-to-use programming interface for remotely controlling Mura MPX-powered video wall solutions - Software Development Kit (SDK), which includes the Matrox Displaywall API, Network API and PowerDesk API, is available to select partners - Matrox MuraControl™ for iPad® and MuraControl for Windows® software easily and intuitively controls your video wall and the comprehensive Software Development Kit (SDK) helps create third party video wall control applications - Manage and monitor your video wall from a multi-display console connected to your Mura-based video wall processor: Add a P690 PCIe x16 or P690 Plus LP PCIe x16 graphics card - Easily integrate Crestron® controller systems with Mura-powered video walls - Designed for Microsoft® Windows® 7 Professional (64 bit), Windows Embedded Standard 7 (64 bit), Windows 7 Professional for Embedded Systems (64 bit), and Windows Server® 2008 R2 (64 bit) - Global sales and technical support
Key Features
Matrox MURA-MPX44HF. Graphics processor family: Matrox. Discrete graphics card memory: 2 GB. Maximum resolution: 2560 x 1600 pixels. Interface type: PCI Express x16 2.0. Cooling type: Passive
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Matrox MURA-MPX44HF graphics card 2 GB (MURA-MPX44HF) is 100% genuine Matrox hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Matrox MURA-MPX44HF graphics card 2 GB includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Matrox MURA-MPX44HF graphics card 2 GB compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the MURA-MPX44HF.
