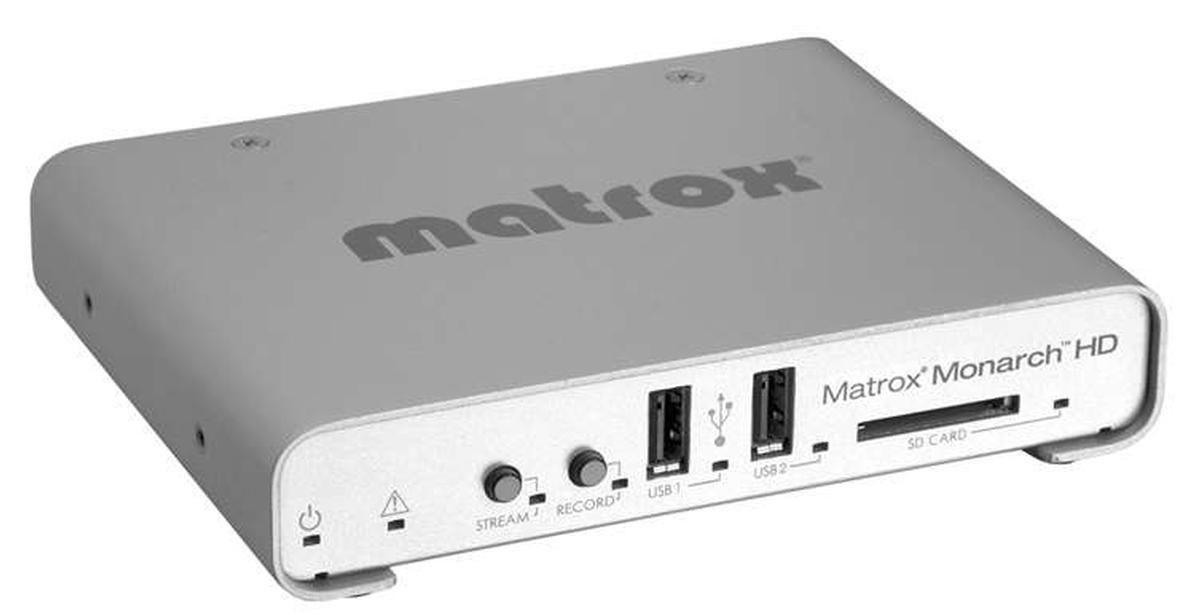

Matrox Monarch HD Video Streaming and Recording Appliance / MHD/I

Specifications

Product Description

Matrox Monarch HD Video Streaming and Recording Appliance / MHD/I Product Info: Matrox Monarch HD is a small, easy-to-use video streaming and recording appliance designed for professional video producers to stream a live event while simultaneously recording a higher, master quality version for post-event editing or archiving. Webcasting to YouTube and Facebook Live is made easy through its simplified set up for these popular platforms. All that's needed is to pair the device once with these accounts and it's automatically retained for subsequent streams. From any HDMI input source such as camera or switcher, Matrox Monarch HD generates an H.264-encoded stream compliant with RTSP or RTMP protocols. While encoding the video at bitrates suitable for live streaming, Matrox Monarch HD simultaneously records a high-quality MP4 or MOV file to an SD card, a USB drive, or a network-mapped drive. Matrox Monarch HD is remotely controlled using any computer or mobile device with a web browser. •From any HDMI input source such as a camera or switcher, Monarch HD generates an H.264-encoded stream compliant with RTSP or RTMP protocols. •Monarch HD simultaneously records a high-quality MP4 or MOV file to an SD card, a USB drive, or a network-mapped drive. •Remotely controlled using any computer or mobile device with a web browser. •Provices live content to CDNs such as YouTube, Facebook Live, and Ustream; media servers such as Adobe Flash and Wowza; or directly to computer device found on a LAN. •Monarch HD supports sharing the H.264 encoder between the streaming and recording processes so recording quality and upload bandwidth are independent of each other. •Powerful and robust, Monarch HD offers simple, one touch stream and record push buttons, low power consumption, a locking power connector, and a fanless design. •Network- or cloud-based video management platform developers, A/V integrators and value-added resellers can use Monarch HD Dev Tools which include automatic configuration tools and the Monarch HD Control API •Monarch HD Control API is an ideal way to integrate Monarch HD functionality into an existing classroom, boardroom or other space equipped with a Crestron control system. Tech Specs: •Depth : 109.22 mm •Height : 30.99 mm •Network Interfaces : Connector: RJ45 providing 10/100/1000 Base-T Ethernet with Static or DHCP addressing Protocols: RTMP, RTSP/RTP. IPv4 Support. Unicast and Multi Unicast (number of clients may vary from 3 to 10). •Power : Line Voltage: 100-240V AC, 0.5A Frequency: 50-60 Hz Input: External AC/DC adapter - IEC320-C8 Output: +5VDC, 3A max Total power consumption: 15 Watts DIN4 Locking Power Connector Transport and Storage: Max Operating Altitude: 3000 meters Max Transport altitude: 12,000 meters Storage Humidity 5 to 95% relative humidity (non-condensing) Regulatory: FCC Class B, CE Mark Class B, ACMA C-Tick Mark, VCCI. RoHS Directive 2002/95/EC. •User Interface : Computer Based control: HTTP via standard PC or Mac web browser using Matrox Command Center. The simple Monarch HD Control API is also available to programmers to create their own application to start and stop the Monarch HD. Physical Interface: On Device push buttons for independent streaming and recording Start/Stop control •Kit Contents : In the box: Matrox Monarch HD device Matrox Monarch HD external power supply IEC-C8 power cords (US, GB and EU) •Inputs and outputs : HDMI Video Input: Progressive: 1920x1080 @ 60/59.94/50/30/29.97/25/24/23.98 Frames per second; 1280x720@ 60/59.94/50 Frames per second; Interlaced: 1920x1080i 29.97/25 frames per second; Video Input Format is Auto-Detected HDMI Video Output: Preview output of video input signal. 2 Frame delay from input to output. Audio Input: Processes first two channels of audio embedded in HDMI input signal. Unbalanced analog stereo input via 1/8" (3.5mm) jack. Line Level. Audio Output: Passthrough of all embedded audio channels in HDMI signal. Unbalanced analog stereo output via 1/8" (3.5mm) jack – passthrough of input. Line Level. •Certifications : FCC Class B, CE Mark Class B, ACMA C-Tick Mark, VCCI •Operating Temperature (Maximum) : 40 C •Operating Temperature (Minimum) : 0 C •Recording File Format : File Type: Industry Standard MP4 and MOV files with two channels of embedded AAC audio. Recording Lengths: Maximum file length of 300 minutes - irrespective of storage type used. File splitting feature allows a user to record continuously for long periods by defining file segment sizes. The Monarch HD will create these sequential file segments over the course of the recording operation without losing a single frame of video. File segment can have a length of 1 to 300 minutes. •H.264/MPEG-4 Part 10 (AVC) Video Encoder : Resolutions: Selectable encoding resolutions ranging from: 128x128 to 1920x1080. Bit Rates Ranges Record Only Mode: 100 kbps to 30 Mbps. Stream Only Mode: 100 kbps to 20 Mbps. Independent Stream and Record Mode**: Recording: 100 kbps - 30 Mbps. Streaming: 1

Key Features

Matrox Monarch HD Video Streaming and Recording Appliance / MHD/I. Maximum video resolution: 1920 x 1080 pixels. Housing material: Metal, Certification: FCC B, CE B, ACMA C-Tick, VCCI, RoHS. Width: 142 mm, Depth: 112 mm, Height: 31 mm
