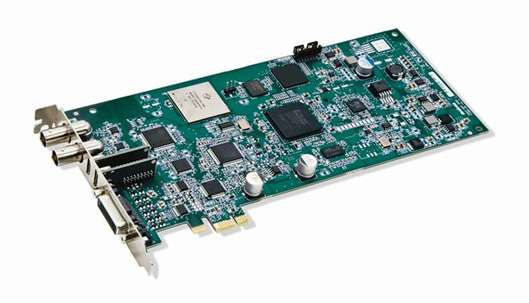

Matrox MOJITO MAX interface cards/adapter Internal HDMI

Specifications

Product Description

MAX H.264 Encoding Acceleration Resolutions Even frame sizes from 64 x 64 to 1920 x 1080 Bit rates 100 Kb/s to 50 Mb/s Frame rates 15, 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60 frames per second Encoding profiles Baseline (CAVLC) and main (CABAC) profiles Encoding controls - 2.0, 3.0, 3.1, 4.0, 4.1, and 4.2 level support - GOP structure - Constant bit rate (bit rate remains stable, quality varies depending on complexity of each frame) - Constant quality (each video frame is analyzed to deliver the targeted quality, bit rate varies while keeping the lowest possible bit rate) - Variable bit rate (squeezes out the highest possible quality at the average target bit rate ) - Noise filtering (saves bits by reducing high frequencies in the video) - De-interlacing (ensures high-quality encodes of interlaced SD and 1080i source material) - Data rate slider (produces smoother or more abrupt transitions) - Sample rate monitoring (verifies compliance with targeted data rate) - Scene detection (provides multi-pass quality in a single pass with Apple Compressor) Video Supported video formats - NTSC/PAL/NTSC-EIAJ - 720P 50/59.94 - 1080I 50/59.94 - 1080P 23.98/24/25/29.97/30 - 1080PsF 23.98/24/25/29.97/30 HDMI input - 1 HD input - HDMI Y,Cb,Cr 4:2:2 (10-bit) / RGB (8-bit) - 8 channels of embedded audio - Standard Type A HDMI connector (19 pins) HDMI output - 1 HD or SD output - HDMI Y,Cb,Cr 4:2:2 (10-bit) / RGB (8-bit) - 8 channels of embedded audio - HDMI 1.4a flag setting through control panel for 3D monitoring SDI input - 1 SD or HD input - 16 channels of embedded audio on Mac - 8 channels of embedded audio on the PC - Compliant with SMPTE 259M, SMPTE 272M, SMPTE 292M, SMPTE 299M - BNC connector (75 Ω), terminated - Equalized input for maximum cable length support SDI output - 1 SD or HD output - 16 channels of embedded audio on Mac - 8 channels of embedded audio on the PC - Compliant with SMPTE 259M, SMPTE 272M, SMPTE 292M, SMPTE 299M - BNC connector (75 Ω) Composite input - PAL/NTSC/NTSC-EIAJ - 12-bit ADC - 2x oversampling - Anti-aliasing filtering - Automatic gain control - BNC connector (75 Ω), terminated Composite output - PAL/NTSC/NTSC-EIAJ - 12-bit DAC - 8x oversampling - BNC connector S-Video input - PAL/NTSC/NTSC-EIAJ - 12-bit ADC - 2x oversampling - Anti-aliasing filtering - Automatic gain control - 4-pin mini-DIN S-Video connector (75 Ω), terminated (via third-party adapter purchased separately) S-Video output - PAL/NTSC/NTSC-EIAJ - 12-bit DAC - 8x oversampling - 4-pin mini-DIN S-Video connector (via third-party adapter purchased separately) Component input - Switchable between SD and HD - EIA-770.3 compliant - 12-bit ADC - Anti-aliasing filtering - BNC connector (75 Ω), terminated Component output - Switchable between SD and HD - EIA-770.3 compliant - 12-bit DAC - 2x oversampling - BNC connector HD analog component video passthrough performance - Frequency response Y: +/- 1.0 dB max to 28 MHz - Frequency response Pb, Pr: +/- 1.0 dB max to 12 MHz - Component channel delay: - Component S/N (Y, Pb, Pr): > 50 dB, unified weighted SD analog component video passthrough performance - Amplitude error: - Frequency response: +/- 0.5 dB max to 5 MHz - 2T pulse response: 1.0% max - Diff. Gain: - S/N: > 58 dB, unified weighted Audio Analog inputs - 2 channels balanced audio via XLR connectors - Nominal levels: +4 dBu (+4 dBm) - Input impedance: Hi-Z - Headroom (max level): 18 dB Analog outputs - 2 channels unbalanced audio via RCA connectors - Output impedance: 100 Ω - Line level with 18 dB headroom (max level) - 4 channels balanced audio via XLR connectors - Nominal levels: +4 dBu (+4 dBm) - Output impedance: 50 Ω - Headroom (max level): 18 dB AES/EBU inputs - 2 channels unbalanced - 1 x BNC connector (75 Ω), terminated - Maximum input level: 5 Vp-p AES/EBU outputs - 2 channels unbalanced - 1 x BNC connector (75 Ω), terminated - Nominal output level: 1Vp-p SDI audio input - 16 channels embedded audio - 24-bit, 48 kHz SDI audio output - 16 channels embedded audio - 24-bit, 48 kHz HDMI audio input - 8-channels embedded audio - 24-bit, 48 kHz HDMI audio output - 8-channels embedded audio - 24-bit, 48 kHz Balanced analog audio performance - Sampling frequency: 48 kHz (using 64x oversampling) - Quantization: 24 bits - S/N: > 85 dB - THDN at 1 kHz, nominal level: Genlock Reference input - HD analog tri-level sync or SD analog bi-level black burst - BNC connector (75 Ω), terminated Scaling Dedicated hardware scaler - Multi-tap 10-bit realtime processing - HD to SD downscaling - Proper conversion of the HD color space to the SD color space and proper aspect ratio conversion to anamorphic, letterbox, and center cut are provided. You can monitor or record an SD master of an HD project in real time. - SD to HD upscaling - Proper conversion of the SD color space to the HD color space is performed. Footage with a 4:3 aspect ratio will be "pillarboxed". SD 16:9 footage will be scaled to full screen. - Cross conversions from 720 to

Key Features

Matrox MOJITO MAX. Host interface: PCIe, Output interface: HDMI, Serial interface type: RS-422. Width: 247 mm, Depth: 19 mm, Height: 99 mm
