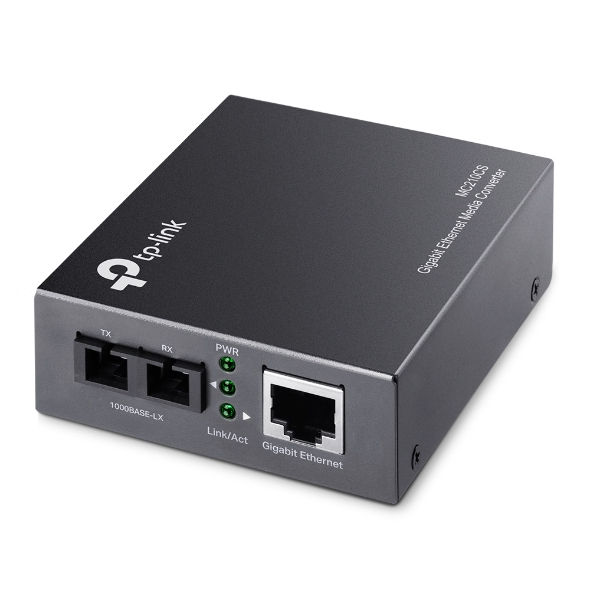

TP-Link Gigabit Single-Mode Media Converter
Brand: TP-Link · SKU: MC210CS V1 · MPN: MC210CS V1 · Category: Components
TP-Link Gigabit Single-Mode Media Converter, 1000 Mbit/s, IEEE 802.1ab, IEEE 802.3x, IEEE 802.3z, Gigabit Ethernet, 1000 Mbit/s, Full, Cat6
Specifications
| Depth | 73 mm |
|---|---|
| Width | 94.5 mm |
| Height | 27 mm |
| Internal | No |
| Wavelength | 1310 nm |
| Certification | FCC, CE |
| Duplex system | Full |
| Package depth | 204 mm |
| Package width | 165 mm |
| Auto MDI/MDI-X | Yes |
| LED indicators | Activity, Power |
| Package height | 65 mm |
| Package weight | 430 g |
| Product colour | Black |
| Fiber mode structure | Single-mode |
| Fiber ports quantity | 1 |
| Networking standards | IEEE 802.1ab, IEEE 802.3x, IEEE 802.3z |
| Cable types supported | Cat6 |
| Fiber optic connector | SC |
| Compliance certificates | RoHS |
| Connectivity technology | Wired |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Power consumption (max) | 5.5 W |
| Warranty | 3-Year Warranty |
| Dimensions | 94.5 mm x 73 mm x 27 mm |
Product Description
- Complies with IEEE 802.3ab and IEEE 802.3z - Provides switch configuration of Force /Auto transfer mode for FX port. - Extends fiber distance up to 15km The MC210CS is a media converter designed to convert 1000BASE-LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX/LH standards, the MC210CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC210CS supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK’s 19’ system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 15 kilometers.
Key Features
TP-Link Gigabit Single-Mode Media Converter. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.1ab, IEEE 802.3x, IEEE 802.3z, Ethernet interface type: Gigabit Ethernet. Maximum transfer distance: 15000 m, Wavelength: 1310 nm, Fiber mode structure: Single-mode. LED indicators: Activity, Power, Product colour: Black. Fiber optic connector: SC, Connectivity technology: Wired. Power consumption (max): 5.5 W
