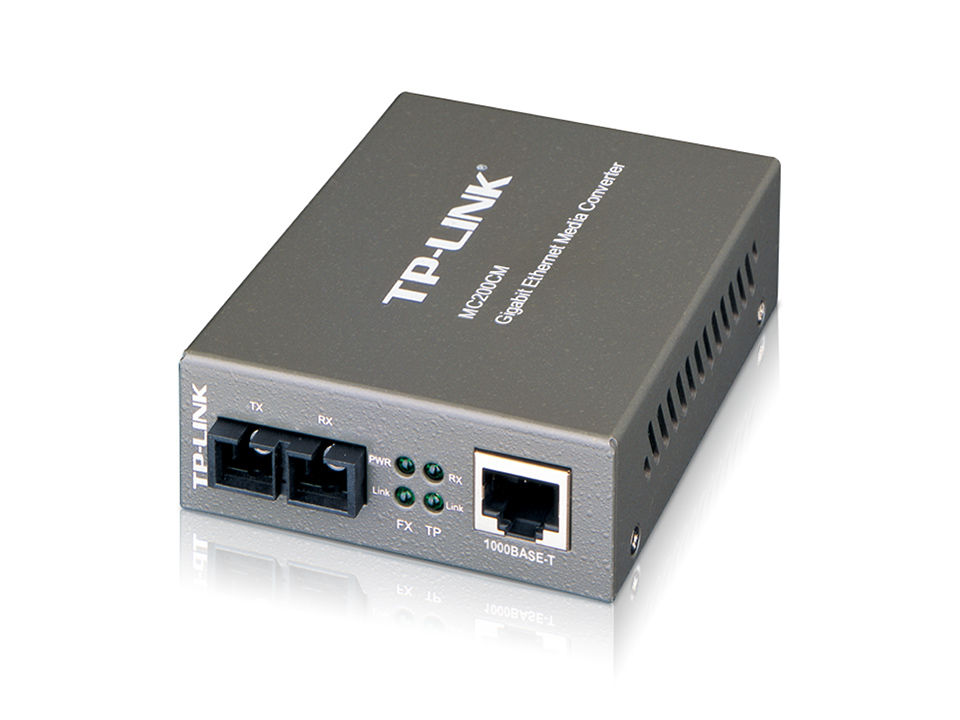

TP-Link Gigabit Multi-Mode Media Converter
Brand: TP-Link · SKU: MC200CM V1 · MPN: MC200CM V1 · Category: Components
TP-Link Gigabit Multi-Mode Media Converter, 1000 Mbit/s, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, Gigabit Ethernet, 1000 Mbit/s, 550 m, 850 nm
Specifications
| Depth | 73 mm |
|---|---|
| Width | 94.5 mm |
| Height | 27 mm |
| Internal | No |
| DC-in jack | Yes |
| Wavelength | 850 nm |
| Certification | FCC, CE |
| Package depth | 165 mm |
| Package width | 204 mm |
| Auto MDI/MDI-X | Yes |
| LED indicators | Link |
| Package height | 65 mm |
| Product colour | Black |
| Fiber mode structure | Multi-mode |
| Fiber ports quantity | 1 |
| Networking standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| Fiber optic connector | SC |
| Compliance certificates | RoHS |
| Connectivity technology | Wired |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Power consumption (max) | 5.5 W |
| Maximum transfer distance | 550 m |
| Storage temperature (T-T) | -40 - 70 °C |
| Warranty | 3-Year Warranty |
| Dimensions | 94.5 mm x 73 mm x 27 mm |
Product Description
- Complies with IEEE 802.3ab and IEEE 802.3z - Provides switch configuration of Force /Auto transfer mode for FX port. - Extends fiber distance up to 0.5km The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data. Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers.
Key Features
TP-Link Gigabit Multi-Mode Media Converter. Maximum data transfer rate: 1000 Mbit/s, Networking standards: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, Ethernet interface type: Gigabit Ethernet. Maximum transfer distance: 550 m, Wavelength: 850 nm, Fiber mode structure: Multi-mode. LED indicators: Link, Product colour: Black. Fiber optic connector: SC, Connectivity technology: Wired. Power consumption (max): 5.5 W
Frequently Asked Questions
Is this product genuine OEM?
Yes, this TP-Link Gigabit Multi-Mode Media Converter (MC200CM V1) is 100% genuine TP-Link hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This TP-Link Gigabit Multi-Mode Media Converter includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the TP-Link Gigabit Multi-Mode Media Converter compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the MC200CM V1.
