TP-Link DeltaStream 8-Port Pizza-Box XGS-PON & GPON Combo Optical Line Terminal
Brand: TP-Link · SKU: DS-P7500-08 · MPN: DeltaStream 8-Port Pizza-Box XGS-PON & GPON Combo Optical Line Terminal · Category: Components
TP-Link DeltaStream 8-Port Pizza-Box XGS-PON & GPON Combo Optical Line Terminal, 1:256, 20000 m, Dynamic MAC address entries, Static MAC address entries, IEEE 802.1p, IEEE 802.1x, 10G Ethernet, Gigabit Ethernet, 100 - 240 V
Specifications
| Depth | 330 mm |
|---|---|
| Width | 440 mm |
| Height | 44 mm |
| DHCP relay | Yes |
| DHCP server | Yes |
| Static route | Yes |
| IGMP snooping | Yes |
| Upstream ports | 10G Ethernet, Gigabit Ethernet |
| AC input voltage | 100 - 240 V |
| DC voltage range | 38.4 - 72 V |
| AC input frequency | 50 - 60 Hz |
| GPON ports quantity | 8 |
| MAC address entries | Dynamic MAC address entries, Static MAC address entries |
| Networking standards | IEEE 802.1p, IEEE 802.1x |
| GPON split ratio (max) | 1:256 |
| Power consumption (max) | 109.2 W |
| SFP/SFP+ slots quantity | 4 |
| Access Control List (ACL) | Yes |
| Storage temperature (T-T) | -40 - 70 °C |
| Ethernet LAN (RJ-45) ports | 2 |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Quality of Service (QoS) support | Yes |
| Maximum operating distance (GPON) | 20000 m |
| Warranty | 3-Year Warranty |
| Dimensions | 440 mm x 330 mm x 44 mm |
Product Description

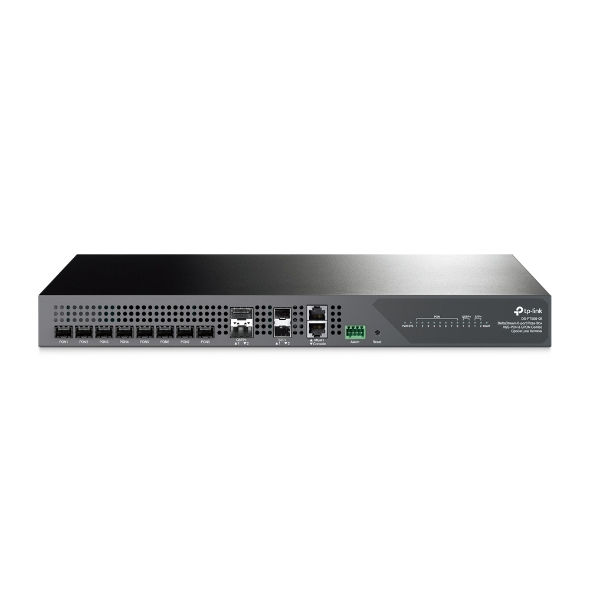

The DS-P7500-08 is a DeltaStream 8-port Pizza-Box XGS-PON&GPON Combo Optical Line Terminal with full L2 and advanced L3 featuresdesigned to meet a wide range of business needs. The pizza-box OLTsupports a higher number of ONUs and its dual power supply redundancydesign further improves the stability of the OLT network. High Split Ratio for High Capacity Support 1:256(XGS-PON) & 1:128(GPON) splitting ratio forevery port - up to 3072ONTs by one device. Redundant Dual Power Supplies Carrier-class reliability with redundant dual power supplies supporting AC, DC ormixed power input. Compact Sizefor Flexible Deployment 19 inch rack mount sizeis flexible and easy to deploy, suitable for different application scenarios. Centralized Management Makes maintenance easier with remote batch configuration and updates via DeltaStream PON Management System (DPMS), SNMP,CLI, and WEB UI.
Key Features
TP-Link DeltaStream 8-Port Pizza-Box XGS-PON & GPON Combo Optical Line Terminal. GPON split ratio (max): 1:256, Maximum operating distance (GPON): 20000 m, MAC address entries: Dynamic MAC address entries, Static MAC address entries. Networking standards: IEEE 802.1p, IEEE 802.1x, Upstream ports: 10G Ethernet, Gigabit Ethernet. AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, DC voltage range: 38.4 - 72 V. Width: 440 mm, Depth: 330 mm, Height: 44 mm
Technical Deployment Advisory
Target Personnel
Systems Maintenance Techs
Infrastructure Fit
Mid-Lifecycle Capacity Expansion
"As a genuine TP-Link component, the DS-P7500-08 ensures 100% compatibility for Mid-Lifecycle Capacity Expansion. It is an essential part for Systems Maintenance Techs tasked with hardware lifecycle maintenance."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this TP-Link DeltaStream 8-Port Pizza-Box XGS-PON & GPON Combo Optical Line Terminal (DS-P7500-08) is 100% genuine TP-Link hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This TP-Link DeltaStream 8-Port Pizza-Box XGS-PON & GPON Combo Optical Line Terminal includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the TP-Link DeltaStream 8-Port Pizza-Box XGS-PON & GPON Combo Optical Line Terminal compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the DS-P7500-08.
