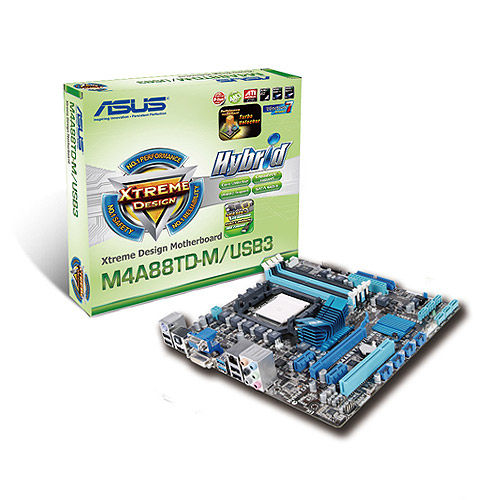

ASUS M4A88TD-M/USB3 motherboard AMD 880G Socket AM3 micro ATX
Brand: ASUS · SKU: M4A88TD-M/USB3 · MPN: M4A88TD-M/USB3 · Category: Components
ASUS M4A88TD-M/USB3, AMD, Socket AM3, 16 GB, ECC & Non-ECC, 0, 1, 10, 1024 MB. ASUS M4A88TD-M/USB3 motherboard AMD 880G Socket AM3 micro ATX (part number M4A88TD-M/USB3) is an enterprise components product available from Server Tech Central. Key specifications include depth 244 mm, width 244 mm, audio chip Realtek ALC892, raid levels 0, 1, 10, graphics card Radeon HD 4250, microphone in Yes, lan controller Realtek RTL8111E, s/pdif out port Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 244 mm |
|---|---|
| Width | 244 mm |
| Audio chip | Realtek ALC892 |
| RAID levels | 0, 1, 10 |
| Graphics card | Radeon HD 4250 |
| Microphone in | Yes |
| LAN controller | Realtek RTL8111E |
| S/PDIF out port | Yes |
| Bundled software | ASUS Update ASUS Utilities |
| Processor socket | Socket AM3 |
| Headphone outputs | 1 |
| Power source type | ATX |
| ECC сompatibility | ECC & Non-ECC |
| USB 2.0 connectors | 8 |
| HDMI ports quantity | 1 |
| Motherboard chipset | AMD 880G |
| Networking features | Gigabit LAN |
| PS/2 ports quantity | 1 |
| DVI-D ports quantity | 1 |
| PCI Express x1 slots | 2 |
| S/PDIF out connector | Yes |
| Audio output channels | 7.1 channels |
| PCI Express x16 slots | 1 |
| Number of memory slots | 4 |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 244 mm |
Product Description
AMD® Phenom™ II/Athlon™ II/ Sempron™ 100 series Processors (socket AM3) This motherboard supports AMD® Socket AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 1333 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus. This motherboard also supports AMD® CPUs in the new 45nm manufacturing process. Dual-Channel DDR3 2000(O.C.) The motherboard supports DDR3 memory that features data transfer rates of 2000(O.C.)/1600(O.C.)/1333/1066 MHz to meet the higher bandwidth requirements of the latest operation system, 3D graphics, multimedia, and Internet applications. Hybrid CrossFireX™ Support Flexible Graphics Alternatives This motherboard supports multiple digital and analog display output interfaces - HDMI, DVI, and D-Sub. With such diversity of display outputs, you are able to choose and upgrade display devices freely. AMD® 880G/SB850 Chipset AMD® 880G Chipset is designed to support up to 5200MT/s HyperTransport™ 3.0 (HT3.0) interface speed and PCI Express™ 2.0 x 16 graphics. It is optimized with AMD's latest AM3 and multi-core CPUs to provide excellent system performance and overclocking capabilities.The AMD® SB850 Southbridge natively supports the next generation SATA 6.0 Gb/s data transfer rate and PCI Express 2.0 interface. PCIe 2.0 support This motherboard supports the latest PCIe 2.0 devices for double speed and bandwidth which enhances system performance. HDMI Support Enjoy Full HD 1080p Multimedia Home-Theater Entertainment High-Definition Multimedia Interface (HDMI) is a set of digital video standards that delivers multi-channel audio and uncompressed digital video for full HD 1080p visuals through a single cable. Supporting HDCP copy protection such as HD DVD and Blu-ray Discs, HDMI provides you with the highest-quality home theater experience.
Key Features
ASUS M4A88TD-M/USB3. Processor manufacturer: AMD, Processor socket: Socket AM3. Maximum internal memory: 16 GB, ECC сompatibility: ECC & Non-ECC. RAID levels: 0, 1, 10. Maximum graphics card memory: 1024 MB, Graphics card: Radeon HD 4250. LAN controller: Realtek RTL8111E, Networking features: Gigabit LAN
