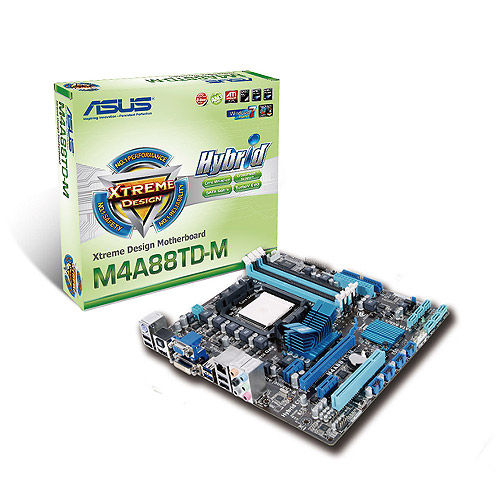

ASUS M4A88TD-M motherboard AMD 880G Socket AM3 micro ATX
Brand: ASUS · SKU: M4A88TD-M · MPN: M4A88TD-M · Category: Components
ASUS M4A88TD-M, AMD, Socket AM3, AMD Phenom II X2, AMD Phenom II X4, AMD Phenom II X6, 16 GB, Dual-channel, ECC & Non-ECC. ASUS M4A88TD-M motherboard AMD 880G Socket AM3 micro ATX (part number M4A88TD-M) is an enterprise components product available from Server Tech Central. Key specifications include depth 244 mm, width 244 mm, bios type AMI, pci slots 1, audio chip Realtek ALC892, raid levels 0, 1, 5, 10, acpi version 2.0a, component for PC. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 244 mm |
|---|---|
| Width | 244 mm |
| BIOS type | AMI |
| PCI slots | 1 |
| Audio chip | Realtek ALC892 |
| RAID levels | 0, 1, 5, 10 |
| ACPI version | 2.0a |
| Component for | PC |
| Graphics card | Radeon HD 4250 |
| LAN controller | Realtek RTL8111E |
| Memory channels | Dual-channel |
| S/PDIF out port | Yes |
| BIOS memory size | 16 Mbit |
| Drivers included | Yes |
| Processor socket | Socket AM3 |
| CPU fan connector | Yes |
| Headphone outputs | 6 |
| Power source type | ATX |
| ECC сompatibility | ECC & Non-ECC |
| Parallel connector | Yes |
| USB 2.0 connectors | 4 |
| HDMI ports quantity | 1 |
| Motherboard chipset | AMD 880G |
| Networking features | Gigabit Ethernet |
| Warranty | 3-Year Warranty |
| Dimensions | 244 mm x 244 mm |
Product Description
This motherboard supports AMD® Socket AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 1333 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus. This motherboard also supports AMD® CPUs in the new 45nm manufacturing process. AMD® 880G Chipset is designed to support up to 5200MT/s HyperTransport™ 3.0 (HT3.0) interface speed and PCI Express™ 2.0 x 16 graphics. It is optimized with AMD's latest AM3 and multi-core CPUs to provide excellent system performance and overclocking capabilities.The AMD® SB850 Southbridge natively supports the next generation SATA 6.0 Gb/s data transfer rate and PCI Express 2.0 interface. The motherboard supports DDR3 memory that features data transfer rates of 2000(O.C.)/1600(O.C.)/1333/1066 MHz to meet the higher bandwidth requirements of the latest operation system, 3D graphics, multimedia, and Internet applications. This motherboard supports the latest PCIe 2.0 devices for double speed and bandwidth which enhances system performance. Enjoy Full HD 1080p Multimedia Home-Theater Entertainment High-Definition Multimedia Interface (HDMI) is a set of digital video standards that delivers multi-channel audio and uncompressed digital video for full HD 1080p visuals through a single cable. Supporting HDCP copy protection such as HD DVD and Blu-ray Discs, HDMI provides you with the highest-quality home theater experience. Enjoy Full HD 1080p Multimedia Home-Theater Entertainment High-Definition Multimedia Interface (HDMI) is a set of digital video standards that delivers multi-channel audio and uncompressed digital video for full HD 1080p visuals through a single cable. Supporting HDCP copy protection such as HD DVD and Blu-ray Discs, HDMI provides you with the highest-quality home theater experience.
Key Features
ASUS M4A88TD-M. Processor manufacturer: AMD, Processor socket: Socket AM3, Compatible processor series: AMD Phenom II X2, AMD Phenom II X4, AMD Phenom II X6. Maximum internal memory: 16 GB, Memory channels: Dual-channel, ECC сompatibility: ECC & Non-ECC. RAID levels: 0, 1, 5, 10. Maximum graphics card memory: 1024 MB, Graphics card: Radeon HD 4250. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111E, Networking features: Gigabit Ethernet
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS M4A88TD-M motherboard AMD 880G Socket AM3 micro ATX (M4A88TD-M) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS M4A88TD-M motherboard AMD 880G Socket AM3 micro ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS M4A88TD-M motherboard AMD 880G Socket AM3 micro ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the M4A88TD-M.
