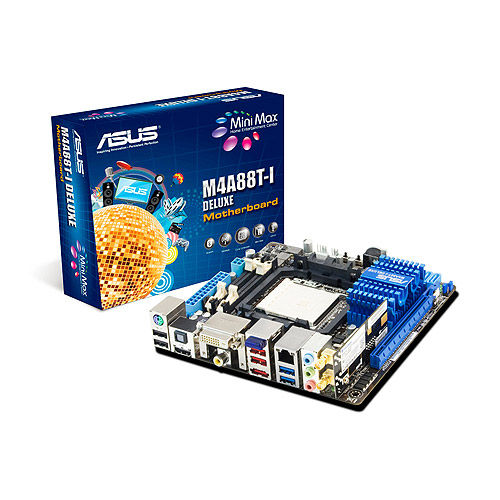

ASUS M4A88T-I Deluxe AMD 880G Socket AM3 mini ITX
Brand: ASUS · SKU: M4A88T-IDELUXE · MPN: M4A88T-IDELUXE · Category: Components
ASUS M4A88T-I Deluxe, AMD, Socket AM3, 8 GB, Non-ECC, 0, 1, 5, JBOD, Hybrid CrossFireX. ASUS M4A88T-I Deluxe AMD 880G Socket AM3 mini ITX (part number M4A88T-IDELUXE) is an enterprise components product available from Server Tech Central. Key specifications include depth 170 mm, width 170 mm, bios type AMI, audio chip Realtek ALC889, raid levels 0, 1, 5, JBOD, acpi version 2.0, graphics card Radeon HD 4250, microphone in Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 170 mm |
|---|---|
| Width | 170 mm |
| BIOS type | AMI |
| Audio chip | Realtek ALC889 |
| RAID levels | 0, 1, 5, JBOD |
| ACPI version | 2.0 |
| Graphics card | Radeon HD 4250 |
| Microphone in | Yes |
| LAN controller | Realtek RTL8112L |
| S/PDIF out port | Yes |
| BIOS memory size | 16 Mbit |
| Drivers included | Yes |
| Processor socket | Socket AM3 |
| CPU fan connector | Yes |
| Headphone outputs | 1 |
| Power source type | ATX |
| ECC сompatibility | Non-ECC |
| USB 2.0 connectors | 1 |
| HDMI ports quantity | 1 |
| Motherboard chipset | AMD 880G |
| Networking features | Gigabit LAN, WLAN 802.11n |
| PS/2 ports quantity | 1 |
| DVI-D ports quantity | 1 |
| WiFi-AP antenna jack | 2 |
| Warranty | 3-Year Warranty |
| Dimensions | 170 mm x 170 mm |
Product Description
AMD® AM3 Phenom™II /Athlon™II /Sempron™ 100 Series Processors This motherboard supports AMD® Socket AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 1333 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus. This motherboard also supports AMD® CPUs in the new 45nm manufacturing process. AMD® 880G/SB710 AMD® 880G Chipset is designed to support up to 5200MT/s HyperTransport™ 3.0 (HT 3.0) interface speed and PCI Express™ 2.0 x16 graphics. It is optimized with AMD®’s latest AM3 and multi-core CPUs to provide excellent system performance and overclocking capabilities. True USB 3.0 Support Experience ultra-fast data transfers at 4.8Gbps with USB 3.0—the latest connectivity standard. Built to connect easily with next generation components and peripherals, USB 3.0 transfers data 10X faster and is also backward compatible with USB 2.0 components. DDR3 1600(O.C.) Supports DDR3 memory that features data transfer rates of 1600(O.C.) Hybrid CrossFireX™ Boosted Performance with onboard GPU and discrete graphics card HDMI Support Enjoy Full HD 1080p Multimedia Entertainment Core Unlocker Intelligently Unlocks True Core Performance ASUS Core Unlocker simplifies the activation of a latent AMD® CPU—with just a simply switch. Enjoy an instant performance boost by simply unlocking the extra cores, without performing complicated BIOS changes. Turbo Key II Switch on the Potential, Turn up the Performance! Enjoy superb performance by auto-tuning your processor to an extreme yet stable state. Simply activate a dedicated switch on the motherboard to unleash extra processing capabilities. Wireless on board WLAN 802.11n gives you faster surfing speeds and higher throughput when compared to other wireless standards. Its wider range of coverage ensures better single transmission and reception. Bluetooth gives you an easier way to connect devices with bluetooth connection. Say goodbye to cable mess! DTS DTS Surround Sensation UltraPC Delivers exceptional 5.1 surround experience through the most common PC audio setups - your existing stereo speakers or headphones. With these technologies, you may experience a better home-theater audio with ease. MemOK! Any Memory is A-OK! MemOK! Quickly ensures memory boot compatibility. This remarkable memory rescue tool requires a mere push of a button to patch memory issues. MemOK! Determines failsafe settings and dramatically improves your system boot success. Get your system up and running in no time!
Key Features
ASUS M4A88T-I Deluxe. Processor manufacturer: AMD, Processor socket: Socket AM3. Maximum internal memory: 8 GB, ECC сompatibility: Non-ECC. RAID levels: 0, 1, 5, JBOD. Parallel processing technology support: Hybrid CrossFireX, Maximum graphics card memory: 1024 MB, Graphics card: Radeon HD 4250. LAN controller: Realtek RTL8112L, Networking features: Gigabit LAN, WLAN 802.11n
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS M4A88T-I Deluxe AMD 880G Socket AM3 mini ITX (M4A88T-IDELUXE) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS M4A88T-I Deluxe AMD 880G Socket AM3 mini ITX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS M4A88T-I Deluxe AMD 880G Socket AM3 mini ITX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the M4A88T-IDELUXE.
