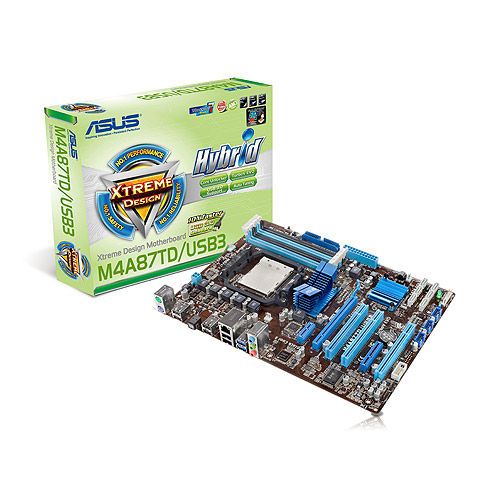

ASUS M4A87TD/USB3 AMD 870 (RX881) Socket AM3 ATX
Brand: ASUS · SKU: 90-MIBCM5-G0EAY0WZ · MPN: 90-MIBCM5-G0EAY0WZ · Category: Components
ASUS M4A87TD/USB3, AMD, Socket AM3, AMD Phenom II X2, AMD Phenom II X4, AMD Phenom II X6, 5.2 GT/s, 16 GB, Dual-channel. ASUS M4A87TD/USB3 AMD 870 (RX881) Socket AM3 ATX (part number 90-MIBCM5-G0EAY0WZ) is an enterprise components product available from Server Tech Central. Key specifications include depth 213 mm, width 305 mm, bios type AMI, pci slots 3, audio chip VIA VT1818, raid levels 0, 1, 5, 10, acpi version 2.0a, component for PC. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 213 mm |
|---|---|
| Width | 305 mm |
| BIOS type | AMI |
| PCI slots | 3 |
| Audio chip | VIA VT1818 |
| RAID levels | 0, 1, 5, 10 |
| ACPI version | 2.0a |
| Component for | PC |
| LAN controller | Realtek RTL8111E |
| Memory channels | Dual-channel |
| S/PDIF out port | Yes |
| System bus rate | 5.2 GT/s |
| BIOS memory size | 8 Mbit |
| Drivers included | Yes |
| Processor socket | Socket AM3 |
| CPU fan connector | Yes |
| Headphone outputs | 3 |
| Power source type | ATX |
| ECC сompatibility | ECC & Non-ECC |
| USB 2.0 connectors | 3 |
| Motherboard chipset | AMD 870 (RX881) |
| Networking features | Gigabit Ethernet |
| PS/2 ports quantity | 2 |
| Power fan connector | Yes |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 213 mm |
Product Description
This motherboard supports AMD® AM3 multi-core processors with unique L3 cache and delivers better overclocking capabilities with less power consumption. It features dual-channel DDR3 memory support and accelerates data transfer rate up to 5200MT/s via HyperTransport™ 3.0 based system bus. This motherboard also supports AMD® CPUs in the new 45nm manufacturing process. AMD 870 Chipset is designed to support up to 5200MT/s HyperTransport™ 3.0 (HT 3.0) interface speed and PCI Express™ 2.0 x16 graphics. It is optimized with AMD®’s latest AM3 and multi-core CPUs to provide excellent system performance and overclocking capabilities. Double Speed; Double Bandwidth This motherboard supports the latest PCIe 2.0 devices for double speed and bandwidth which enhances system performance. The motherboard supports DDR3 memory that features data transfer rates of 2000(O.C.)/ 1600/ 1333/ 1066 MHz to meet the higher bandwidth requirements of the latest 3D graphics, multimedia, and Internet applications. The dual-channel DDR3 architecture enlarges the bandwidth of your system memory to boost system performance. Intelligently Unlocks True Core Performance ASUS Core Unlocker simplifies the activation of a latent AMD® CPU—with just a simply switch. Enjoy an instant performance boost by simply unlocking the extra cores, without performing complicated BIOS changes. The AMD® SB850 Southbridge natively supports next-generation Serial ATA (SATA) storage interface, this motherboard delivers up to 6.0 Gb/s data transfer rates. Additionally, get enhanced scalability, faster data retrieval, double the bandwidth of current bus systems. Realize the True Future!! - TRUE USB 3.0 Support! Experience ultra-fast data transfers at 4.8 Gb/s with USB 3.0–the latest connectivity standard. Built to connect easily with next-generation components and peripherals, USB 3.0 transfers data 10X faster and is also backward compatible with USB 2.0 components.
Key Features
ASUS M4A87TD/USB3. Processor manufacturer: AMD, Processor socket: Socket AM3, Compatible processor series: AMD Phenom II X2, AMD Phenom II X4, AMD Phenom II X6. Maximum internal memory: 16 GB, Memory channels: Dual-channel, ECC сompatibility: ECC & Non-ECC. RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111E, Networking features: Gigabit Ethernet. Component for: PC, Motherboard form factor: ATX, Motherboard chipset: AMD 870 (RX881)
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ASUS M4A87TD/USB3 AMD 870 (RX881) Socket AM3 ATX (90-MIBCM5-G0EAY0WZ) is 100% genuine ASUS hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ASUS M4A87TD/USB3 AMD 870 (RX881) Socket AM3 ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ASUS M4A87TD/USB3 AMD 870 (RX881) Socket AM3 ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the 90-MIBCM5-G0EAY0WZ.
