JH049A, Aruba HP 527 Unified Walljack, 802.11ac/WW/Walljack

SKU: JH049A · MPN: JH049A · Category: Networking

JH049A, Aruba HP 527 Unified Walljack, 802.11ac/WW/Walljack
Request for Quote
In Stock • 10 units

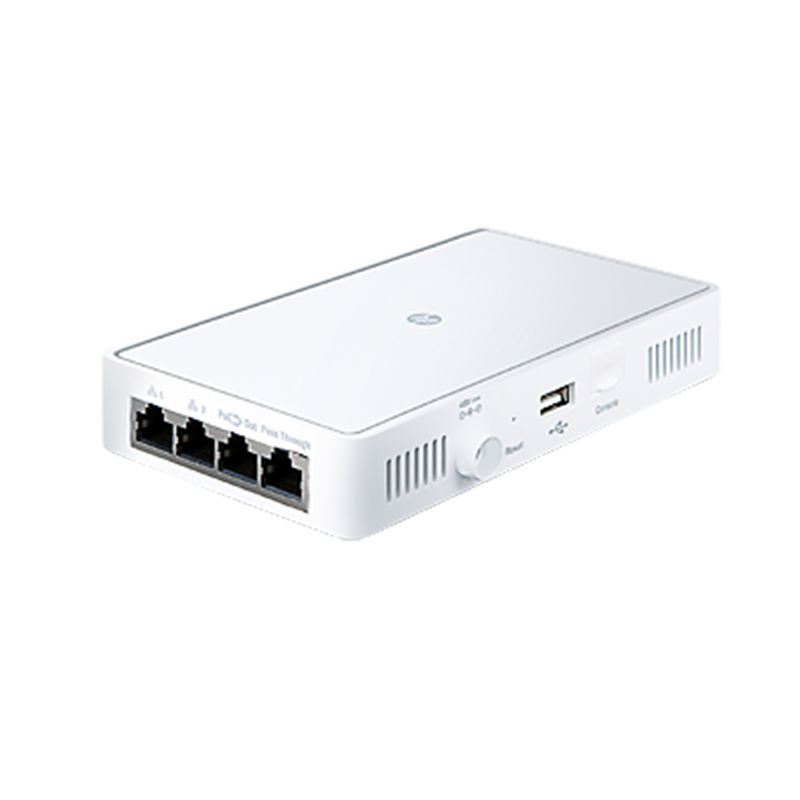

Aruba 527 802.11ac (WW) Unified Walljack

View Wireless APs Products

Specifications

TypeHP 527 Dual Radio 802.11ac (WW) Unified Wired-WLAN Walljack
Ports· 2 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only · 1 RJ-45 autosensing 10/100/1000 PoE port (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3af PoE); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only · 1 RJ-45 autosensing 10/100/1000 PoE+ port (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only · 1 RJ-45 pass through port
RadioFCC Part 15.247; FCC Part 15.407 (US); RSS-210 (Canada); EN 300 328; ARIB STD-T66; IDA Registration (Singapore); RCR STD-33; ARIB STD-T71 (Japan); EN 301 893 (EU); KCC approval (Korea)
SafetyUL 2043; UL 60950-1; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1
Weight0.77 lb (0.35 kg) mounting bracket
MedicalEN60601-1-2
MobilityIEEE 802.11a High Speed Physical Layer in the 5 GHz Band IEEE 802.11ac WLAN Enhancements for Very High Throughput IEEE 802.11b Higher-Speed Physical Layer Extension in the 2.4 GHz Band IEEE 802.11d Global Harmonization IEEE 802.11g Further Higher Data Rate Extension in the 2.4 GHz Band IEEE 802.11h Dynamic Frequency Selection IEEE 802.11i Medium Access Control (MAC) Security Enhancements IEEE 802.11n Dual Band WLAN Enhancements for Higher Throughput
Dimensions3.4(w) x 5.91(d) x 1.38(h) in (8.6 x 15 x 3.5 cm)
RF ExposureFCC Bulletin OET-65C; RSS-102; CFR 47, Part 2, Subpart J; ANSI/IEEE C95.1 (99); Ministry of Health Safety Code 6; Australian Radiation Protection Std.
Product TypeHP 527 Dual Radio 802.11ac (WW) Unified Wired-WLAN Walljack
AP characteristicsRadios (built-in): 802.11a/b/g/n/ac Radio operation modes: Client access, Packet capture AP operation modes: Controlled Wi-Fi Alliance: a/b/g/n/ac Wi-Fi Certified Antenna: (2) 2 dBi 2.4 GHz and (2) 2 dBi 5 GHz omnidirectional antennas Number of internal antennas: 4
Operating temperature32°F to 113°F (0°C to 45°C)
Mounting and enclosureIncludes mounting bracket and screws for wall installation.
Additional ports and slots1 USB 2.0
Electrical characteristicsDescription: Powered Device (PD): The HPE 527 Walljack, when powered through the uplink GbE PoE/PoE+ port, acts as a PoE PD complying with the IEEE 802.3af/at standards. The HPE 527 Walljack can also provide power to its USB 2.0 port (maximum 5V/0.5A output). Maximum power rating: 12.9 W without supplying power and 25.5 W supplying 802.3af power out the customer facing port
Operating relative humidity5% to 95%,
Frequency band and Operating channelsAmericas: 2.412 - 2.462 GHz (1 - 11 channels) 5.180 - 5.320 GHz (36 - 64 channels) 5.500 - 5.700 GHz (100 - 144 [excluding 5600-5650 MHz] channels) 5.745 - 5.825 GHz (149 - 165 channels) European Union: 2.412 - 2.472 GHz (1 - 13 channels) 5.180 - 5.320 GHz (36 - 64 channels) 5.500 - 5.700 GHz (100 - 140 [excluding 5600-5650 MHz] channels) Taiwan: 2.412 - 2.472 GHz (1 - 13 channels) 5.280 - 5.320 GHz (56 - 64 channels) 5.500 - 5.700 GHz (100 - 144 [excluding 5600-5650 MHz] channels) 5.745 - 5.825 GHz (149 - 165 channels) Japan: 2.412 - 2.472 GHz (1 - 13 channels) 5.180 - 5.320 GHz (36 - 64 channels) 5.500 - 5.700 GHz (100 - 140 channels) Israel: 2.412 - 2.472 GHz (1 - 13 channels) 5.180 - 5.320 GHz (36 - 64 channels) Rest of World (Actual channels designated by selecting country in UI): 2.412 - 2.472 GHz (1 - 13 channels) 5.180 - 5.320 GHz (36 - 64 channels) 5.500 - 5.700 GHz (100 - 144 channels) 5.745 - 5.825 GHz (149 - 165 channels)
Non-operating/ Storage relative humidity5% to 95%, noncondensing
noncondensing Non-operating/ Storage temperature-40°F to 158°F (-40°C to 70°C)
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.
