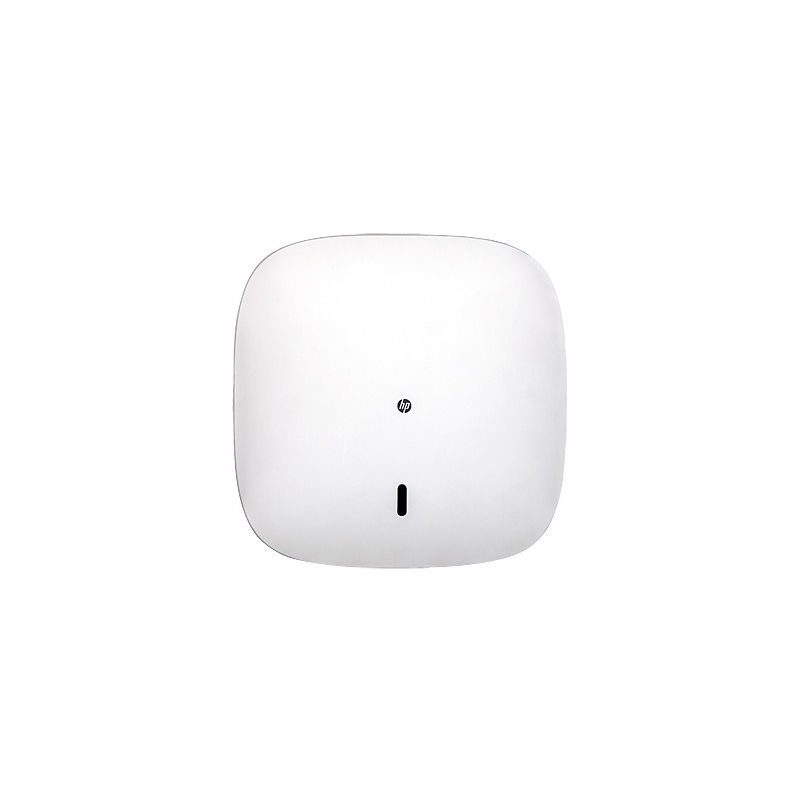

JG998A, HPE 525 Wireless AP, 8-Pack 802.11ac/Worldwide/No PSU
SKU: JG998A · MPN: JG998A · Category: Networking
Request for Quote
In Stock • 10 units
HP 525 Wireless 802.11ac (WW) 8 Pack AP
Specifications
| Type | HP 525 Wireless Dual Radio 802.11ac (WW) 8-unit Eco-pack Access Points |
|---|---|
| Ports | · 1 RJ-45 autosensing 10/100/1000 PoE port (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3af PoE); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only · 1 RJ-45 autosensing 10/100/1000 port (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only |
| Radio | FCC Part 15.247; FCC Part 15.407 (US); RSS-210 (Canada); EN 300 328; ARIB STD-T66; IDA Registration (Singapore); RCR STD-33; ARIB STD-T71 (Japan); EN 301 893 (EU); KCC approval (Korea) |
| Safety | UL 2043; UL 60950-1; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1 |
| Weight | 1.65 lb (0.75 kg) mounting bracket |
| Medical | EN60601-1-2 |
| Mobility | IEEE 802.11a High Speed Physical Layer in the 5 GHz Band IEEE 802.11ac WLAN Enhancements for Very High Throughput IEEE 802.11b Higher-Speed Physical Layer Extension in the 2.4 GHz Band IEEE 802.11d Global Harmonization IEEE 802.11g Further Higher Data Rate Extension in the 2.4 GHz Band IEEE 802.11h Dynamic Frequency Selection IEEE 802.11i Medium Access Control (MAC) Security Enhancements IEEE 802.11n WLAN Enhancements for Higher Throughput |
| Dimensions | 8.66(w) x 8.66(d) x 2.36(h) in (22 x 22 x 6 cm) |
| RF Exposure | FCC Bulletin OET-65C; RSS-102; CFR 47, Part 2, Subpart J; ANSI/IEEE C95.1 (99); Ministry of Health Safety Code 6; Australian Radiation Protection Std. |
| Product Type | HP 525 Wireless Dual Radio 802.11ac (WW) 8-unit Eco-pack Access Points |
| AP characteristics | Radios (built-in): 802.11b/g/n, a/n/ac Radio operation modes: Client access, Local mesh, Packet capture AP operation modes: Controlled Wi-Fi Alliance: a/b/g/n/ac Wi-Fi Certified Antenna: (2) 4 dBi 2.4 GHz and (2) 5 dBi 5 GHz omnidirectional antennas Number of internal antennas: 4 Number of external antennas: 4 |
| Memory and processor | Single core @ 720 MHz, 128 MB flash, 256 MB SDRAM |
| Operating temperature | 32°F to 113°F (0°C to 45°C) |
| Mounting and enclosure | Indoor, plenum rated; Includes ceiling/wall mount kit as well as two ceiling mounting clips |
| Additional ports and slots | 1 RJ-45 serial console port |
| Electrical characteristics | Description: IEEE 802.3af PoE compliant for Gigabit Ethernet Maximum power rating: 12.9 W Notes: Optional 48V DC power supply |
| Operating relative humidity | 5% to 95%, noncondensing |
| Frequency band and Operating channels | Americas: 2.412 - 2.462 GHz (1 - 11 channels) 5.180 - 5.320 GHz (36 - 64 channels) 5.500 - 5.700 GHz (100 - 144 [excluding 5600-5650 MHz] channels) 5.745 - 5.825 GHz (149 - 165 channels) European Union: 2.412 - 2.472 GHz (1 - 13 channels) 5.180 - 5.320 GHz (36 - 64 channels) 5.500 - 5.700 GHz (100 - 140 [excluding 5600-5650 MHz] channels) Taiwan: 2.412 - 2.472 GHz (1 - 13 channels) 5.280 - 5.320 GHz (56 - 64 channels) 5.500 - 5.700 GHz (100 - 144 [excluding 5600-5650 MHz] channels) 5.745 - 5.825 GHz (149 - 165 channels) Japan: 2.412 - 2.472 GHz (1 - 13 channels) 5.180 - 5.320 GHz (36 - 64 channels) 5.500 - 5.700 GHz (100 - 140 channels) Israel: 2.412 - 2.472 GHz (1 - 13 channels) 5.180 - 5.320 GHz (36 - 64 channels) Rest of World (Actual channels designated by selecting country in UI): 2.412 - 2.472 GHz (1 - 13 channels) 5.180 - 5.320 GHz (36 - 64 channels) 5.500 - 5.700 GHz (100 - 144 channels) 5.745 - 5.825 GHz (149 - 165 channels) |
| Non-operating/ Storage relative humidity | 5% to 95%, noncondensing |
| noncondensing Non-operating/ Storage temperature | -40°F to 158°F (-40°C to 70°C) |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this JG998A, HPE 525 Wireless AP, 8-Pack 802.11ac/Worldwide/No PSU (JG998A) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This JG998A, HPE 525 Wireless AP, 8-Pack 802.11ac/Worldwide/No PSU includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the JG998A, HPE 525 Wireless AP, 8-Pack 802.11ac/Worldwide/No PSU compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the JG998A.
