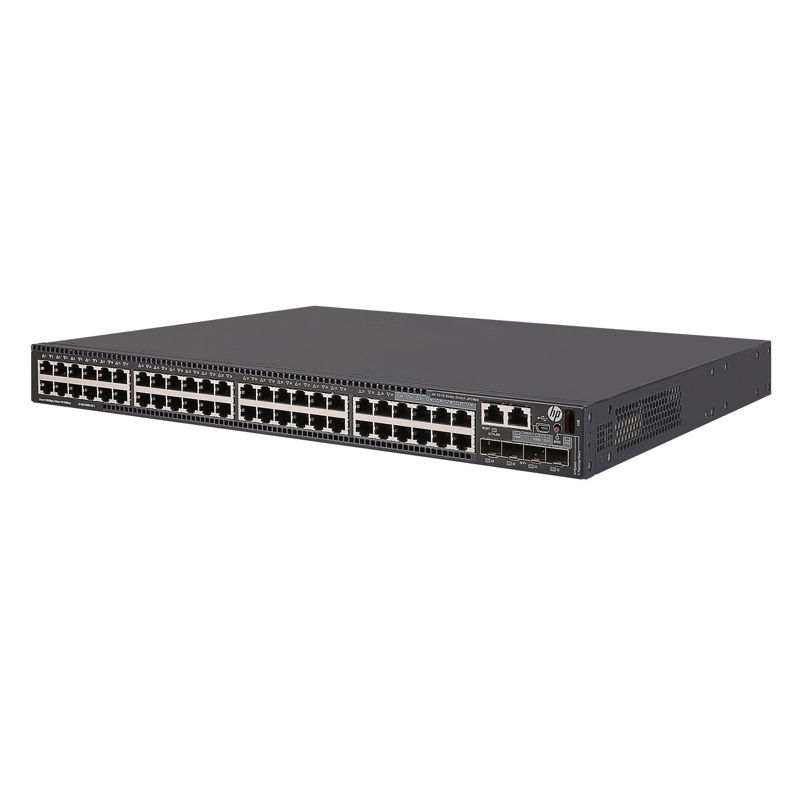

JH146A, HPE 5510 Switch, 48xGE/4xSFP+

SKU: JH146A · MPN: JH146A · Category: Networking

JH146A, HPE 5510 Switch, 48xGE/4xSFP+
Request for Quote
In Stock • 10 units

HPE 5510 48G 4SFP+ HI Switch

View Switches Products

Specifications

TypeHPE FlexNetwork 5510 48G 4SFP+ HI 1-slot Switch
SafetyUL 60950-1 EN 60825-1 Safety of Laser Products-Part 1 EN 60825-2 Safety of Laser Products-Part 2 IEC 60950-1 EN 60950-1 CAN/CSA-C22.2 No. 60950-1 FDA 21 CFR Subchapter J ROHS Compliance AS/NZS 60950-1 GB 4943 EAC (EurAsian Conformity Certification)
Weight7.5 kg (16.53 lb)
Voltage100 - 240 V ac, rated (90 - 264 Vac, max) -48 to -60 V dc, rated (-36 to -72 V dc, max) (depending on power supply chosen)
AcousticLow-speed fan: 49.9 dB, High-speed fan: 64.8 dB ISO 7779
ImmunityGeneric: EN 55024 ESD: EN300 386
EmissionsEMC Directive 2004/108/EC FCC (CFR 47, Part 15) Class A EN 61000-4-11:2004 ANSI C63.4-2009 EN 61000-3-3:2008 VCCI V-3/2012.04 EN 61000-3-2:2006+A1:2009+A2:2009 EN 61000-4-3:2006 EN 61000-4-4:2012; EN 61000-4-5:2006 EN 61000-4-6:2009 CISPR 22:2008 Class A EN 55022:2010 Class A EN 61000-4-29: 2000 CISPR 24:2010 EN 300 386 V1.6.1 VCCI V-3/2013.04 Class A
Frequency50/60 Hz
PoE powerNA
Idle power70 W
ManagementIMC - Intelligent Management Center Command-line interface Web browser SNMP manager
Throughputup to 250 Mp/s
Product TypeHPE FlexNetwork 5510 48G 4SFP+ HI 1-slot Switch
10 Gbps Latency< 3 &mu;s
1000 Mb Latency< 5 &mu;s
Routing table sizeIPv4: 32768 entries IPv6: 16384 entries
I/O ports and slots&middot; 48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) &middot; Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only; Ports 1 - 8 support MACSec &middot; 4 SFP+ 10GbE ports &middot; 1 port expansion module slot &middot; Supports a maximum of 6 SFP+ ports or 2 1/10GBASE-T ports or 2 40GbE ports, with optional module
Maximum power rating150 W
Operating temperature0&deg;C to 45&deg;C (32&deg;F to 113&deg;F)
Dimensions (W x D x H)44.00 x 36.00 x 4.37 cm (17.32 x 14.17 x 1.72 in)
MAC address table size32768 entries
Maximum heat dissipation238 BTU/hr (686.81 kJ/hr), Ranges from 201 BTU/hr to 443 BTU/hr, depending on power supply configuration
Additional ports and slots&middot; 1 dual-personality (RJ-45 or USB micro-B) serial console port &middot; 1 RJ-45 out-of-band management port &middot; 1 USB 2.0
Routing/Switching capacity336 Gb/s
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this JH146A, HPE 5510 Switch, 48xGE/4xSFP+ (JH146A) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This JH146A, HPE 5510 Switch, 48xGE/4xSFP+ includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the JH146A, HPE 5510 Switch, 48xGE/4xSFP+ compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the JH146A.
