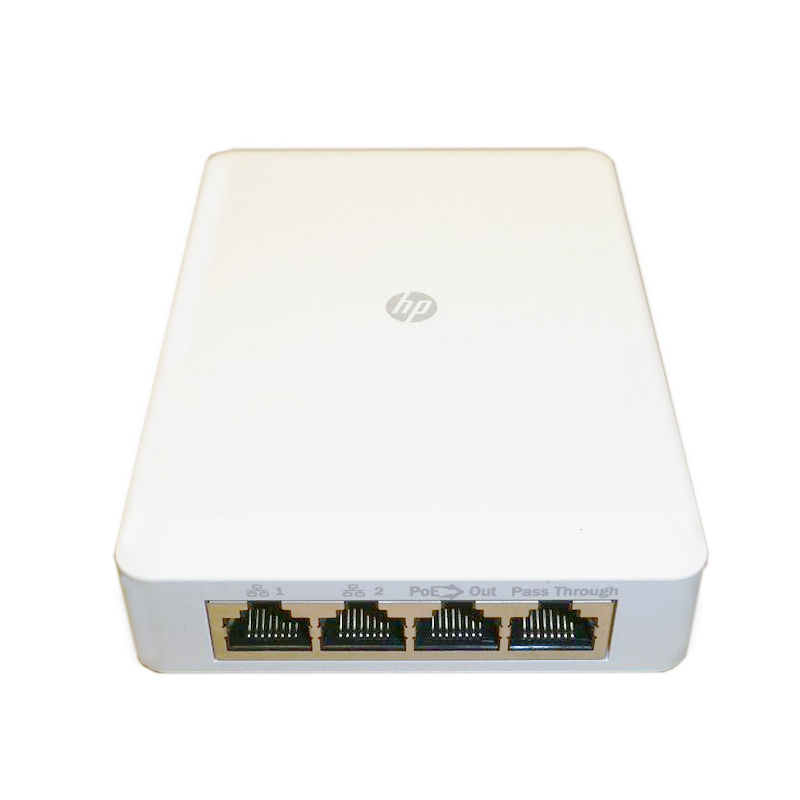

JG972A, HPE 417 Unified Walljack, 802.11n/Wall-mount/Worldwide

SKU: JG972A · MPN: JG972A · Category: Networking

JG972A, HPE 417 Unified Walljack, 802.11n/Wall-mount/Worldwide
Request for Quote
In Stock • 10 units

HP 417 802.11n (WW) Unified Walljack

View Wireless APs Products

Specifications

TypeHP 417 Single Radio 802.11n (WW) Unified Wired-WLAN Walljack
Ports· 1 RJ-45 auto-negotiating 10/100/1000 PoE port (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3af PoE) · 2 RJ-45 autosensing 10/100 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX); Duplex: half or full · 1 RJ-45 autosensing 10/100 PoE port (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3af PoE); Duplex: half or full · 1 RJ-45 pass through port
RadioEN 300 328; ARIB STD-T66; RSS-Gen (Canada); IDA (Singapore); OFTA (Hong Kong); DSPR (Japan); RCR STD-33; RSS-210; FCC Parts 15.207, 15.209 & 15.247 (US); MSIP (Korea).
SafetyUL 60950-1; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1
Weight0.42 lb (0.19 kg)
MedicalEN60601-1-2
Altitudeup to 13,123 ft (4 km)
MobilityIEEE 802.11b Higher-Speed Physical Layer Extension in the 2.4 GHz Band IEEE 802.11g Further Higher Data Rate Extension in the 2.4 GHz Band IEEE 802.11i Medium Access Control (MAC) Security Enhancements IEEE 802.11d Global Harmonization IEEE 802.11h Dynamic Frequency Selection IEEE 802.11n Dual Band WLAN Enhancements for Higher Throughput
EmissionsEN 55022 Class B; EN 60601-1-2; EN 301 489-1; EN 301 489-17; ICES-003 Class B; FCC Part 15, Class B
Dimensions3.39(w) x 0.98(d) x 4.72(h) in (8.6 x 2.49 x 12 cm)
RF ExposureFCC Bulletin OET-65C; RSS-102; EN 50385; CFR 47, Part 2, Subpart J; ANSI/IEEE C95.1 (99); Ministry of Health Safety Code 6; Australian Radiation Protection Std.
Product TypeHP 417 Single Radio 802.11n (WW) Unified Wired-WLAN Walljack
AP characteristicsRadios (built-in): 802.11b/g/n Radio operation modes: Client access, Packet capture AP operation modes: Controlled Wi-Fi Alliance: b/g/n Wi-Fi Certified Antenna: Internal omnidirectional antenna Number of internal antennas: 2
Memory and processorSingle core @ 560 MHz, 128 MB flash, 128 MB SDRAM
Operating temperature32°F to 113°F (0°C to 45°C)
Mounting and enclosureIndoor; Designed for mounting in a standard wall outlet box or on optional Flush Mount / Desktop Mount kit.
Electrical characteristicsDescription: Powered Device (PD): The device will be powered by any standard IEEE 802.3af PoE source and with PoE it will provide Class 1 or 2 on port 3. To provide Class 3 PoE output on port 3, the unit must be powered via IEEE 802.3at PoE+ power. DC voltage: Powered by PoE Maximum power rating: 6 W
Operating relative humidity5% to 95%,
Frequency band and Operating channels· Americas 2.412 - 2.462 GHz (1 - 11 channels) · Rest of World (non Americas countries) 2.412 - 2.472 GHz (1 - 13 channels)
Non-operating/ Storage relative humidity5% to 95%, noncondensing
noncondensing Non-operating/ Storage temperature-40°F to 158°F (-40°C to 70°C)
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this JG972A, HPE 417 Unified Walljack, 802.11n/Wall-mount/Worldwide (JG972A) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This JG972A, HPE 417 Unified Walljack, 802.11n/Wall-mount/Worldwide includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the JG972A, HPE 417 Unified Walljack, 802.11n/Wall-mount/Worldwide compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the JG972A.
