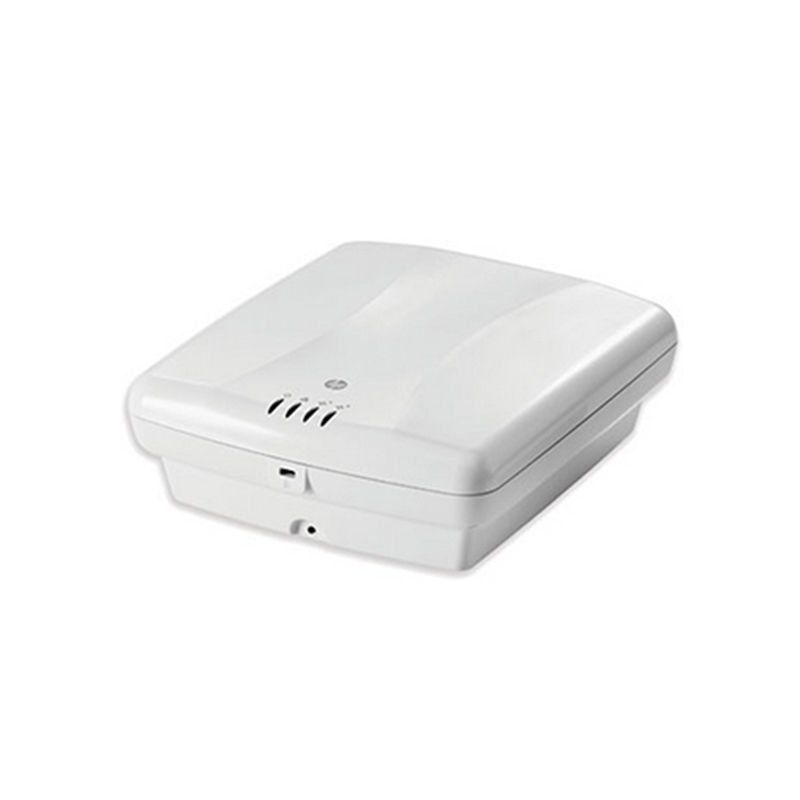

J9846A, HPE HP 560 Wireless AP, 802.11ac/2xGE/No PSU
SKU: J9846A · MPN: J9846A · Category: Components
Specifications
| Type | HP 560 Wireless Dual Radio 802.11ac (WW) Access Point |
|---|---|
| Ports | 1 RJ-45 autosensing 10/100/1000 port (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only |
| Radio | FCC Part 15.247; FCC Part 15.407 (US); RSS-210 (Canada); EN 300 328; ARIB STD-T66; IDA Registration (Singapore); RCR STD-33; ARIB STD-T71 (Japan); EN 301 893 (EU); KCC approval (Korea) |
| Safety | UL 2043; UL 60950-1; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1 |
| Weight | 2.25 lb (1.02 kg) |
| Medical | EN60601-1-2 |
| Altitude | up to 10,000 ft (3 km) |
| Mobility | IEEE 802.11a High Speed Physical Layer in the 5 GHz Band IEEE 802.11ac WLAN Enhancements for Very High Throughput IEEE 802.11b Higher-Speed Physical Layer Extension in the 2.4 GHz Band IEEE 802.11d Global Harmonization IEEE 802.11g Further Higher Data Rate Extension in the 2.4 GHz Band IEEE 802.11h Dynamic Frequency Selection IEEE 802.11i Medium Access Control (MAC) Security Enhancements IEEE 802.11n WLAN Enhancements for Higher Throughput |
| Dimensions | 8(w) x 6.75(d) x 2.62(h) in (20.32 x 17.15 x 6.65 cm) |
| RF Exposure | FCC Bulletin OET-65C; RSS-102; CFR 47, Part 2, Subpart J; ANSI/IEEE C95.1 (99); Ministry of Health Safety Code 6; Australian Radiation Protection Std. |
| Product Type | HP 560 Wireless Dual Radio 802.11ac (WW) Access Point |
| AP characteristics | Radios (built-in): 802.11b/g/n, a/n/ac Radio operation modes: Client access, Local mesh, Packet capture AP operation modes: Autonomous and controlled Wi-Fi Alliance: a/b/g/n/ac Wi-Fi Certified Antenna: (3) 5 dBi 2.4 GHz and (3) 7 dBi 5 GHz Number of internal antennas: 6 |
| Memory and processor | Dual core @ 800 MHz, 128 MB flash, 256 MB SDRAM |
| Operating temperature | 32°F to 122°F (0°C to 50°C) |
| Mounting and enclosure | Indoor, plenum rated; Includes two ceiling mounting clips |
| Additional ports and slots | 1 RJ-45 serial console port |
| Electrical characteristics | Description: IEEE 802.3af/802.3at PoE compliant for Gigabit Ethernet Maximum power rating: 14 W PoE Power: 13 W PoE+ Notes: With 802.3af PoE, the 2.4GHz radio will operate in 2x2:2 MIMO mode, < 12.9watts; With 802.3at PoE+, both radios will operate in 3x3:3 MIMO mode, < 14watts |
| Operating relative humidity | 5% to 95%, noncondensing |
| Frequency band and Operating channels | Americas: 2.412 - 2.462 GHz (1 - 11 channels) 5.180 - 5.320 GHz (36 - 64 channels) 5.500 - 5.700 GHz (100 - 144 [excluding 5600-5650 MHz] channels) 5.745 - 5.825 GHz (149 - 165 channels) European Union: 2.412 - 2.472 GHz (1 - 13 channels) 5.180 - 5.320 GHz (36 - 64 channels) 5.500 - 5.700 GHz (100 - 140 [excluding 5600-5650 MHz] channels) Taiwan: 2.412 - 2.472 GHz (1 - 13 channels) 5.280 - 5.320 GHz (56 - 64 channels) 5.500 - 5.700 GHz (100 - 144 [excluding 5600-5650 MHz] channels) 5.745 - 5.825 GHz (149 - 165 channels) Japan: 2.412 - 2.472 GHz (1 - 13 channels) 5.180 - 5.320 GHz (36 - 64 channels) 5.500 - 5.700 GHz (100 - 140 channels) Israel: 2.412 - 2.472 GHz (1 - 13 channels) 5.180 - 5.320 GHz (36 - 64 channels) Rest of World (Actual channels designated by selecting country in UI): 2.412 - 2.472 GHz (1 - 13 channels) 5.180 - 5.320 GHz (36 - 64 channels) 5.500 - 5.700 GHz (100 - 144 channels) 5.745 - 5.825 GHz (149 - 165 channels) |
| Non-operating/ Storage relative humidity | 5% to 95%, noncondensing |
| noncondensing Non-operating/ Storage temperature | -40°F to 158°F (-40°C to 70°C) |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this J9846A, HPE HP 560 Wireless AP, 802.11ac/2xGE/No PSU (J9846A) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This J9846A, HPE HP 560 Wireless AP, 802.11ac/2xGE/No PSU includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the J9846A, HPE HP 560 Wireless AP, 802.11ac/2xGE/No PSU compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the J9846A.
