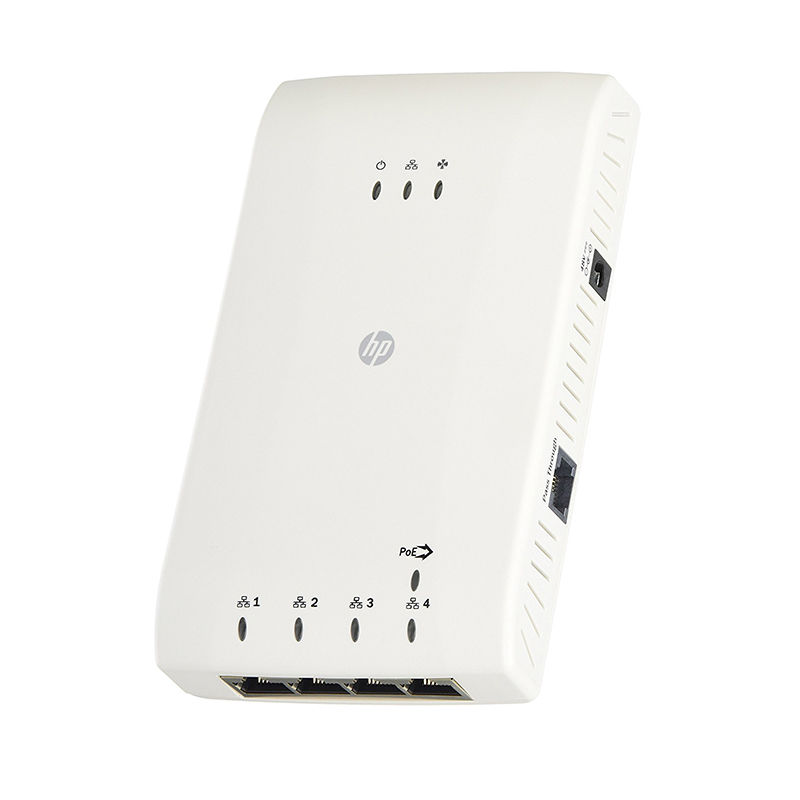

J9842A, HPE 517 Unified Walljack, 802.11ac/Wall Port/Worldwide
SKU: J9842A · MPN: J9842A · Category: Networking
Request for Quote
In Stock • 10 units
HP 517 802.11ac (WW) Unified Walljack
Specifications
| Type | HPE 517 Single Radio 802.11ac (WW) Unified Wired-WLAN Walljack |
|---|---|
| Ports | · 4 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only · 1 RJ-45 pass through port |
| Radio | FCC Part 15.247; FCC Part 15.407 (US); RSS-210 (Canada); EN 300 328; EN 301-489-1; EN 301-489-17; ARIB STD-T66; RSS-Gen (Canada); OFTA (Hong Kong); DSPR (Japan); IDA Registration (Singapore); MIC approval (Korea); RCR STD-33; ARIB STD-T71 (Japan); EN 301 893 (EU); KCC approval (Korea) |
| Safety | UL 60950-1; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1 |
| Weight | 0.73 lb (0.33 kg) |
| Medical | EN60601-1-2 |
| Mobility | IEEE 802.11a High Speed Physical Layer in the 5 GHz Band IEEE 802.11ac WLAN Enhancements for Very High Throughput IEEE 802.11b Higher-Speed Physical Layer Extension in the 2.4 GHz Band IEEE 802.11d Global Harmonization IEEE 802.11g Further Higher Data Rate Extension in the 2.4 GHz Band IEEE 802.11h Dynamic Frequency Selection |
| Dimensions | 3.54(w) x 1.5(d) x 6.1(h) in (9 x 3.8 x 15.49 cm) |
| RF Exposure | FCC Bulletin OET-65C; RSS-102; CFR 47, Part 2, Subpart J; ANSI/IEEE C95.1 (99); Ministry of Health Safety Code 6; Australian Radiation Protection Std. |
| Product Type | HPE 517 Single Radio 802.11ac (WW) Unified Wired-WLAN Walljack |
| AP characteristics | Radios (built-in): 802.11a/b/g/n/ac Radio operation modes: Client access, Packet capture AP operation modes: Controlled Wi-Fi Alliance: a/b/g/n/ac Wi-Fi Certified Antenna: Internal omnidirectional antenna Number of internal antennas: 3 |
| Operating temperature | 32°F to 104°F (0°C to 40°C) |
| Mounting and enclosure | Indoor; Designed for mounting in a standard wall outlet box or on optional Flush Mount / Desktop Mount kit. |
| Electrical characteristics | Description: Powered Device (PD): The device will be powered by any standard IEEE 802.3af PoE source. To provide PoE output, the unit must be powered via IEEE 802.3at PoE+ or via local power. |
| Operating relative humidity | 5% to 95%, |
| Frequency band and Operating channels | Americas: 2.412 - 2.462 GHz (1 - 11 channels) 5.180 - 5.320 GHz (36 - 64 channels) 5.500 - 5.700 GHz (100 - 144 [excluding 5600-5650 MHz] channels) 5.745 - 5.825 GHz (149 - 165 channels) European Union: 2.412 - 2.472 GHz (1 - 13 channels) 5.180 - 5.320 GHz (36 - 64 channels) 5.500 - 5.700 GHz (100 - 140 [excluding 5600-5650 MHz] channels) Taiwan: 2.412 - 2.472 GHz (1 - 13 channels) 5.280 - 5.320 GHz (56 - 64 channels) 5.500 - 5.700 GHz (100 - 144 [excluding 5600-5650 MHz] channels) 5.745 - 5.825 GHz (149 - 165 channels) Japan: 2.412 - 2.472 GHz (1 - 13 channels) 5.180 - 5.320 GHz (36 - 64 channels) 5.500 - 5.700 GHz (100 - 140 channels) Israel: 2.412 - 2.472 GHz (1 - 13 channels) 5.180 - 5.320 GHz (36 - 64 channels) Rest of World (Actual channels designated by selecting country in UI): 2.412 - 2.472 GHz (1 - 13 channels) 5.180 - 5.320 GHz (36 - 64 channels) 5.500 - 5.700 GHz (100 - 144 channels) 5.745 - 5.825 GHz (149 - 165 channels) |
| Non-operating/ Storage relative humidity | 5% to 95%, noncondensing |
| noncondensing Non-operating/ Storage temperature | -4°F to 158°F (-20°C to 70°C) |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this J9842A, HPE 517 Unified Walljack, 802.11ac/Wall Port/Worldwide (J9842A) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This J9842A, HPE 517 Unified Walljack, 802.11ac/Wall Port/Worldwide includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the J9842A, HPE 517 Unified Walljack, 802.11ac/Wall Port/Worldwide compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the J9842A.
