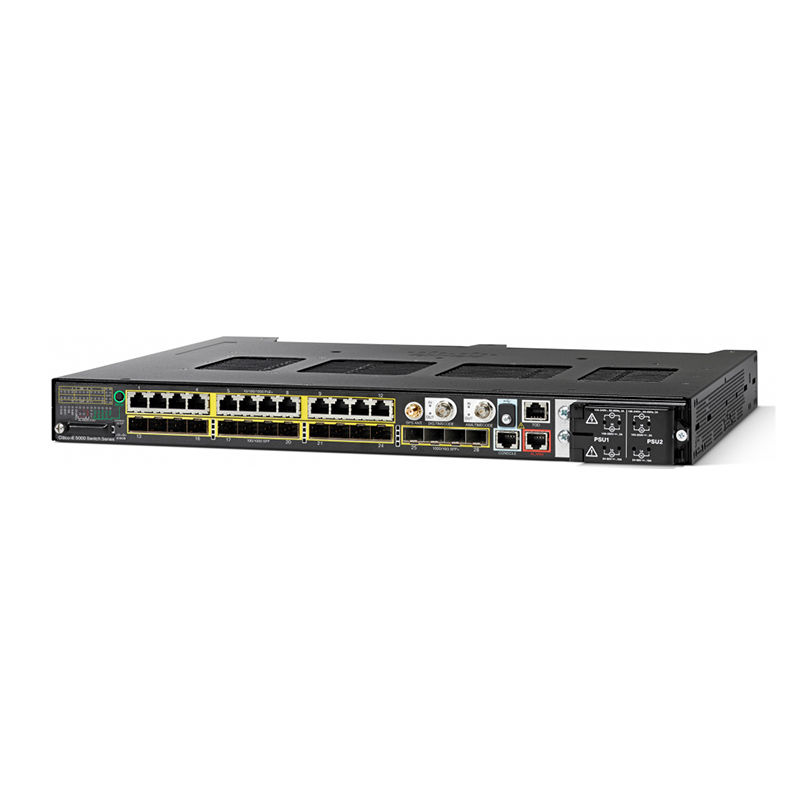

IE-5000-16S12P, Cisco IE5000 Switch, 16x1G SFP/12x1G LAN/Layer 2

SKU: IE-5000-16S12P · MPN: IE-5000-16S12P · Category: Networking

IE-5000-16S12P, Cisco IE5000 Switch, 16x1G SFP/12x1G LAN/Layer 2
$4,209.92
In Stock • 10 units

IE5000 16x1G SFP and 12x10/100/1000 LAN BASE

View Transceivers & Optics Products

Specifications

Alarm● Alarm I/O: four alarm inputs to detect dry contact open or closed, one Form C alarm output relay
Weight● Without Power Supply: 13.7 lb (6.21 kg) ● PWR-RGD-AC-DC-H: 2.55 lb (1.16kg) ● PWR-RGD-LOW-DC-H -H: 2.5 lb (1.13kg) ● PWR-RGD-AC-DC-250: 3.1 lb (1.4 kg)
Uplinks4 SFP/SFP+ (1G)
Hardware● 1-GB DRAM ● 256-MB onboard flash memory ● 1-GB removable SD flash memory card ● Mini-USB connector ● RJ-45 traditional console connector ● GPS antenna interface (needs future software support) - GPS antenna input ● Analog Timing I/O interface (needs future software support) - For analog IRIG support ● Digital Timing I/O interface (needs future software support) - For digital timing such as IRIG-B TTL ● TOD interface (needs future software support) - Cisco Time-of-Day port to provide RS422 1 PPS, IRIG-B TTL or IOS-8601 and NMEA Time-of-Day support
Accessories● SD-IE-1GB= - Spare SD card
Total ports28
Forwarding rate41.67Mpps (IE-5000-16S12P) or 95.238Mpps (IE-5000-12S12P-10G) with 64 byte packets (Line rate)
NAT translationBidirectional, 256 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly
Number of VLANs1,005
Default softwareLAN Base
Number of queues4 egress
Power consumption● Maximum of 90W not including PoE consumption
SFP fiber ports (S)12 (FE/GE)
Switching bandwidth56Gbps (IE-5000-16S12P) or 128Gbps (IE-5000-12S12P-10G)
Forwarding bandwidth28Gbps (IE-5000-16S12P) or 64Gbps (IE-5000-12S12P-10G) - Line rate/Non-blocking
IGMP multicast groups1,000
Unicast MAC addresses16,000
Dimensions (H x W x D)● 1.75 x 17.5 x 14.0 in. (4.45 x 44.5 x 35.6 cm), 1 RU (rack unit) height with PWR-RGD-AC-DC-H / PWR-RGD-LOW-DC-H ● 1.75 x 17.5 x 15.18 in. (4.45 x 44.5 x 38.56 cm), 1 RU (rack unit) height with PWR-RGD-AC-DC-250
IPv4 MAC security ACEs1,000 with default TCAM Template
Copper 10/100/1000 PoE/PoE+ ports12 (10/100/1000M)
Warranty3-Year Warranty

Key Features

  • OEM Genuine Component verified by certified technicians.
  • Clean serial number ready for service contract registration.
  • Electrostatic Discharge (ESD) safe packaging.
  • Supports hot-swapping for zero-downtime maintenance.
