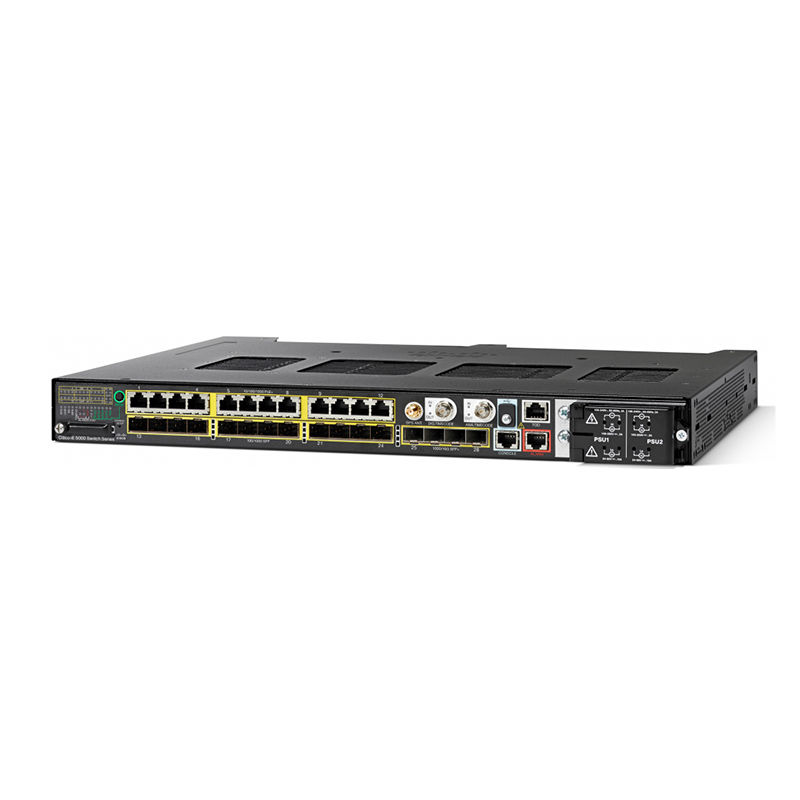

IE-5000-12S12P-10G, Cisco IE5000 Switch, 12x1G SFP+/12x10/100/1000/4x10G
Brand: Cisco · SKU: IE-5000-12S12P-10G · MPN: IE-5000-12S12P-10G · Category: Networking
Cisco IE5000-12S12P 10G is an industrial Ethernet switch with 12 Gigabit SFP ports, 12 Gigabit copper ports, and 4 10G interfaces for demanding industrial and enterprise networks.
Specifications
| Alarm | Alarm I/O: four alarm inputs to detect dry contact open or closed, one Form C alarm output relay |
|---|---|
| Model | IE-5000-12S12P-10G |
| Uplinks | 4 SFP/SFP+ (1G/10G) |
| Hardware | 1-GB DRAM 256-MB onboard flash memory 1-GB removable SD flash memory card Mini-USB connector RJ-45 traditional console connector GPS antenna interface (needs future software support) - GPS antenna input Analog Timing I/O interface (needs future software support) - For analog IRIG support Digital Timing I/O interface (needs future software support) - For digital timing such as IRIG-B TTL TOD interface (needs future software support) - Cisco Time-of-Day port to provide RS422 1 PPS, IRIG-B TTL or IOS-8601 and NMEA Time-of-Day support |
| Accessories | SD-IE-1GB= - Spare SD card |
| Total ports | 28 |
| Forwarding rate | 41.67Mpps (IE-5000-16S12P) or 95.238Mpps (IE-5000-12S12P-10G) with 64-byte packets (Line rate) |
| NAT translation | Bidirectional, 256 unique subnet NAT translation entries, which can expand to tens of thousands of translated entries if designed properly |
| Number of VLANs | 1,005 |
| Default software | LAN Base |
| Number of queues | 4 egress |
| Power consumption | Maximum of 90W not including PoE consumption |
| SFP fiber ports (S) | 12 (FE/GE) |
| Switching bandwidth | 56Gbps (IE-5000-16S12P) or 128Gbps (IE-5000-12S12P-10G) |
| Forwarding bandwidth | 28Gbps (IE-5000-16S12P) or 64Gbps (IE-5000-12S12P-10G) - Line rate/Non-blocking |
| IGMP multicast groups | 1,000 |
| Unicast MAC addresses | 16,000 |
| Dimensions (H x W x D) | 1.75 x 17.5 x 14.0 in. (4.45 x 44.5 x 35.6 cm), 1 RU (rack unit) height with PWR-RGD-AC-DC-H / PWR-RGD-LOW-DC-H 1.75 x 17.5 x 15.18 in. (4.45 x 44.5 x 38.56 cm), 1 RU (rack unit) height with PWR-RGD-AC-DC-250 |
| IPv4 MAC security ACEs | 1,000 with default TCAM Template |
| Copper 10/100/1000 PoE/PoE+ ports | 12 (10/100/1000M) |
| Warranty | 3-Year Warranty |
Key Features
The Cisco IE5000-12S12P 10G is a ruggedized Cisco Industrial Ethernet 5000 Series switch designed for industrial networking, critical infrastructure, transportation, utilities, and enterprise environments requiring reliable Ethernet connectivity. Its combination of 12 × 1G SFP ports, 12 × 10/100/1000 Ethernet ports, and 4 × 10G interfaces provides flexible connectivity for fiber-based infrastructure, copper Ethernet devices, servers, uplinks, and high-bandwidth network equipment.
