Brand: Cisco · SKU: IE-4000-8T4G-E · MPN: IE-4000-8T4G-E · Category: Networking

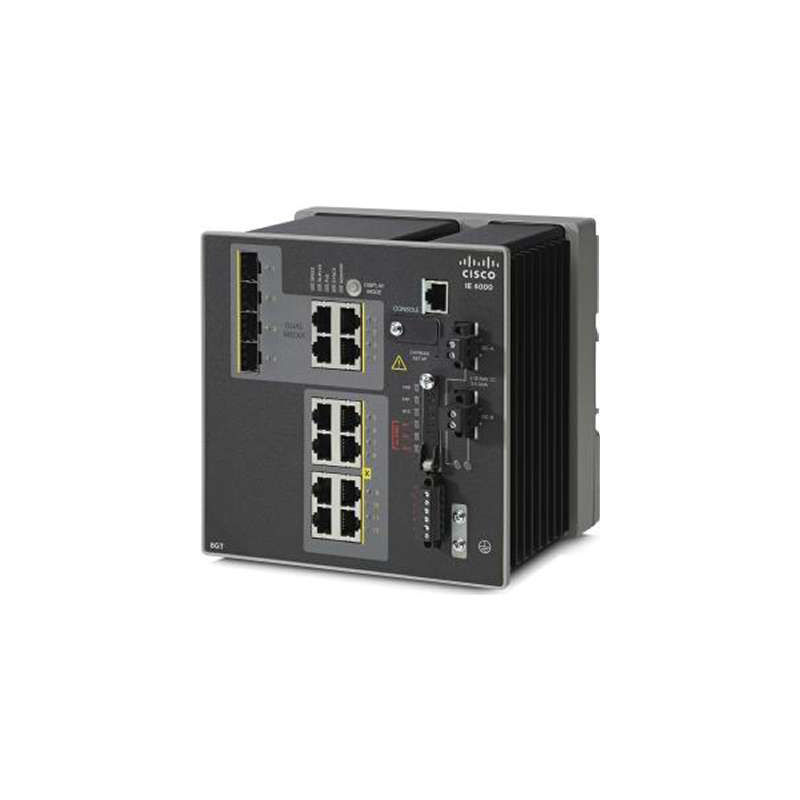

The Cisco IE-4000-8T4G-E is a ruggedized industrial Ethernet switch from the IE 4000 Series, designed for harsh environments such as manufacturing, energy, transportation, and smart cities. It features 8 x RJ45 10/100M Fast Ethernet ports and 4 x 1G Combo uplinks (which provide one copper and one fiber physical port, only one can be activated at a time). It ships with the LAN Base feature set, which can be upgraded to IP Services. Key features include built-in software image verification for authenticity, advanced security features (like IEEE 802.1x, MACsec, ACLs), dual DC power inputs (nominal 9.6 to 60VDC), and support for Cisco Resilient Ethernet Protocol (REP). It is managed via a web interface, CLI, SNMP, and supports Cisco Industrial Network Director (IND) and Cisco IOx for edge applications.
| DRAM | 1GB |
|---|---|
| Power Input | Redundant DC input voltage with operating range: nominal 9.6 to 60VDC |
| Flash Memory | 128-MB onboard flash memory |
| Forwarding Rate | Up to 17.86 Mpps |
| Power Consumption | 35W |
| Port Configuration | 8 x RJ45 10/100M + 4 x 1G Combo Uplinks |
| Switching Capacity | Up to 24 Gbps (or 20 Gbps non-blocking - note potential discrepancy in sources) |
| Software Feature Set | LAN Base (Upgradable to IP Services) |
| MAC Address Table Size | 16,000 |
| Warranty | 3-year warranty mentioned for one listing |
| Weight | 2.88 kg (6.35 pounds) |
| Dimensions | 6.12 x 6.12 x 5.09 in. (155.4 x 155.4 x 129.2 mm) |
The Cisco IE-4000-8T4G-E is a hardened Industrial Ethernet Switch (IE 4000 Series) delivering reliable and secure network connectivity for demanding industrial applications. It offers 8 Fast Ethernet (FE) copper ports and 4 flexible Gigabit Combo uplinks. It supports advanced features, redundancy via dual DC power inputs, and is built to withstand extreme operating conditions.
Yes, this Cisco IE-4000-8T4G-E Industrial Ethernet Switch (IE-4000-8T4G-E) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
This Cisco IE-4000-8T4G-E Industrial Ethernet Switch includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the IE-4000-8T4G-E.
