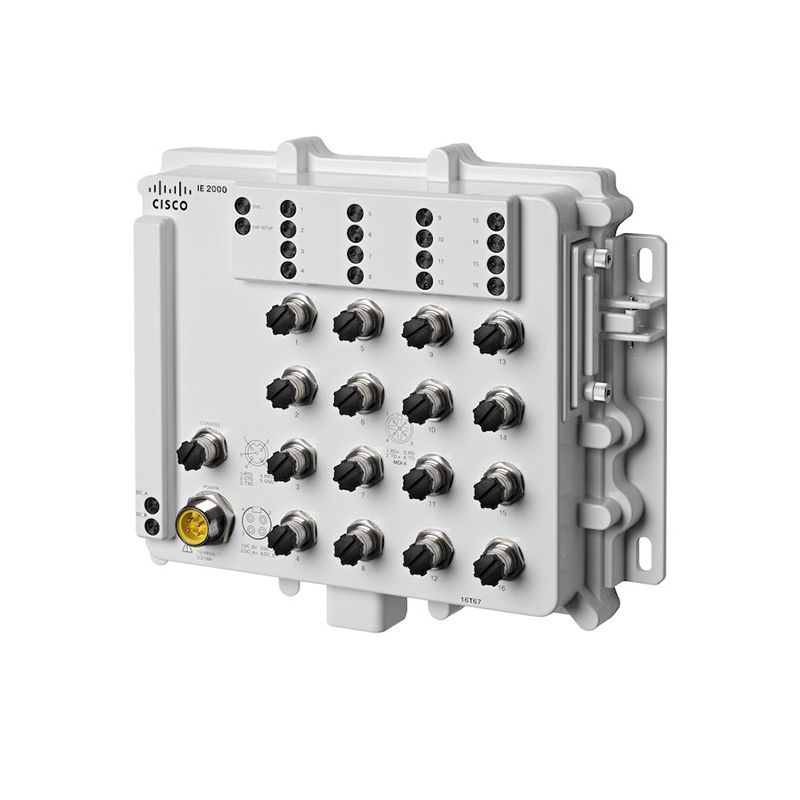

Cisco IE 2000 IP67 Switch, 16 Port, LAN Base IE-2000-16T67-B
Brand: Cisco · SKU: IE-2000-16T67-B · MPN: IE-2000-16T67-B · Category: Networking
The Cisco IE-2000-16T67-B is a ruggedized, 16-port Fast Ethernet switch from the Industrial Ethernet 2000 (IE 2000) IP67 Series. It is specifically designed for demanding industrial environments, boasting an IP67 rating for exceptional protection against dust and water submersion, and compliance with rigorous industrial and safety standards for extreme temperature and vibration. It supports Cisco IOS Software and is suitable for manufacturing, oil and gas, mining, and transportation sectors. The switch supports industrial protocols like EtherNet/IP and PROFINET, PTP support, and resilient Ethernet protocol. It is wall-mountable and requires no cabinet housing. Last Day of Support is listed as March 31, 2026.
Specifications
| Ports | 16 x 10/100 Mbps (100 MB D-code) |
|---|---|
| Memory | 256MB DRAM with ECC, 64MB on-board flash memory |
| Rugged Rating | IP67 Certified |
| Software License | LAN Base |
| Industrial Protocols | EtherNet/IP (CIP), PROFINET v2, PTP v2 |
| Operating Temperature | -40°C to +75°C (Max for some configurations) |
| Forwarding Performance | 6.5 Mpps (64-byte packet size) |
| Input Voltage Supported | 9.6-60VDC |
| Power Consumption (Typical) | 10-20W |
| Warranty | 5-year limited warranty (Data from series datasheet) |
| Weight | 7.28 lbs. (3.30 kg) |
| Dimensions | 9.5”h x 11.84”w x 3.2”d (241.7 x 300.7 x 81.5 mm) |
Key Features
The Cisco IE-2000-16T67-B is a rugged, IP67-rated industrial Ethernet switch featuring 16 Fast Ethernet ports. It is built to ensure reliable operation in harsh environments like factory floors, supporting industrial automation protocols and advanced resiliency features like Cisco REP. It uses Cisco IOS Software and can be easily integrated into both IT and OT environments.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Cisco IE 2000 IP67 Switch, 16 Port, LAN Base IE-2000-16T67-B (IE-2000-16T67-B) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Cisco IE 2000 IP67 Switch, 16 Port, LAN Base IE-2000-16T67-B includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Cisco IE 2000 IP67 Switch, 16 Port, LAN Base IE-2000-16T67-B compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the IE-2000-16T67-B.
