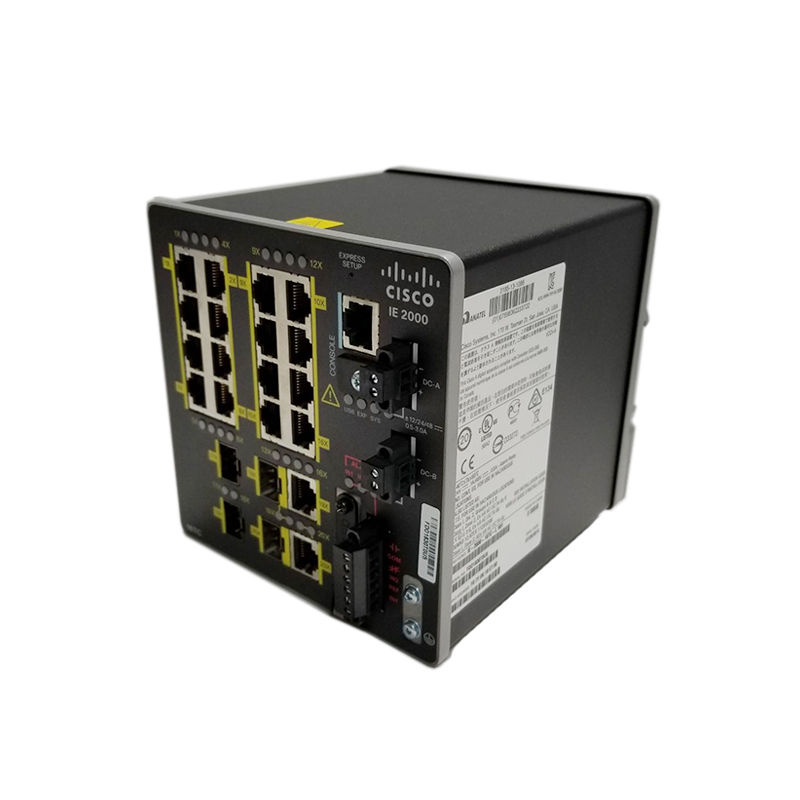

Cisco Industrial Ethernet 2000 Series Switch IE-2000-16TC-B

Brand: Cisco · SKU: IE-2000-16TC-B · MPN: IE-2000-16TC-B · Category: Networking

Cisco Industrial Ethernet 2000 Series Switch IE-2000-16TC-B
$2,185.63
In Stock • 6 units

The Cisco IE-2000-16TC-B is a managed, 20-port Industrial Ethernet switch from the IE 2000 Series, featuring 16 Fast Ethernet RJ45 ports, two Fast Ethernet SFP uplink slots, and two Fast Ethernet Combo Ports. It operates with the LAN Base software image. This ruggedized, DIN rail mountable switch is designed for industrial applications such as factory automation, transportation, and energy utility deployments, providing high security and resilience using Cisco Resilient Ethernet Protocol (REP). It supports Layer 2 switching features, including VLANs, and is designed for easy deployment with features like zero-touch discovery and fast boot-up time (60 seconds). Power options are not included and must be sourced separately.

View Networking Products

Specifications

DRAM256 MB DRAM with ECC memory
Max VLANs1005 (as per one source) or 255 (as per other sources)
RJ45 Ports16 x 10/100 (Fast Ethernet)
Combo Ports2 x Fast Ethernet Combo Ports
Total Ports20
Flash Memory64 MB on-board flash memory (1GB removable SD flash memory card optional)
Product TypeEthernet Switch
Uplink Ports2 x Fast Ethernet SFP Slots
Enclosure TypeDIN rail mountable
Forwarding Rate5.66 Mpps with 64-byte packets (Line-rate at all packet sizes)
Layer Supported2
Management Port1x Mini-USB connector
Software LicenseLAN Base
Switching Capacity7.6 Gbps
MAC Address Table Size8000 entries
Industrial Protocols SupportedEthernet/IP, PROFINET v2
WarrantyOne year limited warranty (seller refurbished condition noted in some listings).
Weight2.45 lbs (1.11 kg) for 6-port chassis, 4.35 lbs (1.97 kg) for 18-20 port chassis (specific weight for this 20-port model is not explicitly listed but is expected to be near the 18-20 port chassis value)
Dimensions5.1"H x 5.0"W x 5.26"D (130mm H x 127mm W x 134mm D) (Dimensions for 18-20 ports chassis)

Key Features

The Cisco IE-2000-16TC-B is a compact, ruggedized access switch from the Industrial Ethernet 2000 Series. It offers 16 Fast Ethernet access ports and flexible uplinks via SFP slots, designed for harsh industrial environments. Key features include high security functionalities, Cisco Resilient Ethernet Protocol (REP) for resiliency, and support for industrial automation protocols like PROFINET. It is suitable for edge connectivity in sectors like manufacturing and transportation.

Frequently Asked Questions

Is this product genuine OEM?

Yes, this Cisco Industrial Ethernet 2000 Series Switch IE-2000-16TC-B (IE-2000-16TC-B) is 100% genuine Cisco hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This Cisco Industrial Ethernet 2000 Series Switch IE-2000-16TC-B includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the Cisco Industrial Ethernet 2000 Series Switch IE-2000-16TC-B compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the IE-2000-16TC-B.
