IE-1000-8P2S-LM, Cisco IE1000 Switch, 8xFE PoE/2xGE SFP/GUI Management
Brand: Generic · SKU: IE-1000-8P2S-LM · MPN: IE-1000-8P2S-LM · Category: Networking

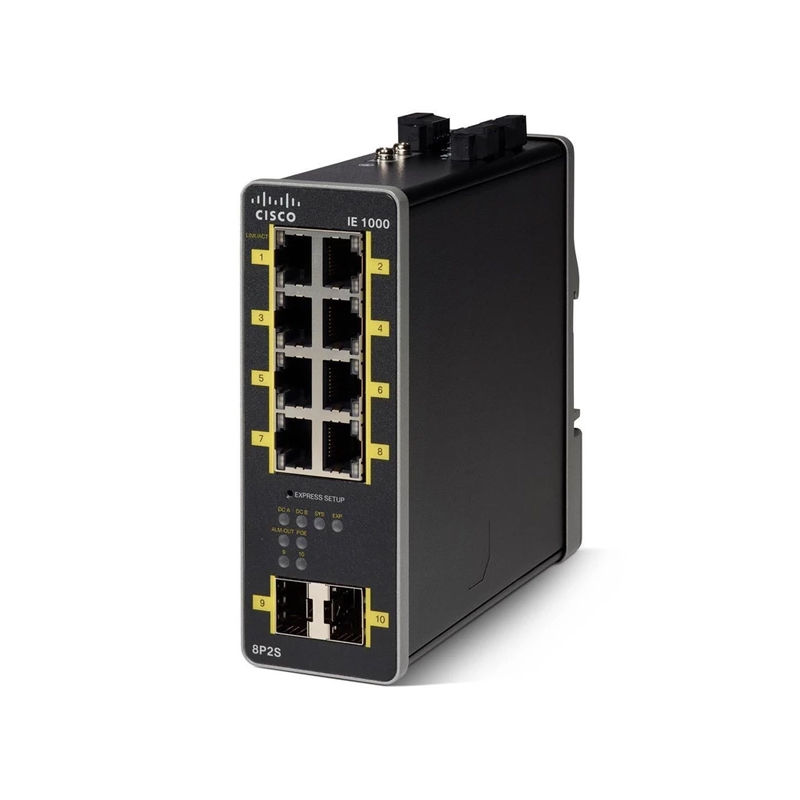

Cisco IE-1000-8P2S-LM is an industrial Ethernet switch with 8 Fast Ethernet PoE ports, 2 Gigabit SFP uplinks, and web GUI management for industrial and enterprise networks.
Specifications
| Alarm | • Alarm I/O: output connector on top panel of 4P2S and 8P2S, 1.0A@24VDC or 0.5A@48VDC |
|---|---|
| Hardwar | • DRAM: 128 MB DDR2 without ECC • Onboard flash memory: 160 MB |
| Humidity | • IEC 60068 -2-3 • IEC 60068-2-30 (Test Db) • Relative humidity: 5% to 95% non-condensing |
| Warranty | • Five-year limited warranty on all IE-1000 hardware PIDs and all IE power supplies defined in Table 2 previously. See the following link for details on warranty |
| Industry Standard | • IEC/EN 61000-6-1 (Immunity for Light Industrial Environments) • IEC/EN 61000-6-2 (Immunity for Industrial Environments) • IEC/EN 61000-6-4 (Emissions for Industrial Environments) • EN 61131-2 (PLC Zone A & B, EMC/EMI, environmental, mechanical) • EN61326-1 (Industrial Controls) • Marine – TAC (Temp-A, Humid-B, Vib-A, EMC-A, Enc-A) • EN 50581 (RoHS) • China RoHS • EU WEEE • NEMA TS-2 (EMC, environmental, mechanical) • IP30 |
| Power consumption | Without PoE 10.6W, with PoE 134.4-205.2W |
| Software features | LLDP, Cisco CDP aware, MSTP, STP Portfast, ICMP Vlans, static IP, Trust Ingress DSCP, COS, Priority Port, port - security, IGMP querier, DHCP server SNMP v2/v3, SNMP traps, syslog, IGMP snooping, DHCP snooping, BPDU guard, Etherchannel, Alarms, PoE capability, Smartport Macro, SPAN/Port Mirroring, Strom Control, EtherNet/IP (EDS) |
| Hazardous Locations | • ANSI/ISA 12.12.01 (Class1, Div2 A-D) • EN 60079-0, -15 ATEX certificate (Class 1, Zone2 A-D) • IEC 60079-0, 15 (report only) • UL 60079-0, 15 • CAN/CSA C22.2 No. 60079-0, -15 * Cabinet enclosure required |
| Shock and Vibration | • IEC 60068-2-27 (Operational Shock: 30G 11ms, half sine) • IEC 60068-2-27 (Non-Operational Shock 65-80G, trapezoidal) • IEC 60068-2-6, IEC 60068-2-64 (Operational Vibration) • EC 60068-2-6, IEC 60068-2-64, IEC 60068-2-47 (Non-operational Vibration) |
| Switching Bandwidth | • Max:5.6Gbps |
| Forwarding Bandwidth | • Max:2.8Gbps |
| Operating Temperature | • -40 °C to +70 °C (vented enclosure operating) • -40 °C to +60 °C (sealed enclosure operating) • -34 °C to +75 °C (fan or blower-equipped enclosure operating) • Operational altitude: Up to 13.8k ft • IEC 60068-2-1 • IEC 60068-2-2 • IEC 60068-2-56 • -40 C to +85 C (storage temperature) • IEC 60068-2-14 (Test Nb) • Storage altitude: Up to 15,000 ft |
| Safety Certifications | • UL/CSA 60950-1 • EN 60950-1 • CB to IEC 60950-1 (with country deviations) • NOM to NOM-019-SCF1 (through partners and distributors) • UL/CSA/IEC/EN 61010-2-201 • CE Marking |
| Connectors and cabling | • 100BASE-FX MMF (2 km) — TBD with engineer input • 10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling |
| Mean Time Between Failure (MTBF) | • Meantime between failure: 374,052 hours (42.7 years) |
| EMC Emissions and Immunity Compliance | • FCC 47 CFR Part 15 Class A • EN 55022/CISPR 22 Class A • EN 55016-1-1, -1-4, -2-3 Class AVCCI Class A • RoHS compliance • AS/NZS CISPR 22 Class A, AS/NZS CISPR 24 • CISPR11 Class A, CISPR22 Class A • ICES 003 Class A • KCC Marking (Korea) • CE Marking • RCM Marking (Australia/New Zealand) • EAC Marking (Eurasian Conformity) • Anatel (Brazil) • China NAL • IEC/EN/EN61000-4-2 (Electro Static Discharge), 8kV air/6kV contact • IEC/EN 61000-4-3 (Radiated Immunity, 10 V/m 80-2000MHz, 3V/m 2000-2700MHz) • IEC/EN 61000-4-4 (Fast Transients - 2kV DC power, 2kV data line, 4kv earth) • IEC/EN 61000-4-5 (Surge 2 kV/1 kV DC power, 2 kV shielded and unshielded data line) • IEC/EN 61000-4-6 (Conducted Immunity, 10 V/emf 0.15-80MHz) • IEC/EN 61000-4-8 (Power Frequency Magnetic Field Immunity 30A/m 60 sec, 300A/m 3 sec) • IEC/EN 61000-4-9 (Pulse Magnetic Field Immunity 300A/m) • IEC/EN 61000-4-29 (Voltage Dips Immunity) |
| Dimensions (H x W x D)including DIN rail | 5.0”H x 1.8” W x 5.3”D (127mm H x 45.7mmW x 134mm D) |
| Warranty | 3-Year Warranty |
Key Features
The Cisco IE-1000-8P2S-LM is a compact Cisco Industrial Ethernet 1000 Series switch designed for industrial, commercial, and enterprise network environments. It provides 8 Fast Ethernet ports with Power over Ethernet (PoE) and 2 Gigabit Ethernet SFP interfaces, offering a combination of powered device connectivity and high speed fiber or compatible uplink options. The switch includes GUI based management, allowing administrators to configure and monitor supported network functions through a web interface. Its compact industrial oriented design makes it suitable for deployments where reliable Ethernet connectivity and flexible installation are important.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this IE-1000-8P2S-LM, Cisco IE1000 Switch, 8xFE PoE/2xGE SFP/GUI Management (IE-1000-8P2S-LM) is 100% genuine Generic hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This IE-1000-8P2S-LM, Cisco IE1000 Switch, 8xFE PoE/2xGE SFP/GUI Management includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the IE-1000-8P2S-LM, Cisco IE1000 Switch, 8xFE PoE/2xGE SFP/GUI Management compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the IE-1000-8P2S-LM.
