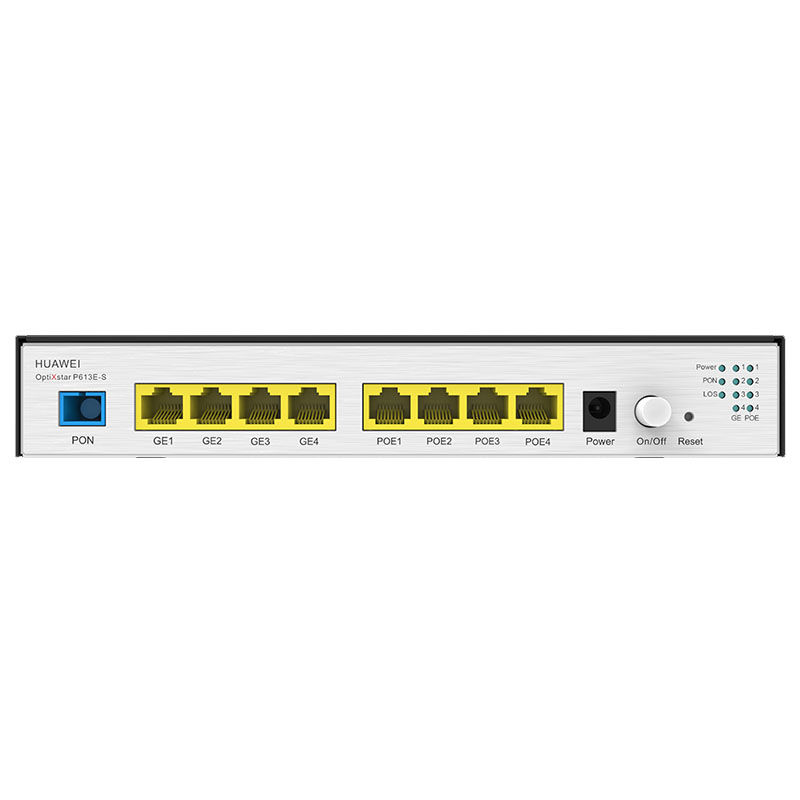

P613E-S, Huawei OptiXstar Access Client Equipment, 8GE, Forward PoE, SC/UPC
SKU: HW:P613E-S · MPN: HW:P613E-S · Category: Components
OptiXstar P613E-S-GPON access client equipment-SC/UPC-8GE-forward POE-Chinese power supply
Specifications
| GE | • PoE and PoE+, complying with IEEE 802.3af and IEEE 802.3at • Port type: RJ-45 • Auto ports speed (10/100/1000 Mbit/s) • Auto-MDI/MDIX • Configuration of the number of MAC addresses learned • VLAN transparent transmission/VLAN filtering |
|---|---|
| NNI | GPON |
| PON | • Port type: SC/UPC • Complies with ITU-T G.984.2, Class B+ • Receiver sensitivity: -27 dBm; • Overload optical power: -8 dBm; • Transmission rate: upstream 1.244 Gbit/s, downstream 2.488 Gbit/s • Type B single-homing • Type B dual-homing (supported in Layer 2 forwarding) |
| UNI | 8 x GE ， the PoE1-PoE4 ports support PoE/PoE+. |
| Weight | Approximately 1030 g |
| Installation Mode | Supports indoor desktop installation, wall mounting, and network box installation. |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Power Adapter Input | 100 V to 240 V AC, 50/60 Hz |
| System Power Supply | 56 V DC, 1.42 A |
| Operating Temperature | -5°C to 45°C |
| Dimensions (H x W x D) | 35 mm x 220 mm x 150 mm (without floor mat) |
| Maximum PoE Output Power | Gross power 60 W (up to 30 W for one GE port) |
| Static Power Consumption | 7 W |
| Maximum Power Consumption | 9.5 W (POE port without PD)/78 W (POE port with PD at maximum power consumption) |
| Surge Protection Specifications | GE: common mode 4 kV; differential mode 0.5 kV. AC power: common mode 6 kV; differential mode 6 kV |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this P613E-S, Huawei OptiXstar Access Client Equipment, 8GE, Forward PoE, SC/UPC (HW:P613E-S) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This P613E-S, Huawei OptiXstar Access Client Equipment, 8GE, Forward PoE, SC/UPC includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the P613E-S, Huawei OptiXstar Access Client Equipment, 8GE, Forward PoE, SC/UPC compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the HW:P613E-S.
