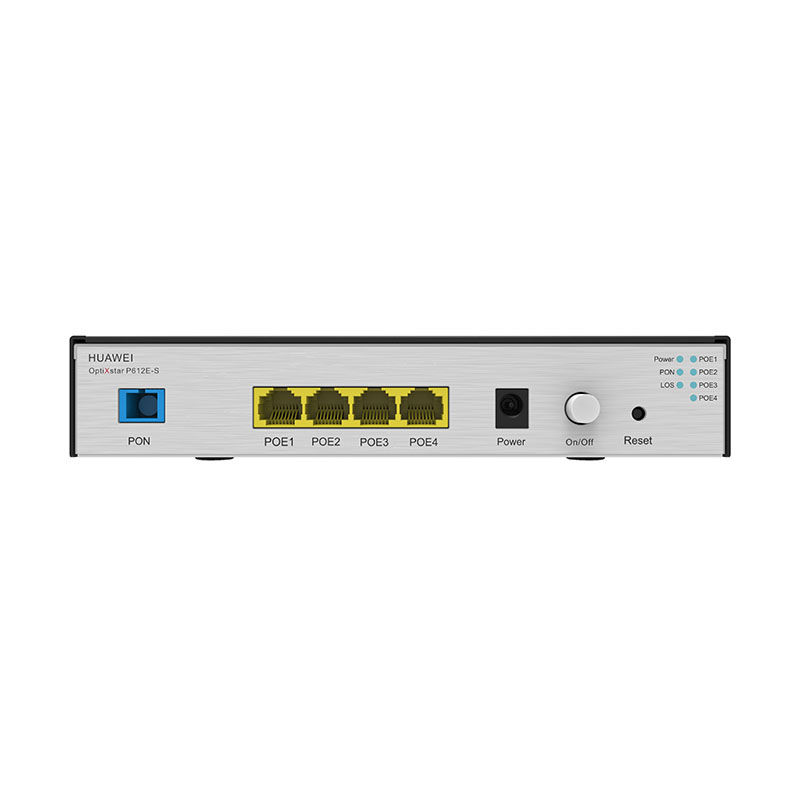

P612E-S, Huawei OptiXstar Series Access Device, 4GE, SC/UPC, PoE 60W
SKU: HW:P612E-S · MPN: HW:P612E-S · Category: Components
OptiXstar P612E-S-GPON access to user-end equipment-SC/UPC-4GE-forward POE-60W (-5℃ ~ +45℃)
Specifications
| GE | • PoE and PoE+, complying with IEEE 802.3af and IEEE 802.3at • Port type: RJ-45 • Auto ports speed (10/100/1000 Mbit/s) • Auto-MDI/MDIX • Configuration of the number of MAC addresses learned • VLAN transparent transmission/VLAN filtering |
|---|---|
| NNI | GPON |
| PON | • Port type: SC/UPC • Complies with ITU-T G.984.2, Class B+ • Receiver sensitivity: -27 dBm; • Overload optical power: -8 dBm; • Transmission rate: upstream 1.244 Gbit/s, downstream 2.488 Gbit/s • Type B single-homing • Type B dual-homing (supported in Layer 2 forwarding) |
| UNI | 4 x GE（ PoE/PoE+ ） |
| Weight | Approximately 800 g |
| Surge Protection | GE: common mode 4 kV; differential mode 0.5 kV. AC power: common mode 6 kV; differential mode 6 kV |
| Installation Mode | Supports indoor desktop installation, wall mounting, and network box installation. |
| Operating Humidity | 5% to 95% RH (non-condensing) |
| Power Adapter Input | 100 V to 240 V AC, 50/60 Hz |
| System Power Supply | 56 V DC, 1.42 A |
| Operating Temperature | -5℃ to 45℃ |
| Dimensions (H x W x D) | 35 mm x 190 mm x 130 mm (without floor mat) |
| Maximum PoE Output Power | Gross power 60 W (up to 30 W for one GE port) |
| Static Power Consumption | 7 W |
| Maximum Power Consumption | 9 W (POE port without PD)/77 W (POE port with PD at maximum power consumption) |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this P612E-S, Huawei OptiXstar Series Access Device, 4GE, SC/UPC, PoE 60W (HW:P612E-S) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This P612E-S, Huawei OptiXstar Series Access Device, 4GE, SC/UPC, PoE 60W includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the P612E-S, Huawei OptiXstar Series Access Device, 4GE, SC/UPC, PoE 60W compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the HW:P612E-S.
