H801SCUH, Huawei SmartAX MA5600T Super Control Unit Board, 1.6 GHz CPU, 2GB DDR3, 2xGE Combo
SKU: H801SCUH · MPN: H801SCUH · Category: Components

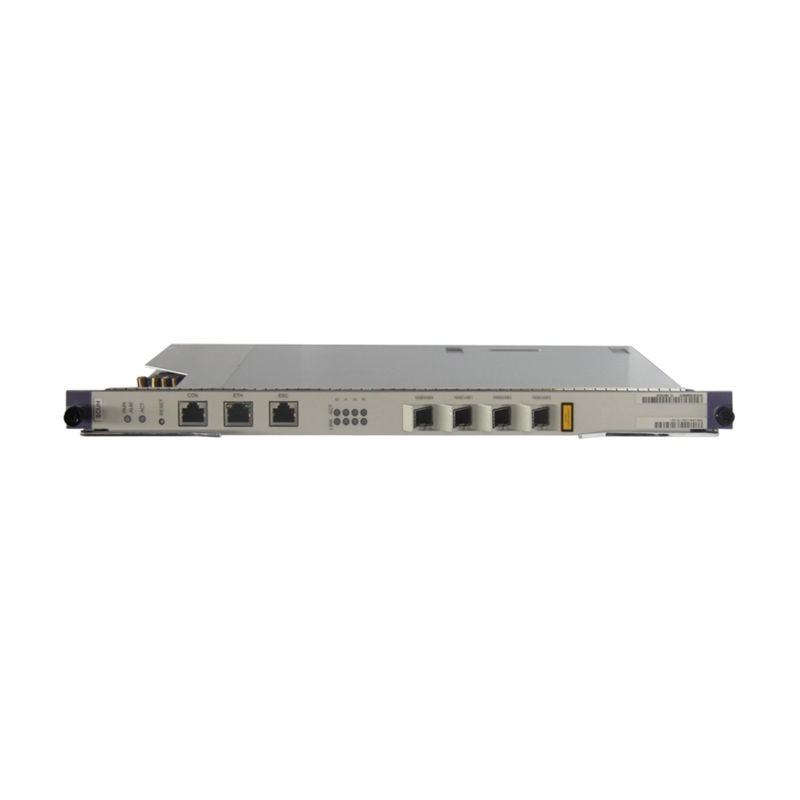

Huawei SmartAX MA5600T Super Control Unit Board
Specifications
| ACL rule | ACLv4: 1024; ACLv6: 256 |
|---|---|
| ARP table | 16384 |
| Access ONT | 16384 |
| LAN switch | 48 x10GE |
| Service port | 131072 |
| VRF (L3 VPN) | Supported |
| Multicast user | 16384 |
| MAC address table | 131072 |
| Power consumption | Static: 89 W |
| Bandwidth per slot | • 20 Gbit/s (active/standby mode) • 40 Gbit/s (load sharing mode) |
| IPv4 routing table | 12288 |
| IPv6 routing table | 6144 |
| Maximum Frame Size | 2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported. |
| Switching capacity | • 960 Gbit/s (active/standby mode) • 1920 Gbit/s (load sharing mode) |
| Operating temperature | -40° C to +65° C |
| Number of static programs configurable | 4096 |
| Maximum number of online programs supported | 4000 |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this H801SCUH, Huawei SmartAX MA5600T Super Control Unit Board, 1.6 GHz CPU, 2GB DDR3, 2xGE Combo (H801SCUH) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This H801SCUH, Huawei SmartAX MA5600T Super Control Unit Board, 1.6 GHz CPU, 2GB DDR3, 2xGE Combo includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the H801SCUH, Huawei SmartAX MA5600T Super Control Unit Board, 1.6 GHz CPU, 2GB DDR3, 2xGE Combo compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the H801SCUH.
