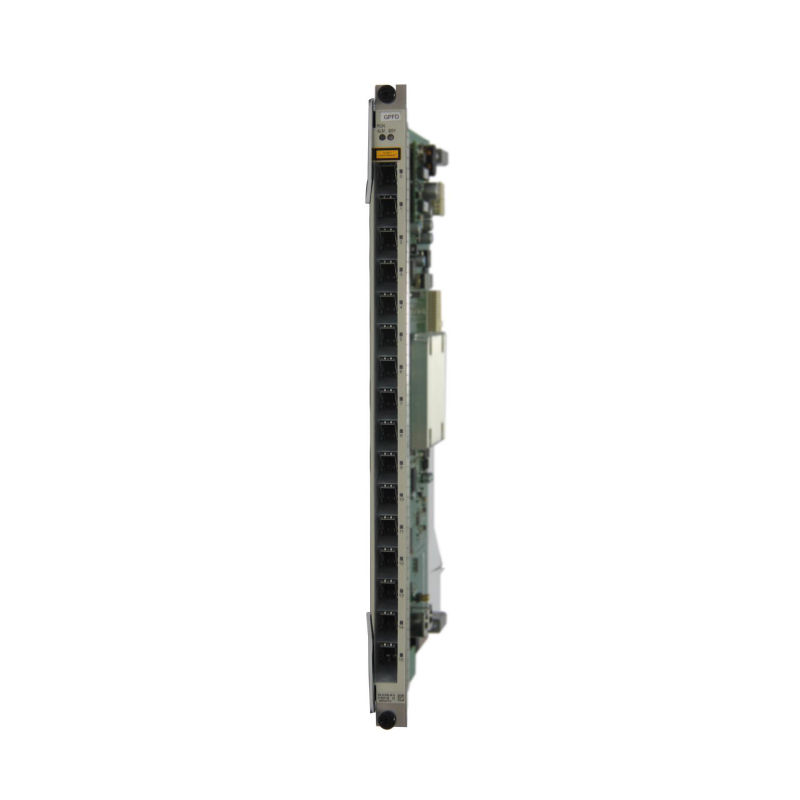

H802GPFD, Huawei SmartAX MA5600T OLT Interface Board, 16 GPON ports
SKU: H802GPFD · MPN: H802GPFD · Category: Components
Huawei SmartAX MA5600T 16-port GPON OLT Interface board
Specifications
| 1 | 64 eOTDR: Supported (used together with the reflector) |
|---|---|
| N | 1/1:1 VMAC: Supported |
| FEC | Bidirection |
| IPv6 | Supported |
| CAR group | Supported |
| Load sharing | Supported |
| MAC addresses | 16384 |
| Power consumption | • Static: 45 W • Maximum: 73 W |
| Maximum frame size | 2004 bytes |
| T-CONTs per PON port | 1024 |
| Variable-length OMCI | Supported from V800R013 |
| Forwarding capability | 40 Gbit/s |
| Operating temperature | -40° C to +65° C |
| Type B/Type C protection | Supported |
| Service flows per PON board | 16368 |
| Rogue ONU detection and isolation | Supported |
| Automatic shutdown of an idle port | Supported |
| Automatic shutdown at high temperature | Supported |
| ONU-based shaping or queue-based shaping | Supported |
| High-precision clock time synchronization | Supported |
| Maximum distance difference between two ONUs under the same PON port | 40 km from V800R013 |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this H802GPFD, Huawei SmartAX MA5600T OLT Interface Board, 16 GPON ports (H802GPFD) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This H802GPFD, Huawei SmartAX MA5600T OLT Interface Board, 16 GPON ports includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the H802GPFD, Huawei SmartAX MA5600T OLT Interface Board, 16 GPON ports compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the H802GPFD.
