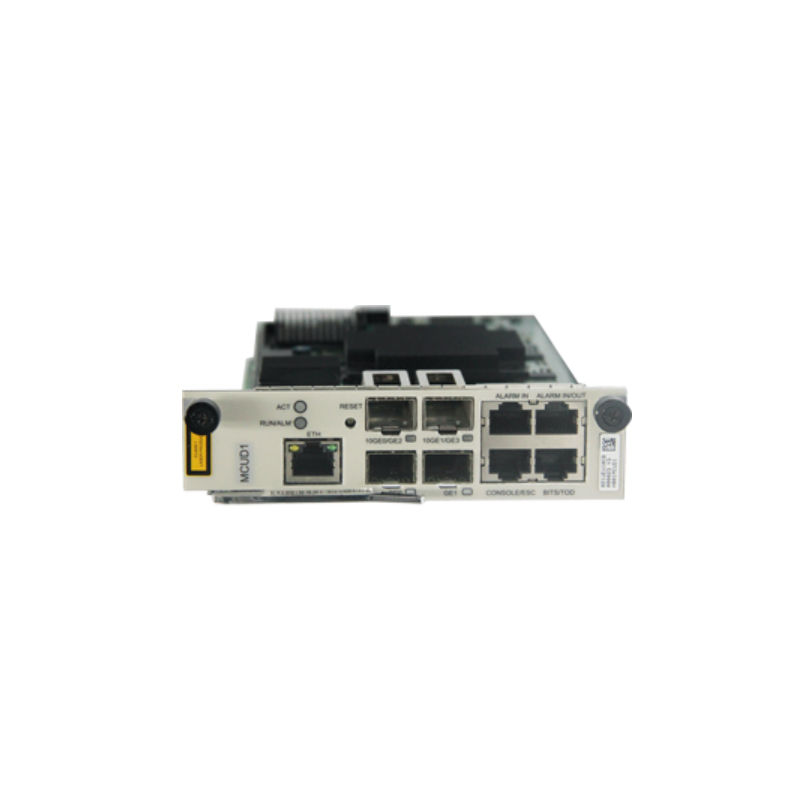

H801MCUD1, Huawei SmartAX MA5600T, Control Unit Board, GE/10GE Uplink
SKU: H801MCUD1 · MPN: H801MCUD1 · Category: Components
Huawei SmartAX MA5600T Control Unit Board (GE/10GE Uplink)
Specifications
| ACL rule | ACLv4: 768; ACLv6: 256 |
|---|---|
| ARP table | 8192 |
| Access ONT | • Before the V800R015C10 version: 2048 • V800R015C10 and later versions: 4096 |
| LAN switch | 24 x GE + 4 x 10GE |
| Service port | 20480 |
| VRF (L3 VPN) | Supported |
| Multicast user | 4096 |
| MAC address table | 32768 |
| Power consumption | Static: 29 W Maximum: 33 W |
| Bandwidth per slot | • 10 Gbit/s (active/standby mode) • 20 Gbit/s (load sharing mode) |
| IPv4 routing table | 5120 |
| IPv6 routing table | 5120 |
| Maximum Frame Size | 2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported. |
| Switching capacity | • 128 Gbit/s (active/standby mode) • 256 Gbit/s (load sharing mode) |
| Operating temperature | -40° C to +65° C |
| Number of static programs configurable | 4096 |
| Maximum number of online programs supported | 2000 |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this H801MCUD1, Huawei SmartAX MA5600T, Control Unit Board, GE/10GE Uplink (H801MCUD1) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This H801MCUD1, Huawei SmartAX MA5600T, Control Unit Board, GE/10GE Uplink includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the H801MCUD1, Huawei SmartAX MA5600T, Control Unit Board, GE/10GE Uplink compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the H801MCUD1.
