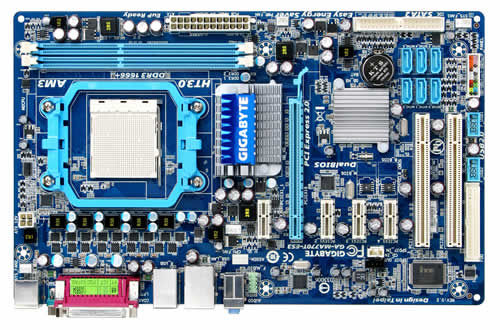

GIGABYTE GA-MA770T-ES3 motherboard AMD 770 Socket AM3 ATX
Brand: GIGABYTE · SKU: GA-MA770T-ES3 · MPN: GA-MA770T-ES3 · Category: Components
GIGABYTE GA-MA770T-ES3, AMD, Socket AM3, 8 GB, 1.5 V, ECC, 0, 1. GIGABYTE GA-MA770T-ES3 motherboard AMD 770 Socket AM3 ATX (part number GA-MA770T-ES3) is an enterprise components product available from Server Tech Central. Key specifications include depth 190 mm, width 305 mm, pci slots 2, audio chip Realtek ALC888, raid levels 0, 1, memory voltage 1.5 V, cd/aux audio in Yes, s/pdif out port Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 190 mm |
|---|---|
| Width | 305 mm |
| PCI slots | 2 |
| Audio chip | Realtek ALC888 |
| RAID levels | 0, 1 |
| Memory voltage | 1.5 V |
| CD/AUX audio in | Yes |
| S/PDIF out port | Yes |
| BIOS memory size | 16 Mbit |
| Bundled software | Norton Internet Security |
| Drivers included | Yes |
| Processor socket | Socket AM3 |
| CPU fan connector | Yes |
| Headphone outputs | 3 |
| Power source type | ATX |
| ECC сompatibility | ECC |
| USB 2.0 connectors | 2 |
| Motherboard chipset | AMD 770 |
| Networking features | 10/100/1000 Mbps |
| PS/2 ports quantity | 1 |
| S/PDIF in connector | Yes |
| PCI Express x1 slots | 4 |
| S/PDIF out connector | Yes |
| Audio output channels | 7.1 channels |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 190 mm |
Product Description
Introduction The GA-MA770T-ES3 based on AMD 770 chipset, it supports new generation of 45nm AMD AM3 Phenom II/ AthlonII processors, integrated DDR3 memory controller, HyperTransport™ 3.0 technology links and PCI Express 2.0 graphics interface and so on. With the innovative GIGABYTE Easy Energy Saver technology, the GA-MA770T-ES3 is able to provide user friendly computing, reach the maximum system performance easily while still able to save the power and environment in real life at the same time. Supports next generation of 45nm AMD AM3 CPU This motherboard designs with Split Power Plane, 4+1 phase VRM to support AMD the latest 45nm AM3 Phenom II/ Athlon II processors, delivering the great performance enchantment to system and ultimate scalability hardware expending. EC AOD-ACC Support EC AOD-ACC is described as Embedded Controller for AMD OverDrive- Advanced Clock Calibration, which is the newest feature comes from AMD SB750/ SB710 SouthBridge chip, destined for the AMD Black Edition CPU to be overclocked through BIOS setting or AMD OverDrive utility further than it was previously possible. AMD OverDrive Support The AMD OverDrive utility is provided by AMD, offering high-end users the ability to maximize the capability, flexibility, and adjustability of the platforms utilizing AMD processors, sockets, and chipsets. Solid Capacitor for CPU VRM Stable system operation depends upon the quality of CPU VRM (voltage regulator module). GIGABYTE adopts Conductive Polymer Aluminum Solid Capacitors for CPU VRM to ensure a longer lifespan for systems in daily operation and boost system stability under extreme conditions. CPU VRM with Solid Capacitors featuring better electronic conductivity, excellent heat resistance enhances system durability even operating in high temperature environment. Supports Dual Channel DDR3 1666+ Experience the advanced technology of DDR3 1666+ memory, featuring faster speeds and higher data bandwidth, which delivers superior performance for the most demanding applications.
Key Features
GIGABYTE GA-MA770T-ES3. Processor manufacturer: AMD, Processor socket: Socket AM3. Maximum internal memory: 8 GB, Memory voltage: 1.5 V, ECC сompatibility: ECC. RAID levels: 0, 1. Networking features: 10/100/1000 Mbps. Motherboard form factor: ATX, Motherboard chipset: AMD 770, Audio output channels: 7.1 channels
