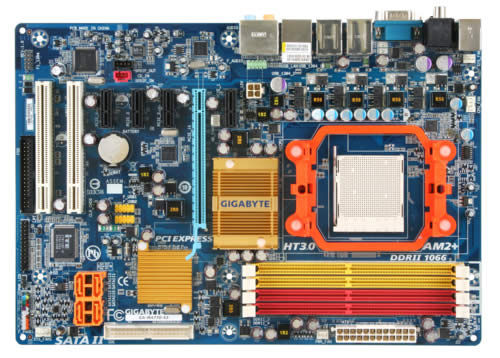

GIGABYTE GA-MA770-S3 (rev. 1.0) AMD 770 Socket AM2 ATX
Brand: GIGABYTE · SKU: GA-MA770-S3 · MPN: GA-MA770-S3 · Category: Components
GIGABYTE GA-MA770-S3 (rev. 1.0), AMD, Socket AM2, 16 GB, ECC, Realtek RTL8111B, 10/100/1000 Mbit. GIGABYTE GA-MA770-S3 (rev. 1.0) AMD 770 Socket AM2 ATX (part number GA-MA770-S3) is an enterprise components product available from Server Tech Central. Key specifications include depth 210 mm, width 305 mm, audio chip Realtek ALC888, microphone in Yes, lan controller Realtek RTL8111B, cd/aux audio in Yes, expansion slots 1 x PCI Express x16 4 x PCI Express x1 2 x PCI, s/pdif out port Yes. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 210 mm |
|---|---|
| Width | 305 mm |
| Audio chip | Realtek ALC888 |
| Microphone in | Yes |
| LAN controller | Realtek RTL8111B |
| CD/AUX audio in | Yes |
| Expansion slots | 1 x PCI Express x16 4 x PCI Express x1 2 x PCI |
| S/PDIF out port | Yes |
| BIOS memory size | 32 Mbit |
| Processor socket | Socket AM2 |
| CPU fan connector | Yes |
| Power source type | ATX |
| ECC сompatibility | ECC |
| USB 2.0 connectors | 2 |
| Motherboard chipset | AMD 770 |
| Networking features | 10/100/1000 Mbit |
| PS/2 ports quantity | 2 |
| S/PDIF out connector | Yes |
| Audio output channels | 7.1 channels |
| Serial ports quantity | 1 |
| Number of memory slots | 4 |
| Processor manufacturer | AMD |
| USB 2.0 ports quantity | 6 |
| Maximum internal memory | 16 GB |
| Warranty | 3-Year Warranty |
| Dimensions | 305 mm x 210 mm |
Product Description
The GA-MA770-S3 is GIGABYTE’s next generation, high performance platform based on the new AMD 770 Chipset and support for the new AMD Phenom™ quad-core processors, with the latest AM2+ platform support, integrated DDR2 1066 memory controller, HyperTransport™ 3.0 technology links and 128-bit Floating Point Units. In addition, GA-MA770-S3 features with three innovative S features- Safe, Smart, and Speed technologies, further providing reliable and user friendly computing and reaching the maximum system performance easily via personalized software settings. GIGABYTE S series motherboards, the champion’s choice for AMD AM2+ platform! Solid Capacitor for CPU VRM Stable system operation depends upon the quality of CPU VRM (voltage regulator module). GIGABYTE adopts Conductive Polymer Aluminum Solid Capacitors for CPU VRM to ensure a longer lifespan for systems in daily operation and boost system stability under extreme conditions. CPU VRM with Solid Capacitors featuring better electronic conductivity, excellent heat resistance enhances system durability even operating in high temperature environment. AMD Live Ready AMD Live Ready Requirement compliant. Windows Vista Premium Logo Certified Windows Vista Premium promises to deliver a streamlined computing experience designed to fundamentally change how users view, find and organize their digital information. With GIGABYTE AM2+/ AM2 solutions enabling support for Vista Premium, GIGABYTE offers a fresh and unique desktop experience that will be more informative, intuitive and completely new. AMD Phenom™ processors The leading-edge performance and unparallel technology of AMD AM2+ Phenom™ processors have built its strength on the well-known AMD64 framework which consisted next generation of HyperTransport 3.0 Technology, and integrated DDR2 1066 memory controller, and 128-bit Floating Point Units. The AMD Phenom™ processors are an ideal choice for multi-media enthusiasts and intensive multi-tasking environments to offer significant performance boosts and provides an overall more energy efficient platform. AMD 770 Chipset The AMD 770 Chipset is the system logic of the latest AM2+ (HyperTransport 3.0) platform from AMD that enables its next generation Phenom™ processors. The AMD 770 Chipset, with optimized next generation of PCI-E 2.0 graphics capabilities, providing outstanding quality and performance for every PC users. Confidently manage and back-up precious digital files, surf the Internet faster, and play the latest games with technology designed today and ready for tomorrow. PCI-E 2.0 Graphics Interface PCI-E 2.0 doubles the bus standard's bandwidth from 2.5 Gbit/s to 5 Gbit/s, meaning a x32 connector can transfer data at up to 16 GB/s in each direction. PCI-E 2.0 also features improvements to the point-to-point data transfer protocol and its software architecture. SATA 3Gb/s storage interface The SATA specification doubles bus bandwidth from 1.5Gb/s to 3Gb/s. Native Command Queuing is a new specification that enables out-of-order execution of commands for efficient retrieval of data. Hot Plug support allows users to insert and remove hard disk drives without shutting off power to the system. IEEE1394 motherboard This motherboard comes with IEEE1394 FireWire interface from Texas Instruments (TI). With the transfer speed up to 400Mb/s, the new generation IEEE1394 interface further enhances PC connectivity with consumer electronics audio/video (A/V) appliances, and storage peripherals. High Definition Audio Experience home theater-quality sound with your PC using High Definition Audio for enhanced multi-channel audio, improved voice and communication input, and multi-streaming capability. Gigabit LAN Connectivity The Gigabit network interface delivers a high speed LAN connection with data transfer rate up to 1000Mb/s, providing new generation connectivity for the broadband era. Gigabit LAN is ideally for seamless internet connection such as streaming audio and video contents. Speed The Speed compliant motherboards of GIGABYTE S-series provide intelligent over-clocking and over-voltage software settings through both hardware and software design...more Smart The Smart featured motherboards of GIGABYTE S-series provide GIGABYTE proprietary innovative software such as Download Center, @BIOS, Q-Flash, Xpress Install, Boot menu, and Smart Fan. BIOS and driver management now becomes much easier and user friendly through GIGABYTE Smart features!
Key Features
GIGABYTE GA-MA770-S3 (rev. 1.0). Processor manufacturer: AMD, Processor socket: Socket AM2. Maximum internal memory: 16 GB, ECC сompatibility: ECC. LAN controller: Realtek RTL8111B, Networking features: 10/100/1000 Mbit. Motherboard form factor: ATX, Motherboard chipset: AMD 770, Audio output channels: 7.1 channels. BIOS memory size: 32 Mbit
Frequently Asked Questions
Is this product genuine OEM?
Yes, this GIGABYTE GA-MA770-S3 (rev. 1.0) AMD 770 Socket AM2 ATX (GA-MA770-S3) is 100% genuine GIGABYTE hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This GIGABYTE GA-MA770-S3 (rev. 1.0) AMD 770 Socket AM2 ATX includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the GIGABYTE GA-MA770-S3 (rev. 1.0) AMD 770 Socket AM2 ATX compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the GA-MA770-S3.
