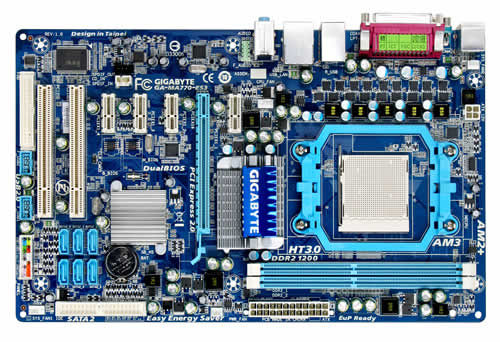

GIGABYTE GA-MA770-ES3 motherboard AMD 770 ATX

Specifications

Product Description

AMD 770 + SB710 Chipset - Supports new generation of AMD Phenom™II X6 processors; - Revolution energy saving design with Easy Energy Saver technology; - Supports AMD AM3 Phenom II/ Athlon II processors; - Solid capacitors design for CPU VRM; - Dual Channel DDR2 1200+ for remarkable system performance; - Ultimate graphics performance with PCI-E 2.0 x16 interface; - Integrated SATA 3Gb/s with RAID function; - Features high speed Gigabit Ethernet connection; - Home theater quality 6/8-channel High Definition Audio; - Patented DualBIOS with dual hardware BIOS protection; - Compatible with Window 7 to deliver the best operation experience; - Meet European Union ErP(Energy-related Products) requirement. Get Ready to Unleash the Power of AMD 6-Core CPU GIGABYTE's AMD motherboards are ready to support the new generation of AMD Phenom™II X 6 processors, delivering the very best platform for multitasking, multimedia and high performance gaming. On/Off Charge Support GIGABYTE On/Off Charge technology that enables faster iPhone, iPad and iPod Touch charging. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge technology allows iPhone, iPad and iPod touch devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, with the added benefit that the PC can be on, in standby mode or even off. Introduction The GA-MA770-ES3 based on AMD 770 chipset, it supports new generation of 45nm AMD AM3 Phenom II/ AthlonII processors, integrated DDR2 memory controller, HyperTransport™ 3.0 technology links and PCI Express 2.0 graphics interface and so on. With the innovative GIGABYTE Easy Energy Saver technology, the GA-MA770-ES3 is able to provide user friendly computing, reach the maximum system performance easily while still able to save the power and environment in real life at the same time. Supports next generation of 45nm AMD AM3 CPU This motherboard designs with Split Power Plane, 4+1 phase VRM to support AMD the latest 45nm AM3 Phenom™II/ Athlon™II processors, delivering the great performance enchantment to system and ultimate scalability hardware expending. EC AOD-ACC Support EC AOD-ACC is described as Embedded Controller for AMD OverDrive- Advanced Clock Calibration, which is the newest feature comes from AMD SB750/ SB710 SouthBridge chip, destined for the AMD Black Edition CPU to be overclocked through BIOS setting or AMD OverDrive™ utility further than it was previously possible. AMD OverDrive Support The AMD OverDrive™ utility is provided by AMD, offering high-end users the ability to maximize the capability, flexibility, and adjustability of the platforms utilizing AMD processors, sockets, and chipsets. Solid Capacitor for CPU VRM Stable system operation depends upon the quality of CPU VRM (voltage regulator module). GIGABYTE adopts Conductive Polymer Aluminum Solid Capacitors for CPU VRM to ensure a longer lifespan for systems in daily operation and boost system stability under extreme conditions. CPU VRM with Solid Capacitors featuring better electronic conductivity, excellent heat resistance enhances system durability even operating in high temperature environment. Supports Dual Channel DDR2 1200+ Experience the advanced technology of DDR2 1200+ memory, featuring faster speeds and higher data bandwidth, which delivers superior performance for the most demanding applications. GIGABYTE innovative technology- Easy Energy Saver GIGABYTE innovative technology- Easy Energy Saver Featuring an advanced proprietary software design, GIGABYTE Easy Energy Saver is able to dynamically adjust CPU power depending on workload, delivering just the right amount of power needed for the task. Coupled with AMD’s highly efficient 45nm AM3 CPU, the Easy Energy Saver is able to provide exceptional levels of power savings and enhanced power efficiency without sacrificing computing performance. EasyTune6 GIGABYTE has completely redesigned EasyTune6 from the ground up to make it easier than ever to manage and monitor your hardware resources as well as tweak your system settings in order to achieve maximum system performance. Whether you are an overclocking enthusiast, or a computer novice, EasyTune6 provides the tools you need to quickly and effortlessly fine tune your system. DualBIOS™ - Patented Dual Hardware BIOS Protection DualBIOS™ is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating. Qualified for Windows® 7 The motherboard qualified for WHQL (Windows Hardware Quality Labs) certification of Windows 7 from Microsoft®, setting the standard for future Windows 7 certified motherboards. ErP Lot 6 support The ErP (as known as Energy-Related Products Directive) is part of new European Union's environment regulations. ErP established is based on the concern of

Key Features

GIGABYTE GA-MA770-ES3. Processor manufacturer: AMD. Maximum internal memory: 8 GB, Memory voltage: 1.8 V, ECC сompatibility: ECC. RAID levels: 0, 1, 0+1. Networking features: Gigabit Ethernet. Motherboard form factor: ATX, Motherboard chipset: AMD 770, Audio output channels: 7.1 channels
