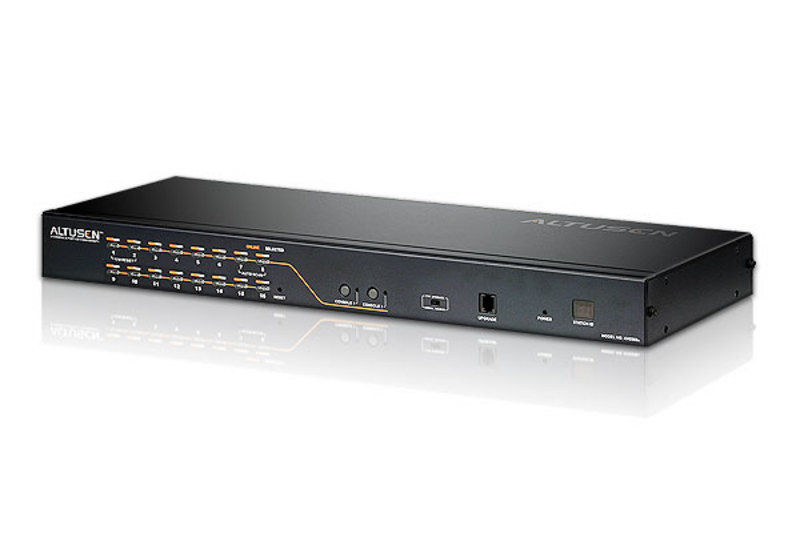

ATEN KH2516A KVM switch Black
Brand: ATEN · SKU: DCP2945 · MPN: DCP2945 · Category: Data Center
ATEN KH2516A, 1600 x 1200 pixels, 9 W, Black. ATEN KH2516A KVM switch Black (part number DCP2945) is an enterprise kvm switches product available from Server Tech Central. Key specifications include depth 437.2 mm, width 163.6 mm, height 44 mm, manual Yes, weight 2.85 kg, scan interval 255 s, led indicators Yes, ports quantity 16. Every unit is fully tested and backed by our standard 3-Year Warranty, with free US ground shipping and same-day dispatch on in-stock orders. Volume pricing and Net-30 terms are available for qualified businesses, government, and education.
Specifications
| Depth | 437.2 mm |
|---|---|
| Width | 163.6 mm |
| Height | 44 mm |
| Manual | Yes |
| Weight | 2.85 kg |
| Scan interval | 255 s |
| LED indicators | Yes |
| Ports quantity | 16 |
| Product colour | Black |
| Housing material | Metal |
| Dimensions (WxDxH) | 163.6 x 437.2 x 44 mm |
| Maximum resolution | 1600 x 1200 pixels |
| PS/2 ports quantity | 4 |
| USB 2.0 ports quantity | 4 |
| Compliance certificates | RoHS |
| Connectivity technology | Wired |
| Quick installation guide | Yes |
| Storage temperature (T-T) | -20 - 60 °C |
| VGA (D-Sub) ports quantity | 2 |
| Operating temperature (T-T) | 0 - 50 °C |
| Power consumption (typical) | 9 W |
| Number of computers controlled | 16 |
| Operating relative humidity (H-H) | 0 - 80% |
| Warranty | 3-Year Warranty |
| Weight | 2.85 kg |
| Dimensions | 163.6 mm x 437.2 mm x 44 mm |
Product Description
Features - Two KVM consoles independently and simultaneously control up to 16 directly connected computers - By daisy chaining up to 15 additional KH2516A switches, as many as 256 computers can be controlled from the original KVM console - Console conversion – any type of KVM console can control any type of computer; mixed combinations (PS/2&USB) - supported on both the KVM console and computer sides - Superior Video Quality- Supports the video resolutions up to 1600x1200@60Hz for up to 40 meters, and 1280x1024@75 Hz for up to 50 meters *With KVM Adapter Cable KA7000 series - Configure port access rights for users on a port - by - port basis - Diversified port operation mode enables flexible computer management – Occupy, Exclusive and share modes - Three port selection methods: Manual (via front panel pushbuttons), Hotkey, and multi-language OSD (On Screen Display) - Multiplatform support – PC, Mac, Sun, and serial - Multiple User Accounts -Supports up to 10 user and 1 administrator accounts - Two-Level Password Security – Supports one administrator and ten user profiles. Password protection prevents unauthorized accessing to the installation - Auto Scan mode enables continuous monitoring of user-selected computers - Broadcast Mode sends commands from the console to administrator-selected computers – allowing you to perform operations (such as software installation, upgrades, shutdowns, etc.), on them simultaneously - Adapter ID - Firmware Upgradeable Package Contents - 1x KH2516A Cat 5 High-Density KVM Switch - 1x Firmware Upgrade Cable - 1x 1ADP-0004-002G Power Cord - 1x Rack Mount Kit - 1x Foot Pad Set (4 pcs.) - 1x User Instructions
Key Features
ATEN KH2516A. Maximum resolution: 1600 x 1200 pixels, Scan interval: 255 s. Product colour: Black, Housing material: Metal. Power consumption (typical): 9 W. Compliance certificates: RoHS. Width: 163.6 mm, Depth: 437.2 mm, Height: 44 mm
Frequently Asked Questions
Is this product genuine OEM?
Yes, this ATEN KH2516A KVM switch Black (DCP2945) is 100% genuine ATEN hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This ATEN KH2516A KVM switch Black includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the ATEN KH2516A KVM switch Black compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the DCP2945.
