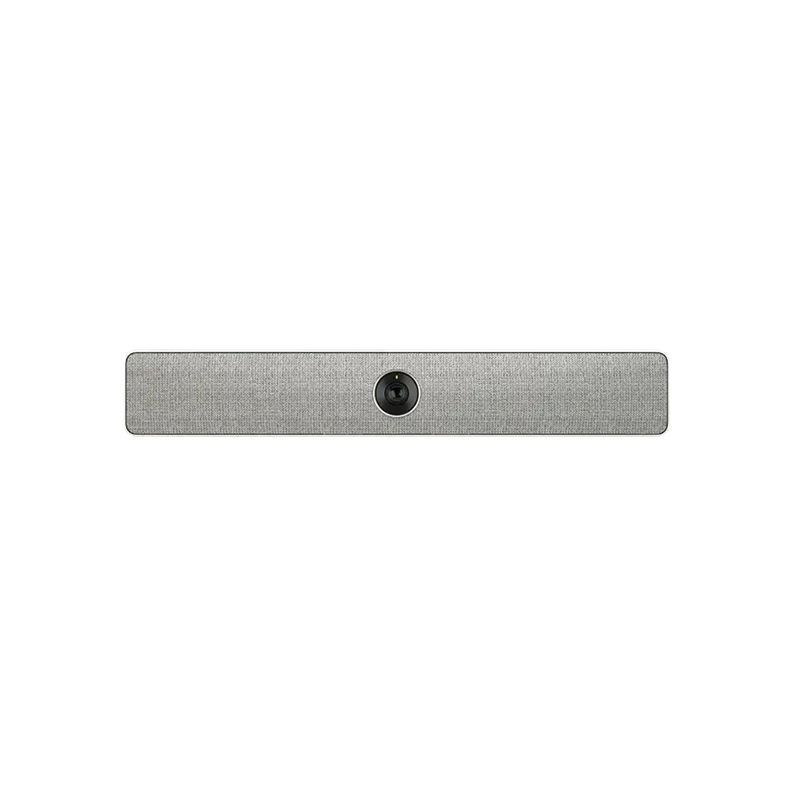

CS-KIT-MINI-K9, Cisco Webex Room Kit Mini, Video Conferencing Terminal, 4K Camera, HDMI Input, Integrated Microphone
SKU: CS-KIT-MINI-K9 · MPN: CS-KIT-MINI-K9 · Category: Components
Request for Quote
In Stock • 10 units
Cisco Webex Room Kit Mini – Upfront pricing (GPL)
Specifications
| Power | ● 100 to 240 VAC, 50/60 Hz, 12V DC input ● Average 20W, peak 70W ● Must be used with power supply FSP FSP070-AHAN2 or AcBel ADF019 |
|---|---|
| Bandwidth | ● Up to 6 Mbps point to point |
| MultiSite | ● H.239 (H.323) dual stream ● Binary Floor Control Protocol (BFCP) (SIP) dual stream ● Supports resolutions up to 3840 x 2160p5 |
| Protocols | ● H.323 ● SIP ● Cisco Webex |
| Dimensions | ● Width: 19.7 in. (50.0 cm) ● Height: 3.2 in. (8.1 cm) ● Depth: 3 in. (7.7 cm) ● Weight: 4 lb. (2 kg) Packaging size ● Width: 23.8 in. (60.5 cm) ● Height: 12.8 in. (32.6 cm) ● Depth: 8.5 in. (21.6 cm) ● Weight: 7 lb. (3.2 kg) |
| Dual stream | ● One HDMI input supports formats up to maximum 4K (3840 x 2160) at 30 fps, including HD1080p60 ● Consumer Electronics Control (CEC) 2.0 |
| Audio inputs | ● One audio in from HDMI ● Internal microphones ● Bluetooth ® - Not available on Non Radio Version * |
| Call control | ● Cisco Unified Communications Manager (Unified CM) ◦ Native registration with Unified CM ◦ Requires Unified CM Version 9.1(2) or later with device pack Room Kit Mini ● Cisco Expressway ◦ Native registration with Expressway ● Cisco Webex Service ● Third-party H.323 gatekeepers and standards-based SIP proxies |
| Video inputs | ● One HDMI input supports formats up to maximum 4K (3840 x 2160) at 30 fps, including HD1080p60 ● Consumer Electronics Control (CEC) 2.0 |
| Video outputs | ● 1 HDMI output supports formats up to 3840 x 2160p60 (4Kp60) ● Live video resolutions (encode and decode) up to 1920 x 1080p30 and p60 (HD1080p) ● Consumer Electronics Control (CEC) 2.0 |
| Audio features | ● High-quality 20 kHz audio ● Automatic Gain Control (AGC) ● Automatic noise reduction ● Active lip synchronization |
| Audio standards | ● G.711, G.722, G.722.1, G.729, AAC-LD, and Opus |
| Camera overview | ● 4K UltraHD camera ● Supports up to 30 fps ● 8 MP image sensor ● 1/2.5’’ CMOS ● 5x zoom ● f/1.4 aperture ● 120° horizontal field of view ● Auto framing (face detect) ● Best overview ● Auto brightness, and white balance ● Focus distance 1 m to infinity |
| USB passthrough | ● Ability to join any web conferencing service and share content using the camera, microphones and speakers of Room Kit Mini with a USB cable connected with the external monitor and an HDMI cable connected with the computer ● 720p video resolution |
| Video standards | ● H.264 |
| Other interfaces | ● 1 USB 2.0 port type A ● 1 USB 2.0 port type C ● 1 USB port ● Factory reset pinhole |
| Wireless sharing | ● Webex app (up to 3840 x 2160p5) ● Cisco Intelligent Proximity client (up to 1920 x 1080p5) ● Miracast (1080p30) – Not available on Non radio version |
| Security features | ● Management using HTTPS and SSH ● IP administration password ● Menu administration password ● Disable IP services ● Network settings protection ● Privacy cover |
| Firewall traversal | ● Cisco Expressway™ technology ● H.460.18, H.460.19 firewall traversal |
| Multipoint support | ● 4-way embedded SIP/H.323 conferencing capability with MultiSite option |
| Network interfaces | ● One Ethernet (RJ-45) 10/100/1000 for LAN ● One Ethernet (RJ-45) for Cisco Touch 10 direct pairing ● Wi-Fi 802.11a/b/g/n/ac 2.4 GHz/5 GHz - not available in non-radio versions Note: Due to compliance regulations, it is required that 802.11d is enabled in the access point for the product to operate properly within 5725 MHz – 5875 MHz. Using a Wi-Fi connection is a flexible option, however an Ethernet connection is always preferred for high performance. |
| Embedded encryption | ● H.323 and SIP point to point ● Standards-based: H.235 v3 and Advanced Encryption Standard (AES) ● Automatic key generation and exchange |
| IP network features | ● DNS lookup for service configuration ● Differentiated services (Quality of Service [QoS]) ● IP-adaptive bandwidth management (including flow control) ● Automatic gatekeeper discovery ● Dynamic playout and lip-sync buffering ● H.245 Dual-Tone Multifrequency (DTMF) tones in H.323 ● RFC 4733 DTMF tones in SIP ● Date and time support using Network Time Protocol (NTP) ● Media adaptation and resilience ● Uniform Resource Identifier (URI) dialing ● Dynamic Host Configuration Protocol (DHCP) ● 802.1X network authentication ● 802.1Q Virtual LAN ● 802.1p (QoS and Class of Service [CoS]) |
| IPv6 network support | ● Single call stack support for both H.323 and SIP ● Dual-stack IPv4 and IPv6 for DHCP, SSH, HTTP, HTTPS, DNS, DiffServ ● Support for both static and automatic IP configuration (stateless address auto configuration) |
| Warranty | 3-Year Warranty |
Key Features
- OEM Genuine Component verified by certified technicians.
- Clean serial number ready for service contract registration.
- Electrostatic Discharge (ESD) safe packaging.
- Supports hot-swapping for zero-downtime maintenance.
Frequently Asked Questions
Is this product genuine OEM?
Yes, this CS-KIT-MINI-K9, Cisco Webex Room Kit Mini, Video Conferencing Terminal, 4K Camera, HDMI Input, Integrated Microphone (CS-KIT-MINI-K9) is 100% genuine OEM hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This CS-KIT-MINI-K9, Cisco Webex Room Kit Mini, Video Conferencing Terminal, 4K Camera, HDMI Input, Integrated Microphone includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the CS-KIT-MINI-K9, Cisco Webex Room Kit Mini, Video Conferencing Terminal, 4K Camera, HDMI Input, Integrated Microphone compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the CS-KIT-MINI-K9.
