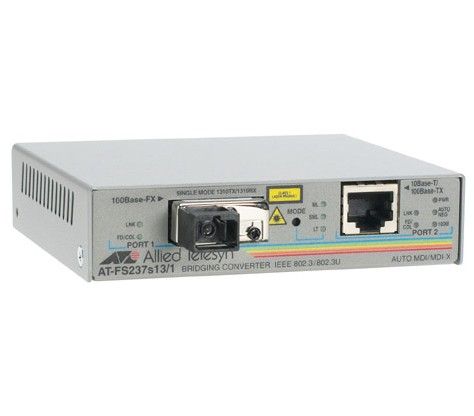

Allied Telesis 2-port Single Strand Fibre Media Converter network media converter 100 Mbit/s 1310 nm
Brand: Allied Telesis · SKU: AT-FS237S13/1 · MPN: AT-FS237S13/1 · Category: Components
Allied Telesis 2-port Single Strand Fibre Media Converter, 100 Mbit/s, 10Base-T, 100Base-TX, 1310 nm, IEEE 802.3, IEEE 802.3u, Wired, 24 W
Specifications
| Safety | UL60950 (cULus), EN60950, EN60825 (TUV) |
|---|---|
| Weight | 294 g |
| I/O ports | 1x RJ-45 1x SC |
| Interface | Fast Ethernet |
| Fiber type | SMF 9/125 micron |
| Wavelength | 1310 nm |
| LED indicators | Yes |
| MAC address table | 8000 entries |
| Cabling technology | 10Base-T, 100Base-TX |
| Dimensions (WxDxH) | 105 x 95 x 25 mm |
| Power requirements | 12V DC |
| Packet transfer speed | 148 880pps |
| Connectivity technology | Wired |
| Electromagnetic emissions | FCC Part 15 Class B, EN55022 Class B |
| Storage temperature (T-T) | -25 - 70 °C |
| Maximum data transfer rate | 100 Mbit/s |
| Operating temperature (T-T) | 0 - 40 °C |
| Power consumption (typical) | 24 W |
| Compliance industry standards | IEEE 802.3, IEEE 802.3u |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 90% |
| Warranty | 3-Year Warranty |
| Weight | 294 g |
Product Description
2 port single strand fibre media converter, 10/100TX (RJ45) to 100FX (SC), (1310nm TX/1310nm RX) with distances up to 15km Point-to-Point Access Designed to be used in pairs in a network topology to provide point-to-point access, the AT-FS237 media converter is a 10/100Mbps copper to single- mode fiber media converter capable of sending and receiving on single strand fiber (1310nm). The AT-FS237 converts 10/100TX (RJ-45) to 100FX (SC) and can extend distances up to 15km. Easy to install and requiring no software configuration, the compact, rack-mountable AT-FS237 comes with a choice of external power supplies. And, finally, both ports feature full- and half-duplex operation. Smart Missing Link (SML) The Missing Link feature allows the ports on the media converter to pass the Link status of their connections to each other. When the media converter detects a problem with a port—such as the loss of connection to a node—it shuts down the connection to the other port, thereby notifying the node that the connection has been lost. The ATFS237 also features Smart Missing Link™ (SML)— a feature that monitors network connections and provides notification when network segments fail, allowing network managers to quickly identify the source and location of failed segments and minimize downtime.
Key Features
Allied Telesis 2-port Single Strand Fibre Media Converter. Maximum data transfer rate: 100 Mbit/s, Cabling technology: 10Base-T, 100Base-TX. Wavelength: 1310 nm. Compliance industry standards: IEEE 802.3, IEEE 802.3u. Connectivity technology: Wired. Power consumption (typical): 24 W
Frequently Asked Questions
Is this product genuine OEM?
Yes, this Allied Telesis 2-port Single Strand Fibre Media Converter network media converter 100 Mbit/s 1310 nm (AT-FS237S13/1) is 100% genuine Allied Telesis hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This Allied Telesis 2-port Single Strand Fibre Media Converter network media converter 100 Mbit/s 1310 nm includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the Allied Telesis 2-port Single Strand Fibre Media Converter network media converter 100 Mbit/s 1310 nm compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AT-FS237S13/1.
