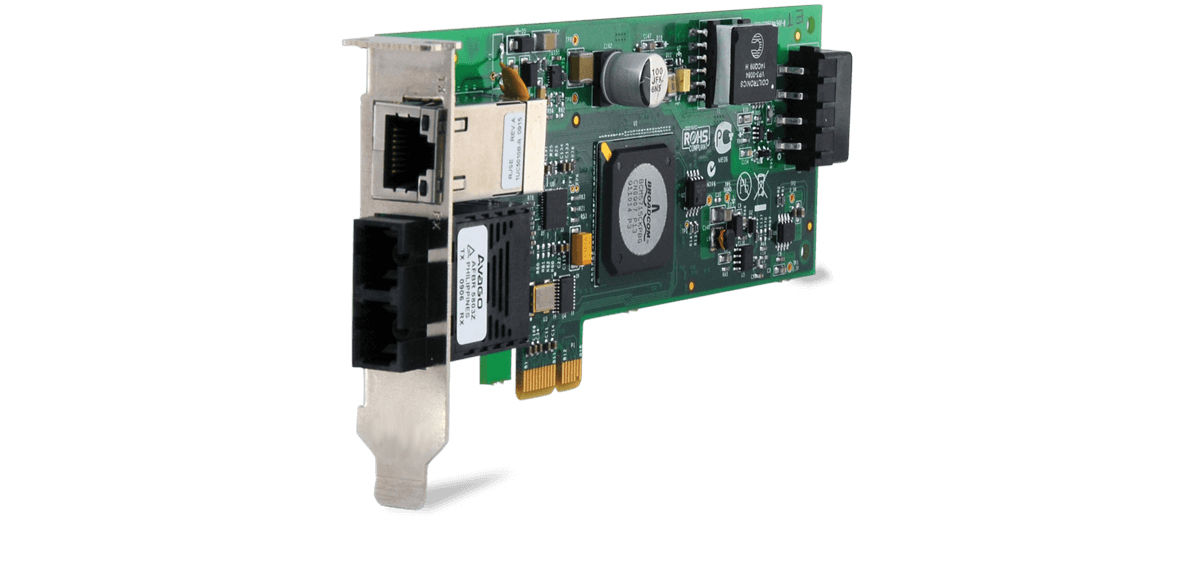

Allied Telesis 2716POE/FXSC Internal Ethernet / Fiber
Brand: Allied Telesis · SKU: AT-2716POE/FXSC-001 · MPN: AT-2716POE/FXSC-001 · Category: Components
Allied Telesis 2716POE/FXSC, Internal, Wired, PCI Express, Ethernet / Fiber, Green
Specifications
| Width | 140.9 mm |
|---|---|
| Height | 56 mm |
| Weight | 68 g |
| Internal | Yes |
| Interface | Ethernet / Fiber |
| Full duplex | Yes |
| PCI version | 2.0 |
| ACPI version | 1.1 |
| Certification | UL FCC/EN55022 Class A TUV EN55024 CE C-TICK VCCI |
| Host interface | PCI Express |
| LAN controller | Broadcom BCM5718 |
| LED indicators | Yes |
| Product colour | Green |
| Cabling technology | 10/100/1000BaseT(X) |
| Security algorithms | SNMP |
| Fiber ports quantity | 2 |
| Flow control support | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.2, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Fiber optic connector | SC, ST |
| Compliance certificates | RoHS |
| Connectivity technology | Wired |
| Storage temperature (T-T) | -25 - 70 °C |
| Ethernet LAN (RJ-45) ports | 1 |
| Operating temperature (T-T) | 0 - 40 °C |
| Warranty | 3-Year Warranty |
| Weight | 68 g |
| Dimensions | 140.9 mm x 56 mm |
Product Description
The Allied Telesis 2716POE/FX Series PoE Network Adapters enable a PC to power a VoIP phone or other traditional copper Powered Device (PD) over a secure fiber network. VoIP/PoE Flexibility The 2716POE/FX Series are two-port adapters with a 100FX multi-mode fiber port and a 10/100/1000T copper port capable of supporting Class 3 PoE devices. These unique products allow PoE devices, such as a VoIP phone, to be attached to a standard desktop and communicate downstream through a secured 100FX fiber link. The 2716POE/FX Series is unique in that it allows copper devices such as VoIP phones, Wi-Fi access points, and cameras to communicate through a secured fiber network—without the additional expense of media converters or a separate network to segment the traffic, thus saving installation and maintenance costs. AT-MUX Bridging of the fiber and copper interface is accomplished with installation of the Allied Telesis AT-MUX application. With AT-MUX, each interface can be prioritized and separated into VLANs, allowing segmentation of data and voice traffic onto a single fiber link. Advanced Manageability The priority queuing offered by the 2716POE/FX Series can help users set up the network, based on their own needs, providing easy prioritization of VOIP traffic. The comprehensive diagnostics and configuration software suite provides system administrators and engineers with a profound tool to analyze the interface card and check specific data. More Bandwidth with PCI-Express Interface The 2716POE/FX Series PCI-Express (PCIe x1) design offers the maximum possible bandwidth and bus efficiency while providing the benefits of low power consumption.
Key Features
Allied Telesis 2716POE/FXSC. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet / Fiber. Product colour: Green
