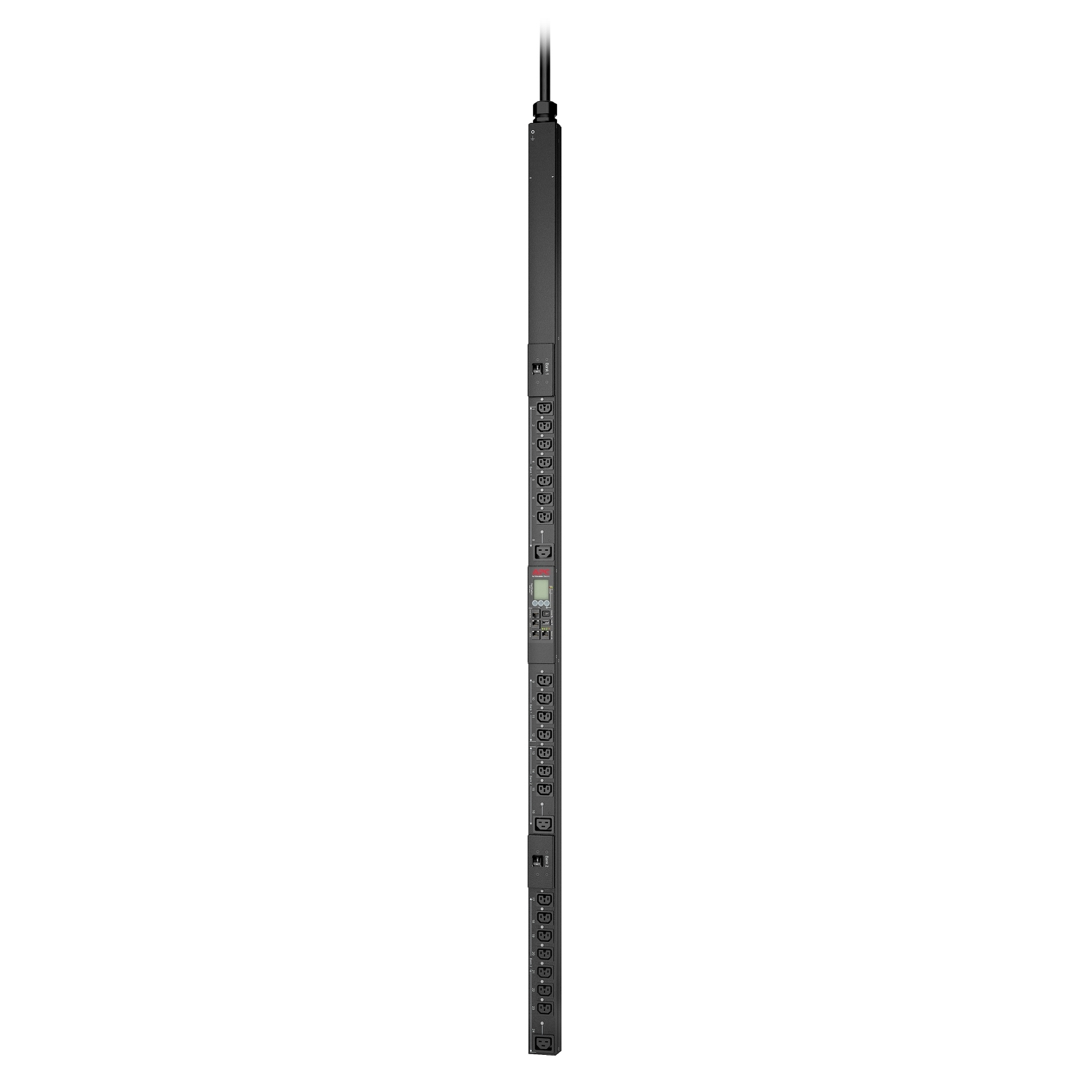

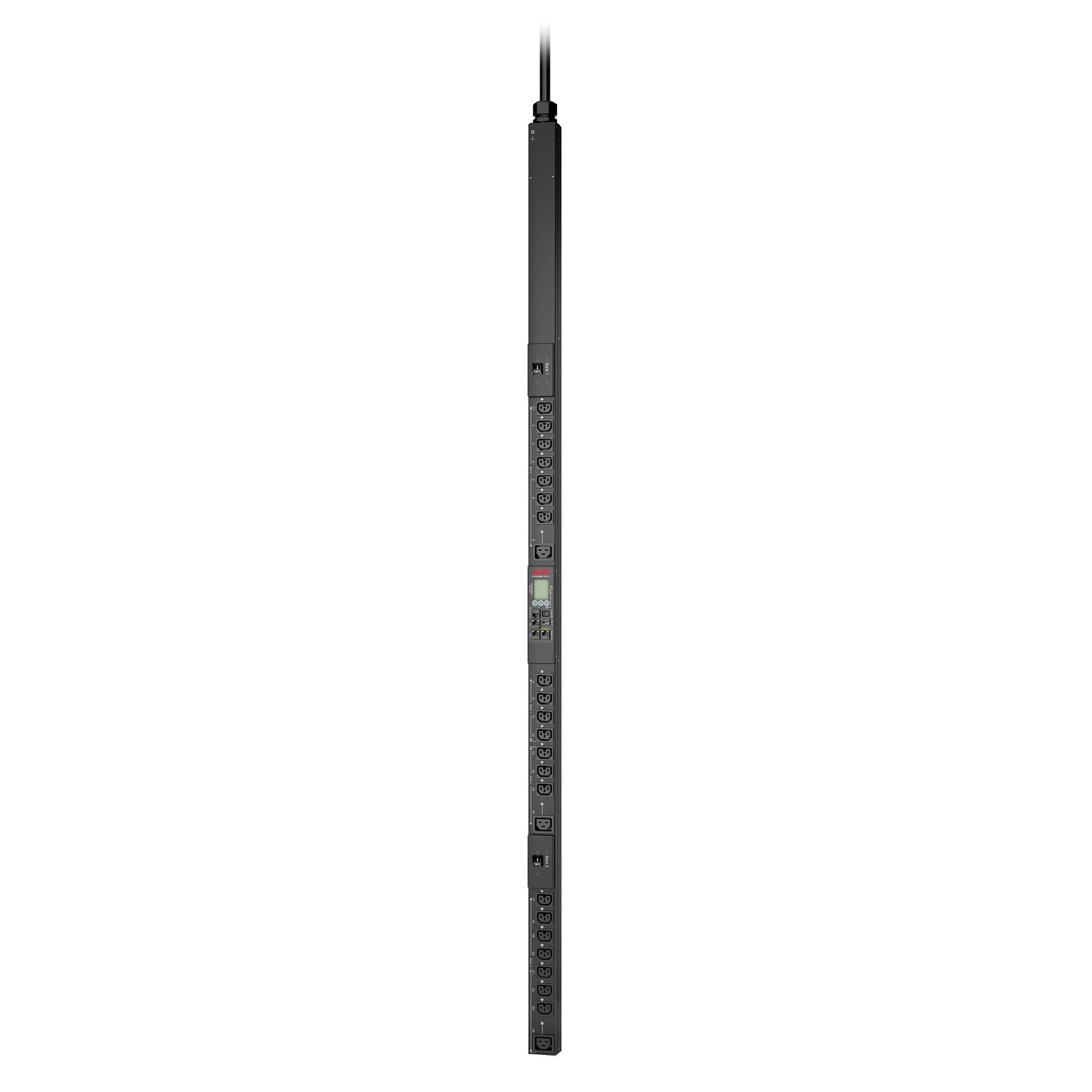

APC Rack PDU, 9000 switched, 0U, 30A, 200V and 208V, 21 C13 and C15, 3 C19 and C21 sockets
Brand: APC · SKU: APC-APDU9941 · MPN: Rack PDU, 9000 switched, 0U, 30A, 200V and 208V, 21 C13 and C15, 3 C19 and C21 sockets · Category: Data Center
APC Rack PDU, 9000 switched, 0U, 30A, 200V and 208V, 21 C13 and C15, 3 C19 and C21 sockets, Switched, 0U, Single-phase, Vertical, Black, 24 AC outlet(s)
Specifications
| Type | Single-phase |
|---|---|
| Depth | 46 mm |
| Width | 55 mm |
| Height | 1829 mm |
| Manual | Yes |
| Weight | 8.5 kg |
| Mounting | Vertical |
| PDU types | Switched |
| Power plug | NEMA L6-30P |
| Certification | CUL , FCC 15 A, ICES-003, PSE |
| Load capacity | 4992 VA |
| Package depth | 124 mm |
| Package width | 165 mm |
| Rack capacity | 0U |
| Package height | 2040 mm |
| Package weight | 10 kg |
| Product colour | Black |
| AC outlet types | C13 coupler, C15 coupler, C19 coupler, C21 coupler |
| Maximum current | 30 A |
| Operating altitude | 0 - 3048 m |
| AC outlets quantity | 24 AC outlet(s) |
| Nominal input voltage | 90 - 264 V |
| Nominal output voltage | 200 - 208 V |
| Non-operating altitude | 0 - 15240 m |
| Warranty | 3-Year Warranty |
| Weight | 8.5 kg |
| Dimensions | 55 mm x 46 mm x 1829 mm |
Product Description
The APC Switched Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles The APDU9941 offers advanced load management combined with remote on/off switching control of individual outlets for power cycling, delayed power sequencing, and outlet use management The 0U PDU includes a NEMA L6-30P input plug with 3 05m (10 ft) cord, (21) IEC 60320 C13/C15 and (3) IEC 60320 C19/C21 hybrid outlet receptacles The hybrid outlets allow 60°C operating temperature at full load, are compatible with standard C14 and C20 power cords, and are future-proofed for new C16 and C21 power cords required for higher temperature rated devices The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy The rack PDU integrates with EcoStruxure IT through Network Management Card and can be accessed, configured, and managed remotely via Web, SNMP and Command Line Interface Color user-interactive LCD interface details current, real power, voltage, and energy measurements for local user access The outlet level control allows power on/off functionality for power recycling/reboot of remote equipment and restricts unauthorized use of individual outlets The Switched Rack PDU includes a temperature/humidity sensor port, locking IEC outlets when used with locking power cords, low-profile circuit breakers and USB port for local Firmware updates The rack PDU supports daisy-chain of up to 32 PDUs on a single IP address, thereby reducing networking cost The rack PDU comes with a standard three-year warranty
Key Features
APC Rack PDU, 9000 switched, 0U, 30A, 200V and 208V, 21 C13 and C15, 3 C19 and C21 sockets. PDU types: Switched, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C15 coupler, C19 coupler, C21 coupler, Power plug: NEMA L6-30P. Nominal input voltage: 90 - 264 V, Maximum current: 30 A, Nominal output voltage: 200 - 208 V. Compliance certificates: RoHS, Certification: CUL , FCC 15 A, ICES-003, PSE. Width: 55 mm, Depth: 46 mm, Height: 1829 mm
Technical Deployment Advisory
Target Personnel
Spine-Leaf Architects
Infrastructure Fit
Core Aggregation Layer
"Scaling a Core Aggregation Layer requires hardware that ensures packet integrity; the APC APC-APDU9941 is design-optimized for this specific role in the network stack."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this APC Rack PDU, 9000 switched, 0U, 30A, 200V and 208V, 21 C13 and C15, 3 C19 and C21 sockets (APC-APDU9941) is 100% genuine APC hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This APC Rack PDU, 9000 switched, 0U, 30A, 200V and 208V, 21 C13 and C15, 3 C19 and C21 sockets includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the APC Rack PDU, 9000 switched, 0U, 30A, 200V and 208V, 21 C13 and C15, 3 C19 and C21 sockets compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the APC-APDU9941.
