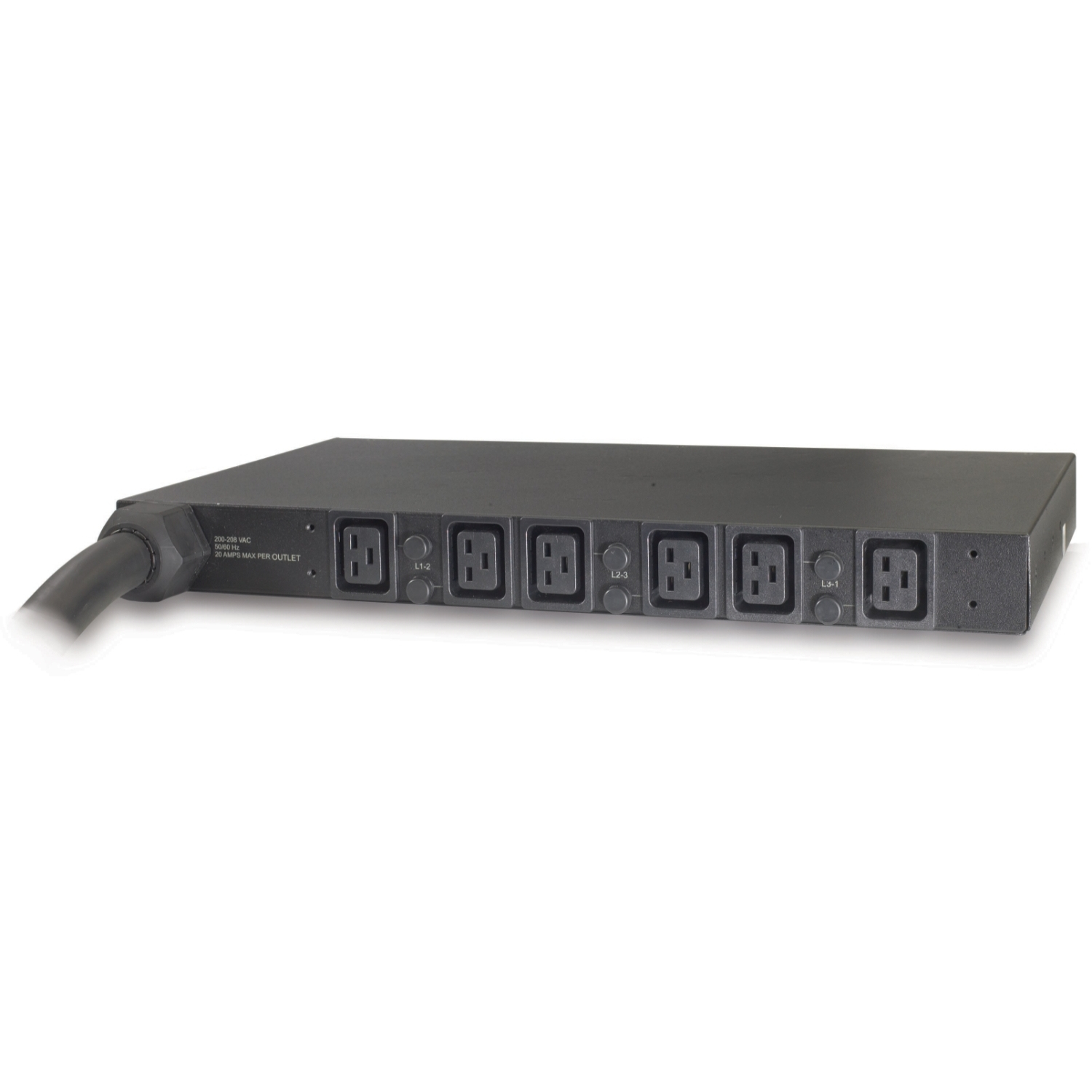

APC Rack PDU, Basic, 1U, 14.4kW, 208V, (6) C19
Brand: APC · SKU: APC-AP7516 · MPN: Rack PDU, Basic, 1U, 14.4kW, 208V, (6) C19 · Category: Data Center
APC Rack PDU, Basic, 1U, 14.4kW, 208V, (6) C19, Black, Hubbell CS8365C, (6) IEC 320 C19, 2.44 m, 208 V, 50 - 60 Hz
Specifications
| Depth | 254 mm |
|---|---|
| Width | 437 mm |
| Height | 44 mm |
| Weight | 7.98 kg |
| Cable length | 2.44 m |
| Product colour | Black |
| AC input frequency | 50 - 60 Hz |
| Output connections | (6) IEC 320 C19 |
| Input connection type | Hubbell CS8365C |
| Nominal input voltage | 208 V |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating temperature (T-T) | -5 - 45 °C |
| Maximum input current per phase | 50 A |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 5 - 95% |
| Maximum total current draw per phase | 40 A |
| Warranty | 3-Year Warranty |
| Weight | 7.98 kg |
| Dimensions | 437 mm x 254 mm x 44 mm |
Product Description
It is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 50A and operates at 200-208V. The PDU features 6 IEC 60320 C19 outlets and is equipped with a CS8365 input connector. It has an 8-foot (2.44 meters) power cord for flexible installation. The unit is designed to fit in a 1U rack space. It is compliant with RoHS and REACh regulations, ensuring it meets environmental standards.
Key Features
APC Rack PDU, Basic, 1U, 14.4kW, 208V, (6) C19. Product colour: Black. Input connection type: Hubbell CS8365C, Output connections: (6) IEC 320 C19. Cable length: 2.44 m. Nominal input voltage: 208 V, AC input frequency: 50 - 60 Hz, Maximum input current per phase: 50 A. Width: 437 mm, Depth: 254 mm, Height: 44 mm
Technical Deployment Advisory
Target Personnel
IT Infrastructure Managers
Infrastructure Fit
Production Workload Support
"The APC APC-AP7516 is a professional-grade solution for Production Workload Support. It meets the technical standards required by IT Infrastructure Managers in modern enterprise environments."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this APC Rack PDU, Basic, 1U, 14.4kW, 208V, (6) C19 (APC-AP7516) is 100% genuine APC hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This APC Rack PDU, Basic, 1U, 14.4kW, 208V, (6) C19 includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the APC Rack PDU, Basic, 1U, 14.4kW, 208V, (6) C19 compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the APC-AP7516.
