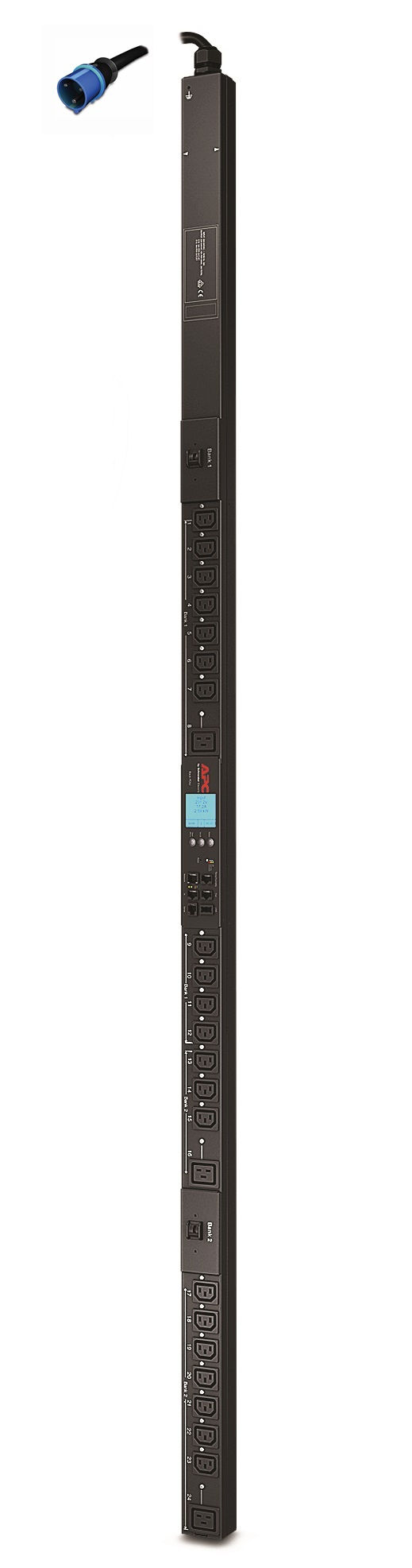

APC Rack PDU 2G, Switched, 32A, 230V, (21) C13 & (3) C19 (BEING DISCONTINUED, SEE APDU9953)
Brand: APC · SKU: AP8953 · MPN: Rack PDU 2G, Switched, 32A, 230V, (21) C13 & (3) C19 (BEING DISCONTINUED, SEE APDU9953) · Category: Data Center
APC Rack PDU 2G, Switched, 32A, 230V, (21) C13 & (3) C19 (BEING DISCONTINUED, SEE APDU9953), Metered, Switched, 0U, Single-phase, Vertical, Black, 24 AC outlet(s)
Specifications
| Type | Single-phase |
|---|---|
| Depth | 46 mm |
| Width | 56 mm |
| Height | 1829 mm |
| Weight | 7.59 kg |
| Mounting | Vertical |
| PDU types | Metered, Switched |
| Power plug | IEC309 |
| Cable length | 3.05 m |
| Package depth | 124 mm |
| Package width | 165 mm |
| Rack capacity | 0U |
| Package height | 2040 mm |
| Package weight | 9.95 kg |
| Product colour | Black |
| AC outlet types | C13 coupler, C19 coupler |
| AC input frequency | 50 - 60 Hz |
| Output connections | (21) IEC 320 C13, (3) IEC 320 C19 |
| AC outlets quantity | 24 AC outlet(s) |
| Input connection type | IEC 309 32A 2P+E |
| Storage temperature (T-T) | -5 - 45 °C |
| Operating temperature (T-T) | -25 - 65 °C |
| Maximum input current per phase | 32 A |
| Storage relative humidity (H-H) | 5 - 95% |
| Warranty | 3-Year Warranty |
| Weight | 7.59 kg |
| Dimensions | 56 mm x 46 mm x 1829 mm |
Product Description
APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. The output and input connections are (21) C13 & (3) C19, and the cable length is 3m. Remote outlet level controls allow power on/off functionality for power recycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and low profile circuit breakers. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.
Key Features
APC Rack PDU 2G, Switched, 32A, 230V, (21) C13 & (3) C19 (BEING DISCONTINUED, SEE APDU9953). PDU types: Metered, Switched, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC309. Cable length: 3.05 m. AC input frequency: 50 - 60 Hz, Maximum input current per phase: 32 A, Maximum total current draw per phase: 32 A. Width: 56 mm, Depth: 46 mm, Height: 1829 mm
Technical Deployment Advisory
Target Personnel
Spine-Leaf Architects
Infrastructure Fit
Core Aggregation Layer
"Spine-Leaf Architects should consider the AP8953 for Core Aggregation Layer where consistent throughput and robust connectivity are mandatory."
Frequently Asked Questions
Is this product genuine OEM?
Yes, this APC Rack PDU 2G, Switched, 32A, 230V, (21) C13 & (3) C19 (BEING DISCONTINUED, SEE APDU9953) (AP8953) is 100% genuine APC hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.
What warranty is included?
This APC Rack PDU 2G, Switched, 32A, 230V, (21) C13 & (3) C19 (BEING DISCONTINUED, SEE APDU9953) includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.
How long does shipping take?
We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.
Can I return this product?
Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.
Is the APC Rack PDU 2G, Switched, 32A, 230V, (21) C13 & (3) C19 (BEING DISCONTINUED, SEE APDU9953) compatible with my system?
Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the AP8953.
