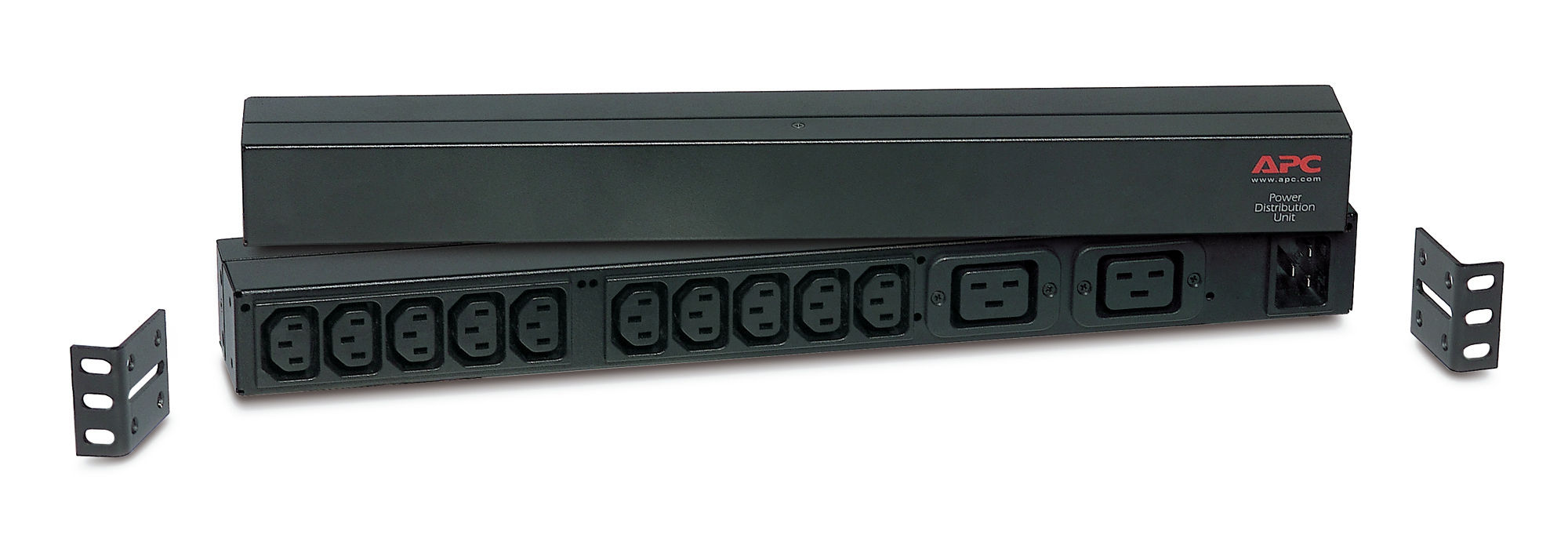

APC RACK PDU BASIC 1 U 16A 230V power distribution unit (PDU) 12 AC outlet(s) 0U/1U Black

Brand: APC · SKU: APC-AP9559 · MPN: RACK PDU BASIC 1 U 16A 230V · Category: Data Center

APC RACK PDU BASIC 1 U 16A 230V power distribution unit (PDU) 12 AC outlet(s) 0U/1U Black
Request for Quote
Backorder

APC RACK PDU BASIC 1 U 16A 230V, Basic, 0U/1U, Single-phase, Horizontal/Vertical, Black, 12 AC outlet(s)

View Data Center Products

Specifications

TypeSingle-phase
Depth57.2 mm
Width447 mm
Height44.5 mm
Weight980 g
MountingHorizontal/Vertical
I/O portsOutput Connections - (10)IEC 320 C13; (2)IEC 320 C19 Input Connection Type - IEC-320 C20
PDU typesBasic
Power plugC20 coupler
Cable length2.5 m
Load capacity3680 VA
Maximum power3680 W
Rack capacity0U/1U
Product colourBlack
AC outlet typesC13 coupler, C19 coupler
AC outlets quantity12 AC outlet(s)
Storage temperature (T-T)-25 - 65 °C
Operating temperature (T-T)0 - 45 °C
Maximum input current per phase16 A
Storage relative humidity (H-H)0 - 95%
Operating relative humidity (H-H)0 - 95%
Warranty3-Year Warranty
Weight980 g
Dimensions447 mm x 57.2 mm x 44.5 mm

Product Description

Description: APC Basic Rack PDU, Input : 120, 208, 230V , Input Connection Type : IEC-320 C20 , Cord Length : 8.2 feet ( 2.5 meters ) , Output : 120, 208, 230V , Output Connections : (10)IEC 320 C13, (2)IEC 320 C19 Features: 19 inch Rack-Mountable, Low Cost Power Distribution, Vertical Mounting Capabilities Includes: Cord Retention Clips, Rack Mounting Brackets, User Manual Output Voltage(s) (main only) - 120, 208, 230 V Maximum Total Current Draw per Phase - 16 A Output Connections - (10)IEC 320 C13; (2)IEC 320 C19 Always on Outlets - 12 Overload Protection Input: Nominal input voltage - 120, 208, 230 Input frequency (Hz) - 50/60 Hz Input Connection Type - IEC-320 C20 Cord Length 8.2 feet ( 2.5 meters ) Acceptable Input Voltage - 90-250 VAC Maximum Line Current per phase - 16.0 A Maximum Input Current per phase - 16.0 A Load Capacity - 3680

Key Features

APC RACK PDU BASIC 1 U 16A 230V. PDU types: Basic, Rack capacity: 0U/1U, Type: Single-phase. AC outlets quantity: 12 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler. Cable length: 2.5 m. Load capacity: 3680 VA, Maximum input current per phase: 16 A, Maximum power: 3680 W. Width: 447 mm, Depth: 57.2 mm, Height: 44.5 mm

Technical Deployment Advisory

Target Personnel

IT Infrastructure Managers

Infrastructure Fit

Production Workload Support

"The APC APC-AP9559 is a professional-grade solution for Production Workload Support. It meets the technical standards required by IT Infrastructure Managers in modern enterprise environments."

Frequently Asked Questions

Is this product genuine OEM?

Yes, this APC RACK PDU BASIC 1 U 16A 230V power distribution unit (PDU) 12 AC outlet(s) 0U/1U Black (APC-AP9559) is 100% genuine APC hardware. All our products are verified by certified technicians and come with clean serial numbers ready for service contract registration.

What warranty is included?

This APC RACK PDU BASIC 1 U 16A 230V power distribution unit (PDU) 12 AC outlet(s) 0U/1U Black includes our standard 3-Year Warranty covering all manufacturing defects. We also offer advanced replacement options for minimal downtime.

How long does shipping take?

We offer free ground shipping which typically takes 3-5 business days. Expedited shipping options are available at checkout for faster delivery.

Can I return this product?

Yes, we have a 30-day return policy on all products. Restocking fees may apply for opened items. Please see our return policy for complete details.

Is the APC RACK PDU BASIC 1 U 16A 230V power distribution unit (PDU) 12 AC outlet(s) 0U/1U Black compatible with my system?

Please check the specifications tab for detailed compatibility information. Our technical team is available to assist with compatibility questions for the APC-AP9559.
